Math Problem Statement

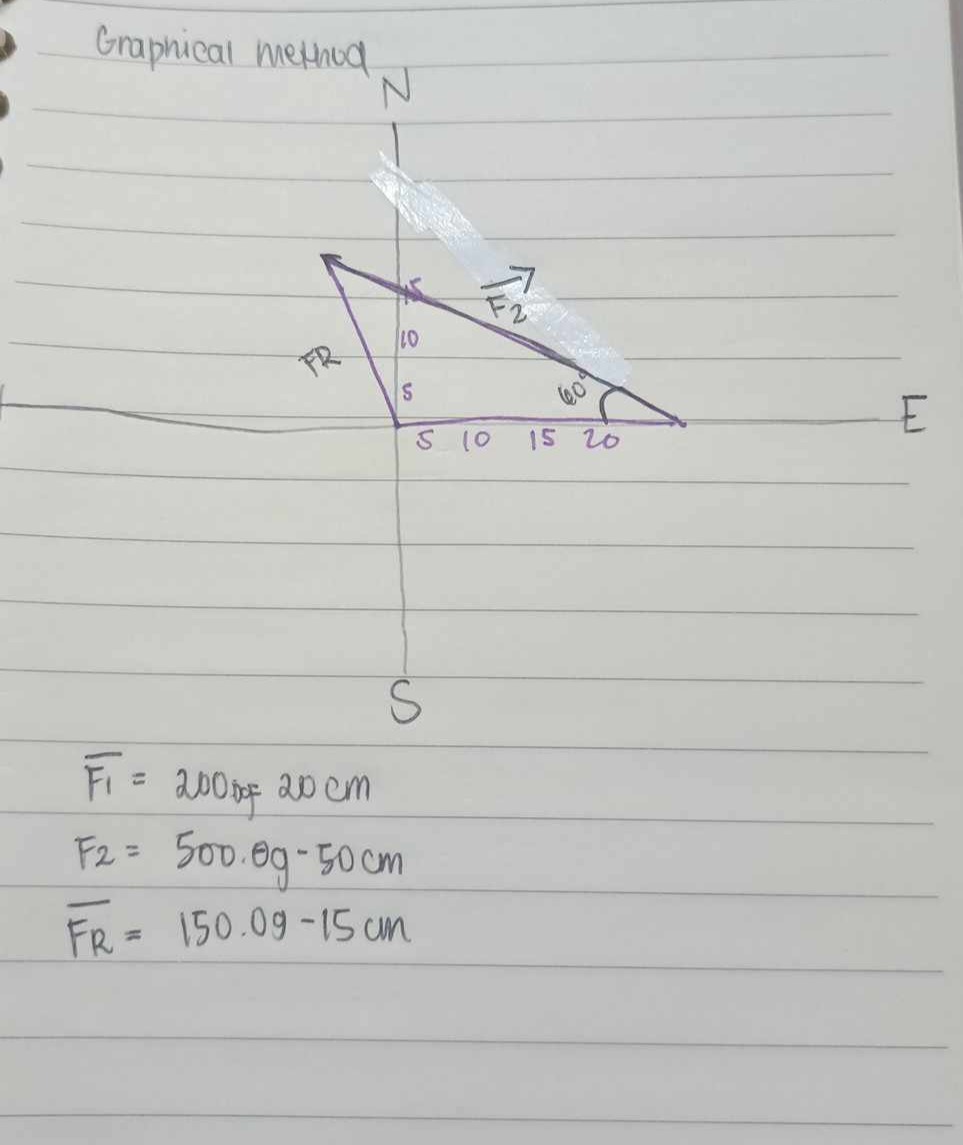

The user submitted an image showing a graphical method for vector addition with forces F1, F2, and FR. The forces are labeled with magnitudes and directions, with F1 pointing towards the northwest, F2 towards the east, and the resultant force FR is calculated using a graphical technique.

Solution

The image you've uploaded appears to depict a graphical method for vector addition, with forces F1F_1, F2F_2, and the resultant force FRF_R drawn on a grid, possibly representing the resolution of forces using graphical techniques. Here's what is shown:

  • Two forces, F1F_1 and F2F_2, are acting at angles, with F1F_1 pointing towards the north-west and F2F_2 towards the east.
  • The angles between the forces are marked: 60° between F2F_2 and the horizontal line (east direction), while F1F_1 seems to be aligned with the north-south axis.
  • The resultant force FRF_R is calculated and shown graphically as the diagonal of the triangle formed by the forces.
  • The magnitudes of the forces are written as:
    • F1=200gfor20cmF_1 = 200 \, \text{gf} \, \text{or} \, 20 \, \text{cm}
    • F2=500gfor50cmF_2 = 500 \, \text{gf} \, \text{or} \, 50 \, \text{cm}
    • FR=150gfor15cmF_R = 150 \, \text{gf} \, \text{or} \, 15 \, \text{cm}

This graphical method typically uses a scaled triangle where the forces are represented by arrows proportional to their magnitudes, and the angle between them determines the direction of the resultant force.

Would you like me to calculate the resultant force FRF_R using vector methods (analytically) or clarify further on the graphical solution?

Here are some follow-up questions for further understanding:

  1. What is the scale used for converting between force and length (cm)?
  2. Would you like to confirm the resultant force graphically or by calculation?
  3. Are the angles given correctly relative to the cardinal directions?
  4. Should I explain how to solve the vector problem using trigonometry?
  5. Would you like a step-by-step breakdown of the vector addition process?

Tip: When working with vector addition, graphical methods are a great way to visualize force interactions, but trigonometric methods provide more precision.
