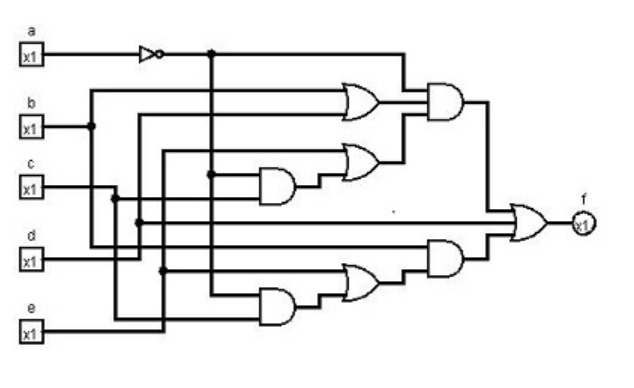

The provided image shows a logic circuit consisting of various logic gates. To identify the Boolean expression, we need to interpret the gates and connections step-by-step.

Steps to derive the Boolean expression:

1. Inputs:

   • $a, b, c, d, e$ are the inputs to the circuit.
   • Input $a$ goes through a NOT gate, producing $\overline{a}$.

2. First Layer of Gates:

   • The first layer has two AND gates and one OR gate.
     • The first AND gate has inputs $\overline{a}$ and $b$, so its output is $\overline{a}b$.
     • The second AND gate has inputs $c$ and $d$, so its output is $cd$.
     • The OR gate has inputs $b$ and $e$, so its output is $b + e$.

3. Second Layer of Gates:

   • There are two gates:
     • One AND gate that takes inputs $\overline{a}b$ and $cd$, so its output is $(\overline{a}b)(cd)$.
     • One OR gate that takes the outputs of the first AND gate and the OR gate from the first layer, i.e., inputs $\overline{a}b$ and $b + e$, so the output is $\overline{a}b + (b + e)$.

4. Final Layer:

   • The final OR gate takes the outputs of the second layer:
     • One input is $(\overline{a}b)(cd)$.
     • The second input is $\overline{a}b + (b + e)$.
   • The output is the final Boolean expression: $f = (\overline{a}b)(cd) + (\overline{a}b + (b + e))$

Thus, the Boolean expression that represents this circuit is: $f = (\overline{a}b)(cd) + (\overline{a}b + (b + e))$

Would you like further details or explanation of any part of the process? Here are some related questions for deeper exploration:

1. How does De Morgan's law apply to simplifying Boolean expressions?
2. Can the given Boolean expression be further simplified?
3. What is the role of the NOT gate in this circuit?
4. How does the circuit behave if $a = 0$?
5. What happens to the output if we change one of the inputs, say $b$, to its complement?

Tip: When analyzing logic circuits, always start by identifying the gates and then follow the logic step by step from inputs to outputs.
