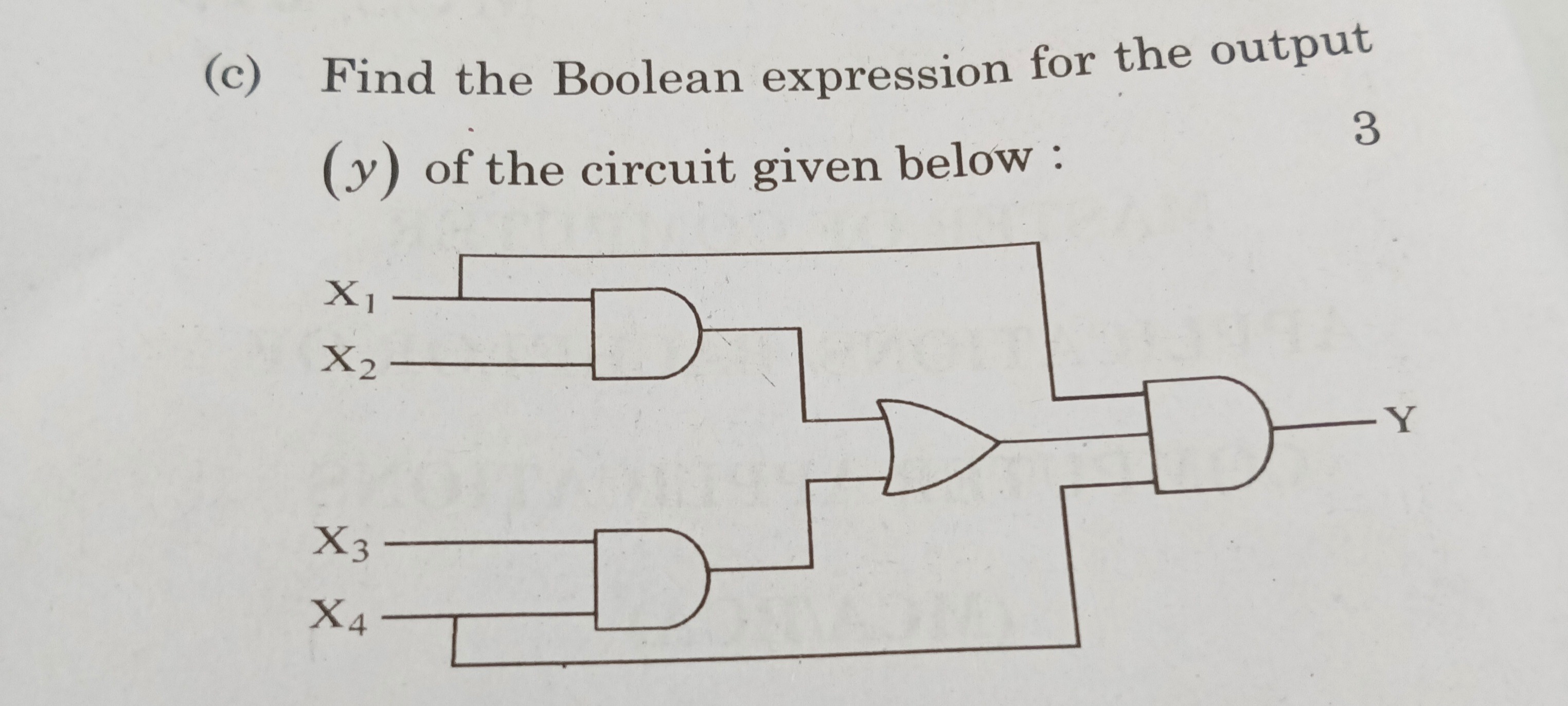

Let's analyze the circuit and determine the Boolean expression step by step:

1. AND Gates:

   • The top AND gate receives inputs $X_1$ and $X_2$. Its output will be $X_1 \cdot X_2$.
   • The bottom AND gate receives inputs $X_3$ and $X_4$. Its output will be $X_3 \cdot X_4$.

2. OR Gate:

   • The outputs of the two AND gates ($X_1 \cdot X_2$ and $X_3 \cdot X_4$) serve as inputs to the OR gate. The output of the OR gate will be: $(X_1 \cdot X_2) + (X_3 \cdot X_4)$

3. Final AND Gate:

   • The output of the OR gate is one input to the final AND gate, while the second input to this gate comes directly from $X_1$.
   • The output of the final AND gate is: $Y = X_1 \cdot \big((X_1 \cdot X_2) + (X_3 \cdot X_4)\big)$

4. Simplification (if needed):

   • Expanding the expression: $Y = (X_1 \cdot X_1 \cdot X_2) + (X_1 \cdot X_3 \cdot X_4)$
   • Simplify $X_1 \cdot X_1$ to $X_1$: $Y = (X_1 \cdot X_2) + (X_1 \cdot X_3 \cdot X_4)$

Thus, the final Boolean expression for $Y$ is: $Y = (X_1 \cdot X_2) + (X_1 \cdot X_3 \cdot X_4)$

Would you like a detailed explanation for any part of the derivation?
