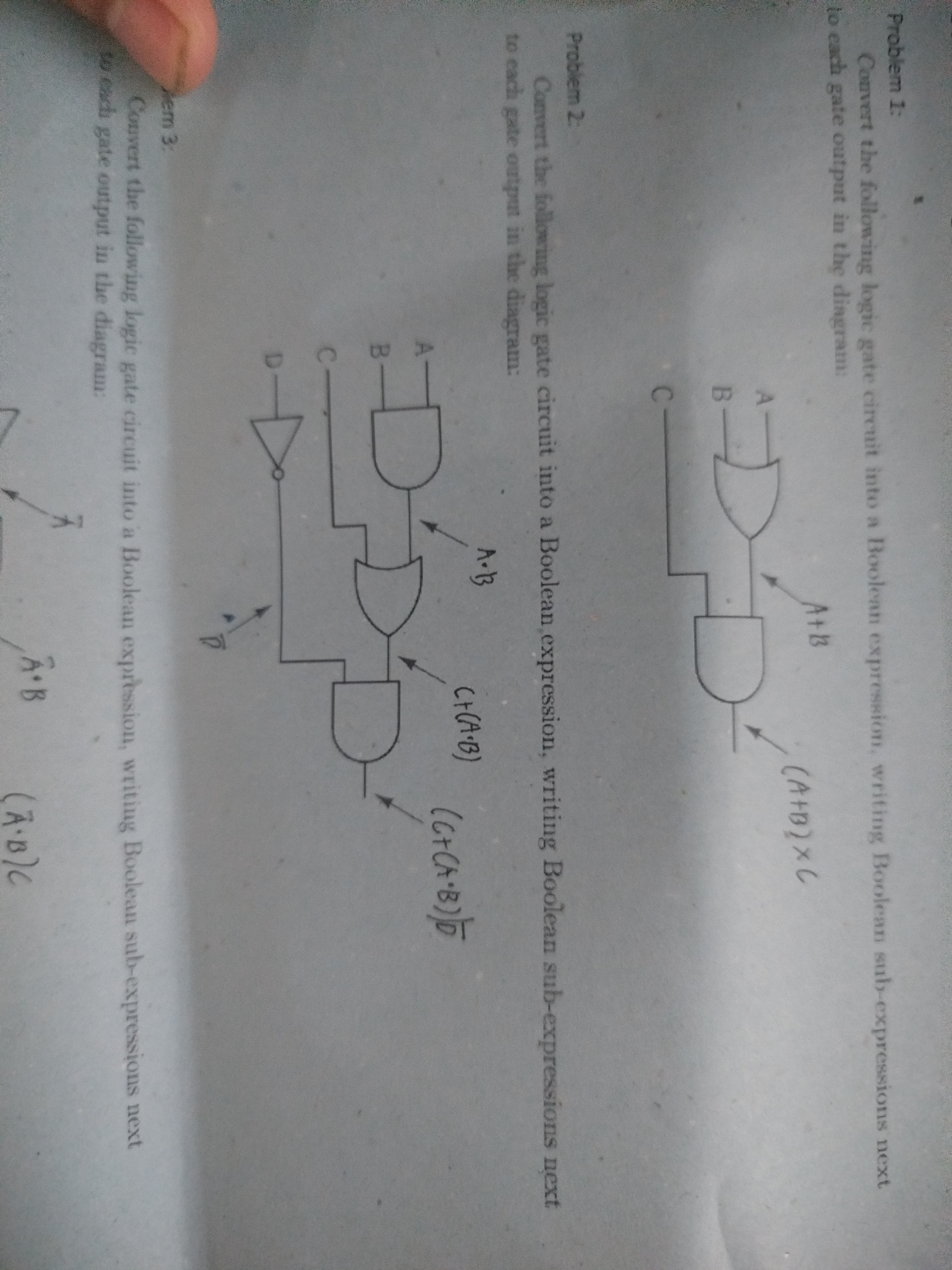

The image contains logic circuits that need to be converted into Boolean expressions. I will break down each problem in the image and convert the logic gates into corresponding Boolean expressions step by step.

Problem 2 (on the right side):

1. Inputs and Gates:

   • Inputs: $A, B, C$
   • AND gate takes inputs $A$ and $B$, output = $AB$.
   • OR gate takes the output of the AND gate ($AB$) and $C$, output = $(AB) + C$.

   Boolean expression: $(AB) + C$

Problem 3 (on the left side):

1. Inputs and Gates:

   • Inputs: $A, B, C, D$
   • First NOT gate: Input $D$, output = $\overline{D}$.
   • First AND gate: Inputs $\overline{D}$ and $C$, output = $\overline{D}C$.
   • Second AND gate: Inputs $A$ and $B$, output = $AB$.
   • OR gate: Inputs $\overline{D}C$ and $AB$, output = $(\overline{D}C) + (AB)$.

   Boolean expression: $(\overline{D}C) + (AB)$

Would you like detailed explanations of each step or more examples?
