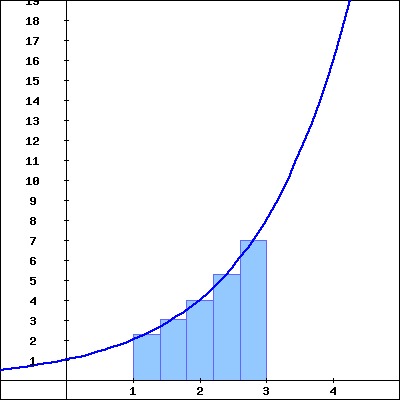

This image appears to show a graph of an exponential function, with rectangular bars underneath part of the curve. The bars suggest a Riemann sum, which is commonly used in calculus to approximate the area under a curve.

Here's an analysis of the image:

1. Function Curve: The blue curve resembles an exponential function, possibly $y = e^x$ or similar, as it grows rapidly as $x$ increases.
2. Interval and Riemann Sum: The rectangles appear to be set up from $x = 1$ to $x = 3$, possibly using a left or right Riemann sum to approximate the area under the curve. The height of each rectangle corresponds to the function’s value at a particular point within each interval.
3. Approximation of Area: The sum of the areas of these rectangles approximates the integral of the function over the interval $[1, 3]$.

If you are interested in calculating the approximate area, further details such as the function equation and whether it’s a left, right, or midpoint Riemann sum are needed.

Would you like assistance in calculating this approximation or analyzing the function further?

Here are some follow-up questions that could deepen understanding:

1. What is the specific function of the curve shown?
2. Are these rectangles representing a left, right, or midpoint Riemann sum?
3. How many subdivisions are being used for the Riemann sum approximation?
4. Would you like to compare this Riemann sum with the actual integral of the function?
5. Do you need help with setting up similar problems or understanding Riemann sums?

Tip: Riemann sums are a great way to understand the concept of integration. By increasing the number of rectangles (subdivisions), the approximation becomes closer to the true area under the curve.
