Math Problem Statement

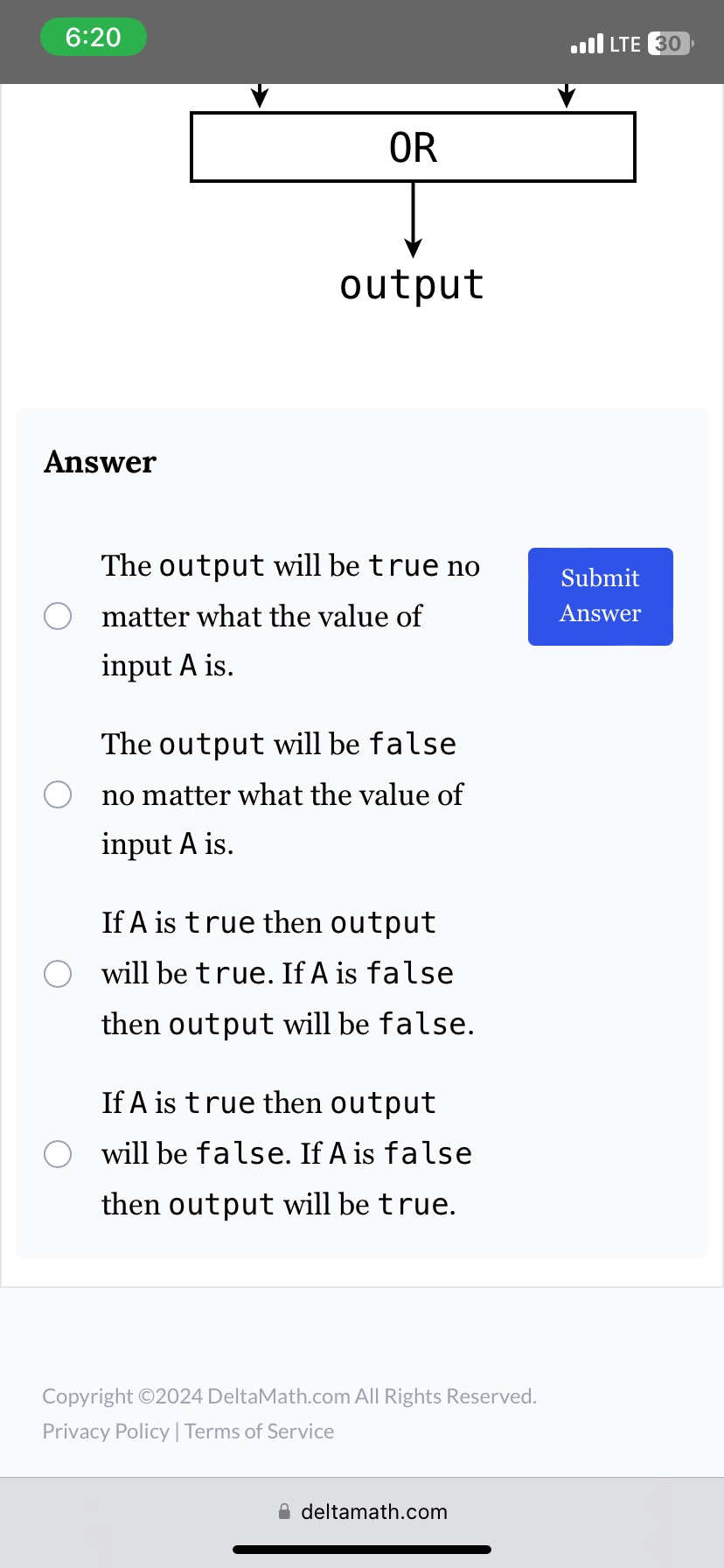

Based on the OR gate logic diagram, select the correct behavior of the output based on input A.

Solution

The image displays a logic gate diagram and a set of possible answers about its behavior. The gate shown is an "OR" gate, which follows these truth table rules:

  • If any input is true, the output will be true.
  • The output will only be false if both inputs are false.

Given this, let's examine the provided options:

  1. "The output will be true no matter what the value of input A is."

    • This is incorrect because the output will depend on both inputs, not just A.
  2. "The output will be false no matter what the value of input A is."

    • This is also incorrect, as an OR gate produces a false output only if all inputs are false.
  3. "If A is true, then the output will be true. If A is false, then the output will be false."

    • This is not true for an OR gate, since the other input can affect the output.
  4. "If A is true, then the output will be false. If A is false, then the output will be true."

    • This is incorrect and contradicts the OR gate logic.

Thus, the most likely correct answer is:

  • "If A is true then output will be true. If A is false then output will be false," but this applies if the other input is false. This option does not account for the fact that another input could still make the output true. The most suitable answer for an OR gate behavior is missing from these.

Would you like further details on OR gate logic or help understanding why certain answers are not fully correct?


5 related questions:

  1. What is the complete truth table for an OR gate?
  2. How does an AND gate differ from an OR gate?
  3. Can you explain how OR gates are used in digital circuits?
  4. How would the behavior change if this were an XOR gate instead of OR?
  5. What happens when both inputs to an OR gate are true?

Tip: Always remember that an OR gate produces a true output unless all inputs are false.
