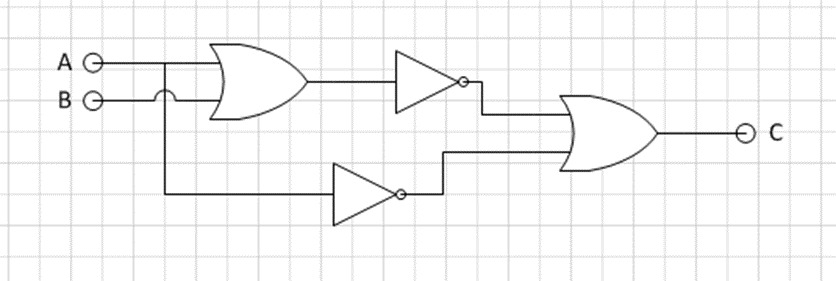

The given logic circuit contains a combination of logic gates, including OR gates, NOT gates (inverters), and potentially AND gates based on the structure. Let's break it down step by step to derive the Boolean equation.

Step-by-step Analysis:

1. Inputs:

   • The inputs are labeled as $A$ and $B$.

2. First OR Gate:

   • The first gate is an OR gate with inputs $A$ and $B$.
   • The output of this OR gate is $A + B$ (using Boolean OR logic).

3. Inverter 1 (NOT Gate):

   • The output of the first OR gate $(A + B)$ is passed through a NOT gate.
   • The output of this NOT gate is $\overline{A + B}$.

4. Inverter 2 (NOT Gate):

   • The input $B$ is also passed through a separate NOT gate.
   • The output of this NOT gate is $\overline{B}$.

5. Second OR Gate:

   • The final gate is an OR gate, which has two inputs:
     1. $\overline{A + B}$ from the first NOT gate.
     2. $\overline{B}$ from the second NOT gate.
   • The output of this OR gate is $\overline{A + B} + \overline{B}$.

Final Boolean Equation:

The Boolean equation for the circuit is:

$C = \overline{A + B} + \overline{B}$

This equation represents the logical output $C$ as a function of the inputs $A$ and $B$.

Would you like a more detailed breakdown, or do you have any questions about this solution?

Here are 5 related questions to deepen your understanding:

1. What is De Morgan's Law and how does it apply to simplifying Boolean expressions?
2. How would the circuit behave if we changed one of the NOT gates to an AND gate?
3. Can you create the truth table for this circuit and its Boolean expression?
4. What is the significance of using inverters (NOT gates) in logic circuits?
5. How can we simplify the Boolean expression $\overline{A + B} + \overline{B}$ using Boolean algebra?

Tip: When analyzing complex circuits, breaking the circuit down gate by gate and labeling intermediate steps can help simplify the process.
