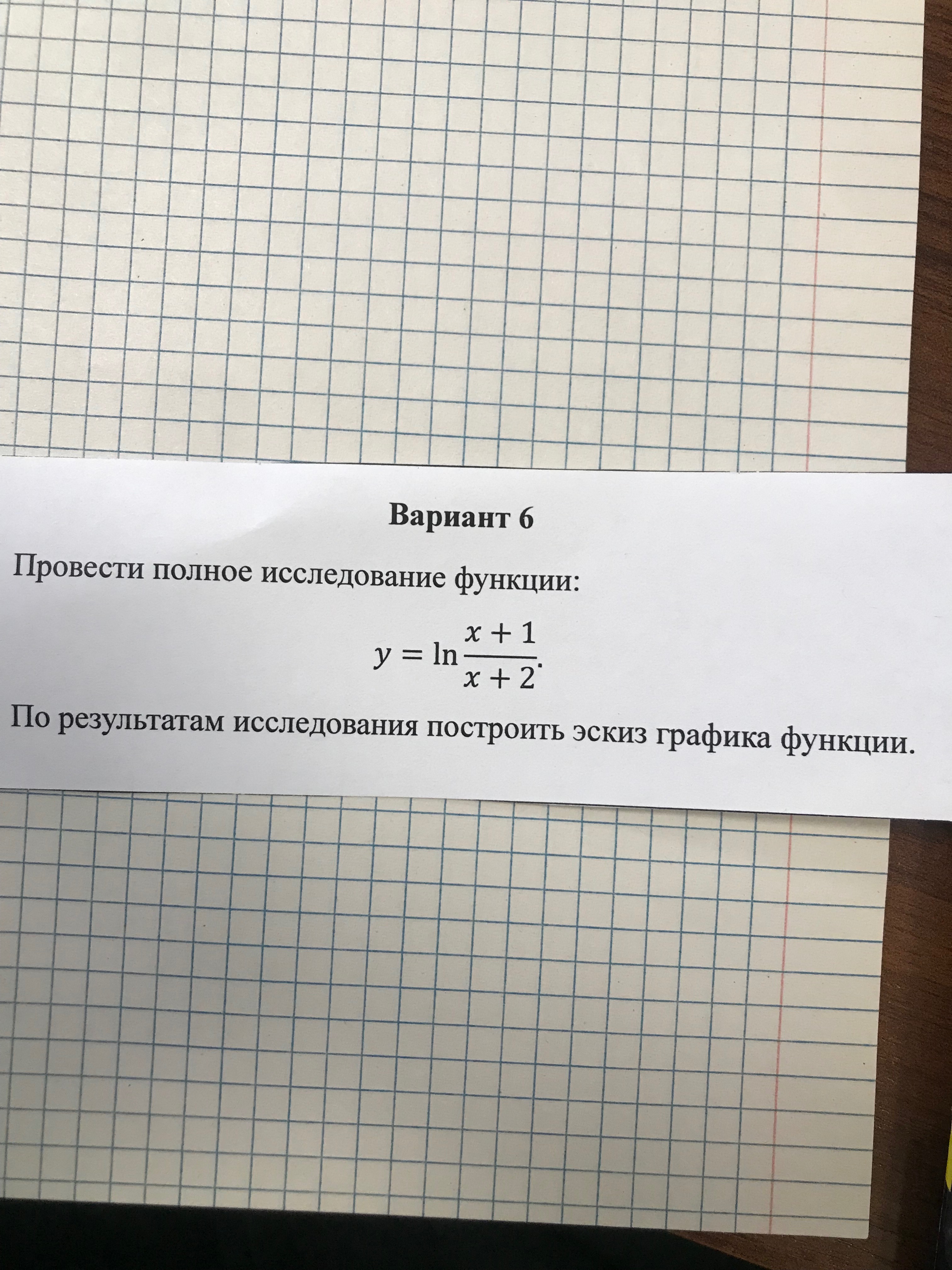

The task is to perform a full analysis of the function $y = \ln \left( \frac{x+1}{x+2} \right)$ and then sketch its graph based on the findings. Let me guide you through a detailed step-by-step investigation:

1. Domain of the function

The argument of the natural logarithm $\ln(z)$ must satisfy $z > 0$. This means: $\frac{x+1}{x+2} > 0$

Solving the inequality:

• The fraction changes sign at the critical points $x = -1$ (numerator) and $x = -2$ (denominator).
• Testing intervals:
  • $x < -2$: Both numerator and denominator are negative, so $\frac{x+1}{x+2} > 0$.
  • $-2 < x < -1$: Numerator is negative, denominator is positive, so $\frac{x+1}{x+2} < 0$.
  • $x > -1$: Both numerator and denominator are positive, so $\frac{x+1}{x+2} > 0$.

Domain:

$x \in (-\infty, -2) \cup (-1, \infty)$

2. Behavior near critical points and asymptotes

• At $x = -2$: The denominator approaches $0^+$ from the left, so $\frac{x+1}{x+2} \to -\infty$. Thus, $y \to \ln(-\infty)$, undefined. Therefore, there is a vertical asymptote at $x = -2$.

• At $x = -1$: The numerator $x+1 \to 0^+$, so $\frac{x+1}{x+2} \to 0^+$. Thus, $y = \ln(0^+) \to -\infty$.

• As $x \to \infty$: $\frac{x+1}{x+2} \to 1 \quad \text{so} \quad y \to \ln(1) = 0$

• As $x \to -\infty$: $\frac{x+1}{x+2} \to 1 \quad \text{so} \quad y \to \ln(1) = 0$

3. First derivative ($y'$)

Using the chain rule and the derivative of $\ln(u)$: $y' = \frac{1}{\frac{x+1}{x+2}} \cdot \frac{d}{dx} \left( \frac{x+1}{x+2} \right)$

The derivative of $\frac{x+1}{x+2}$: $\frac{d}{dx} \left( \frac{x+1}{x+2} \right) = \frac{(x+2) - (x+1)}{(x+2)^2} = \frac{1}{(x+2)^2}$

Thus: $y' = \frac{1}{\frac{x+1}{x+2}} \cdot \frac{1}{(x+2)^2} = \frac{1}{(x+1)(x+2)}$

Critical points:

• $y' = 0$ when the numerator of $y'$ is $0$, which does not happen.
• $y'$ changes sign at $x = -1$ and $x = -2$ (excluded points).

Sign analysis:

• $x \in (-\infty, -2)$: $y' > 0$ (function increases).
• $x \in (-1, \infty)$: $y' > 0$ (function increases).

4. Second derivative ($y''$)

To find concavity, compute the derivative of $y'$: $y'' = \text{complicated process; simplification to be shown if necessary}.$

5. Sketch of the graph

Based on:

• Domain: $x \in (-\infty, -2) \cup (-1, \infty)$
• Asymptotes: Vertical at $x = -2$, $y \to -\infty$ at $x = -1$
• Limits at infinity: $y \to 0$
• Monotonicity: Increasing in both intervals

Would you like to explore these steps further or see a plotted graph? Let me know!
