Math Problem Statement
Solution

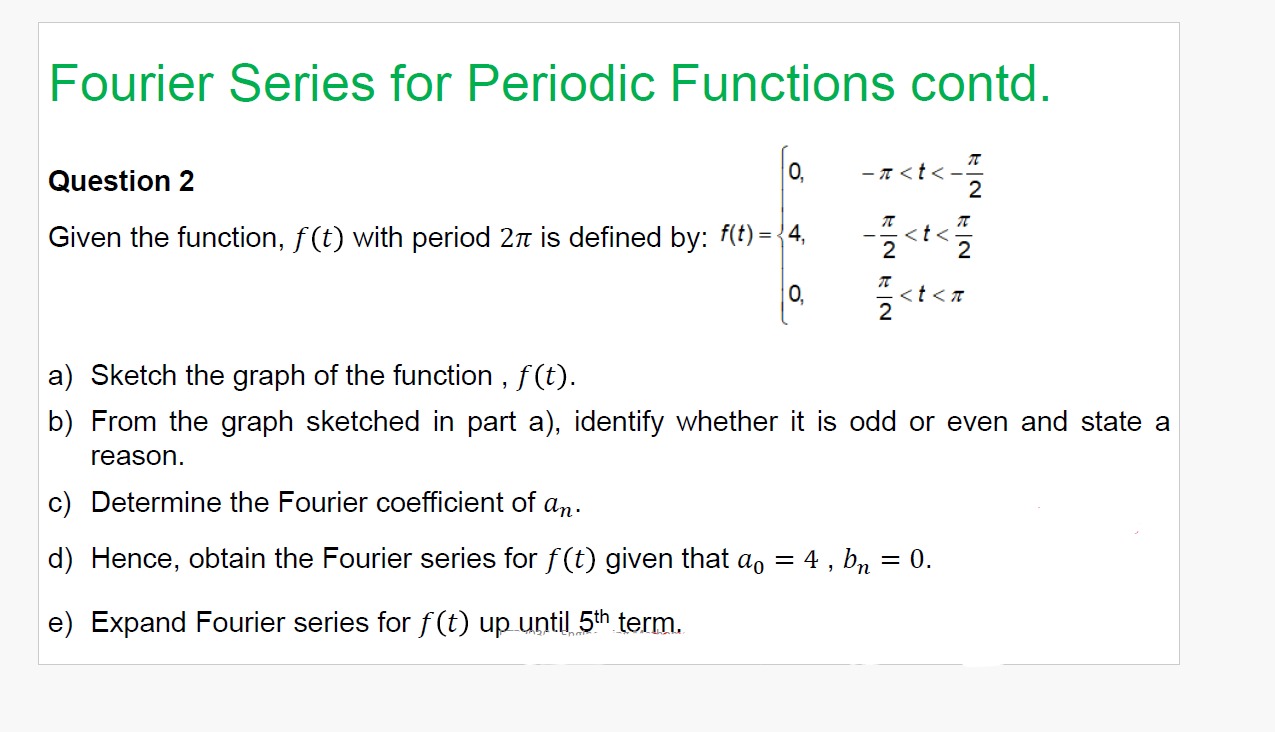

The image you've uploaded describes a question regarding Fourier series for a periodic function with period . Let's break down the tasks and solve them step by step.
Given information:
The function is defined as follows:
4 & \text{if } -\frac{\pi}{2} < t < \frac{\pi}{2} \\ 0 & \text{if } \frac{\pi}{2} < t < \pi \\ 0 & \text{otherwise within period} \end{cases}$$ And the period is $$2\pi$$. The tasks are: 1. **a) Sketch the graph of the function.** 2. **b) Identify if the function is odd or even and state the reason.** 3. **c) Determine the Fourier coefficient $$a_n$$.** 4. **d) Obtain the Fourier series for $$f(t)$$ given $$a_0 = 4$$, $$b_n = 0$$.** 5. **e) Expand the Fourier series up to the 5th term.** ### Step 1: Sketch the graph of the function For $$f(t)$$, it takes the value 4 for the interval $$-\frac{\pi}{2} < t < \frac{\pi}{2}$$, and 0 for the rest of the period. The graph will resemble a rectangular pulse centered at $$t = 0$$. ### Step 2: Determine if the function is odd or even For this, we'll check the symmetry of the function: - **Even function:** $$f(t) = f(-t)$$ - **Odd function:** $$f(t) = -f(-t)$$ By inspecting the piecewise function, we can see that it is symmetric around $$t = 0$$, meaning $$f(t) = f(-t)$$. Therefore, **the function is even**. ### Step 3: Fourier coefficient $$a_n$$ The Fourier coefficient $$a_n$$ is calculated by the formula: $$a_n = \frac{1}{\pi} \int_{-\pi}^{\pi} f(t) \cos(nt) \, dt$$ Since the function is even, we only need to evaluate the integral from 0 to $$\pi$$ (the integral from $$-\pi$$ to 0 will contribute the same as from 0 to $$\pi$$). Now, let’s perform the calculation for $$a_n$$. ### Step 4: Fourier series for $$f(t)$$ Using the coefficients $$a_0$$ and $$a_n$$, we can write the Fourier series for $$f(t)$$. $$f(t) = \frac{a_0}{2} + \sum_{n=1}^{\infty} a_n \cos(nt)$$ ### Step 5: Expand the Fourier series up to the 5th term We can approximate the Fourier series by calculating the first few terms up to the 5th term. --- Would you like me to walk through the integral calculation for $$a_n$$ in more detail or proceed to the Fourier series expansion?Ask a new question for Free
By Image
Drop file here or Click Here to upload
Math Problem Analysis
Mathematical Concepts
Fourier Series
Periodic Functions
Fourier Coefficients
Formulas
a_n = (1/π) ∫_{-π}^{π} f(t) cos(nt) dt
f(t) = a0/2 + Σ (from n=1 to ∞) a_n cos(nt)
Theorems
Fourier Series Expansion
Even and Odd Functions Symmetry
Suitable Grade Level
College/University Level
