Math Problem Statement

If a vector r forms angles with measures (0°, 90°, 60°) with the positive axes x, y, and z respectively, and if the magnitude of r is ||r|| = √40, find the vector r.

Solution

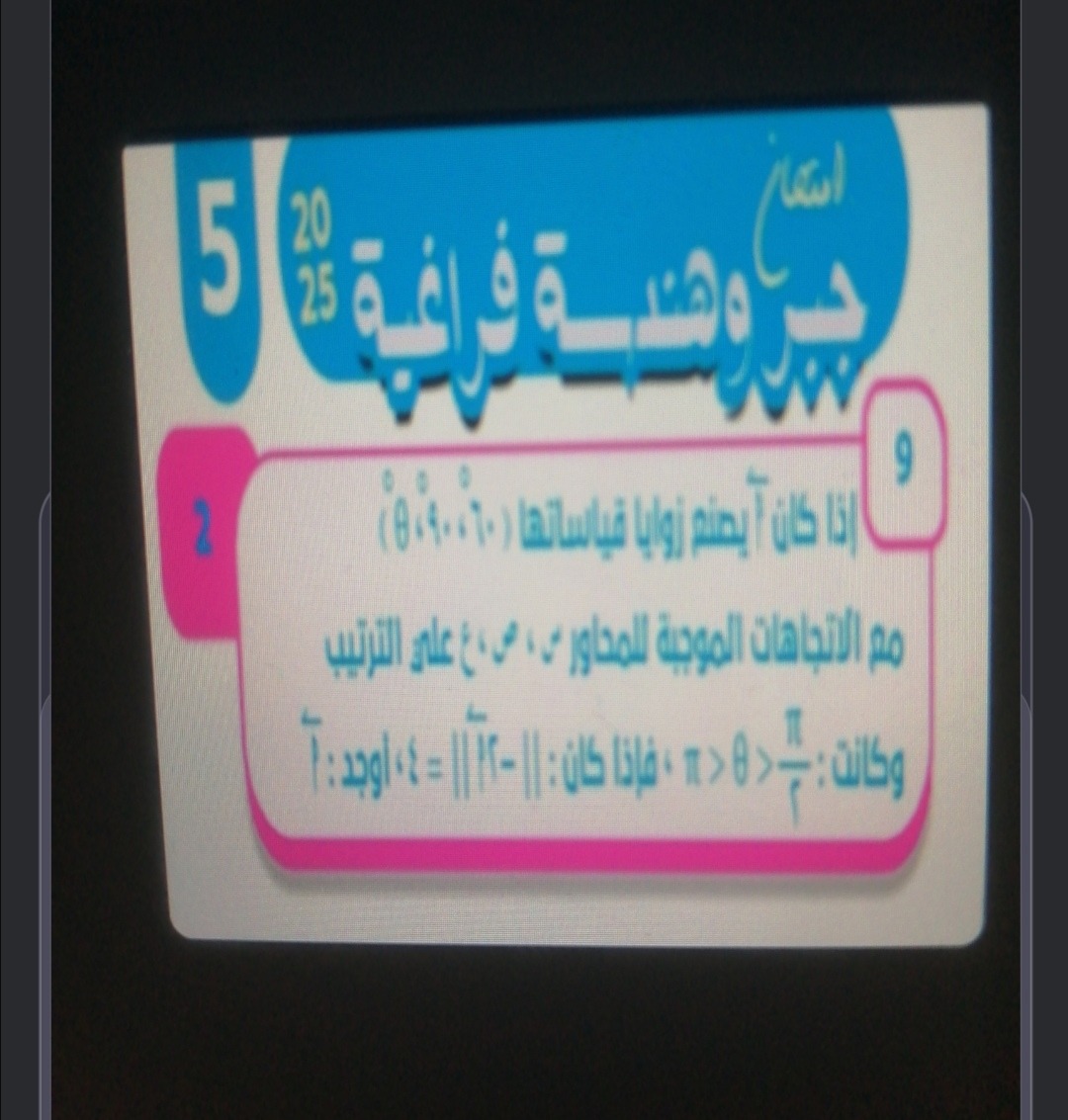

The text in the image contains a mathematical problem written in Arabic. Let me transcribe and analyze it:


Translation of the problem:

"If a vector r\vec{r} forms angles with measures (0°,90°,60°)(0°, 90°, 60°) with the positive axes xx, yy, and zz respectively, and if the magnitude of r\vec{r} is r=40||\vec{r}|| = \sqrt{40}, find the vector r\vec{r}."


Steps to Solve:

  1. Understand the Angles and Components:

    • The given angles are:
      • 00^\circ with the xx-axis,
      • 9090^\circ with the yy-axis,
      • 6060^\circ with the zz-axis.
    • These angles represent the direction cosines of the vector. The direction cosines are computed as: cos(θx)=cos(0),cos(θy)=cos(90),cos(θz)=cos(60).\cos(\theta_x) = \cos(0^\circ), \quad \cos(\theta_y) = \cos(90^\circ), \quad \cos(\theta_z) = \cos(60^\circ). Substituting the values: cos(0)=1,cos(90)=0,cos(60)=12.\cos(0^\circ) = 1, \quad \cos(90^\circ) = 0, \quad \cos(60^\circ) = \frac{1}{2}.
  2. Components of the Vector: The components of the vector r\vec{r} are given by: rx=rcos(θx),ry=rcos(θy),rz=rcos(θz).r_x = ||\vec{r}|| \cdot \cos(\theta_x), \quad r_y = ||\vec{r}|| \cdot \cos(\theta_y), \quad r_z = ||\vec{r}|| \cdot \cos(\theta_z). Substituting r=40||\vec{r}|| = \sqrt{40} and the cosine values: rx=401=40,ry=400=0,rz=4012=402.r_x = \sqrt{40} \cdot 1 = \sqrt{40}, \quad r_y = \sqrt{40} \cdot 0 = 0, \quad r_z = \sqrt{40} \cdot \frac{1}{2} = \frac{\sqrt{40}}{2}.

  3. Vector Form: The vector r\vec{r} can be written in component form: r=(40,0,402).\vec{r} = \left(\sqrt{40}, 0, \frac{\sqrt{40}}{2}\right).

  4. Simplify the Components:

    • 40=410=210\sqrt{40} = \sqrt{4 \cdot 10} = 2\sqrt{10},
    • 402=2102=10\frac{\sqrt{40}}{2} = \frac{2\sqrt{10}}{2} = \sqrt{10}.

    Therefore, the vector becomes: r=(210,0,10).\vec{r} = \left(2\sqrt{10}, 0, \sqrt{10}\right).


Final Answer:

r=(210,0,10)\vec{r} = \left(2\sqrt{10}, 0, \sqrt{10}\right)


Let me know if you need further explanation or steps to verify the calculations!


5 Related Questions:

  1. What are direction cosines, and how are they derived?
  2. How do we calculate the magnitude of a vector from its components?
  3. What is the significance of a vector's angle with an axis?
  4. How can this problem be extended to find unit vectors?
  5. Can we generalize this problem for arbitrary angles?

Tip:

Always double-check trigonometric values (e.g., cos\cos, sin\sin) to ensure accuracy in vector calculations!

Ask a new question for Free

By Image

Drop file here or Click Here to upload

Math Problem Analysis

Mathematical Concepts

Vectors
Direction Cosines
Vector Magnitude

Formulas

cos(θx), cos(θy), cos(θz) are the direction cosines
rx = ||r|| * cos(θx), ry = ||r|| * cos(θy), rz = ||r|| * cos(θz)

Theorems

Direction Cosines of a Vector

Suitable Grade Level

Grades 11-12
