The task presented in the image involves finding the composition of two relations $R$ and $S$, denoted as $S \circ R$. Let me break it down step-by-step:

Definitions:

1. Relation $R$: A subset of $\{1, 2, 3\} \times \{1, 2, 3, 4\}$, which is defined as: $R = \{(1, 1), (1, 4), (2, 3), (3, 1), (3, 4)\}.$

2. Relation $S$: A subset of $\{1, 2, 3, 4\} \times \{0, 1, 2\}$, which is defined as: $S = \{(1, 0), (2, 0), (3, 1), (3, 2), (4, 2)\}.$

3. Composition of Relations $S \circ R$: The composition $S \circ R$ is a relation that connects an element $a$ from the domain of $R$ to an element $c$ in the range of $S$, such that there exists an intermediate $b$ where: $(a, b) \in R \quad \text{and} \quad (b, c) \in S.$

   In simpler terms, $(a, c) \in S \circ R$ if there exists some $b$ such that $R(a, b)$ and $S(b, c)$.

Step-by-Step Solution:

To compute $S \circ R$, we examine each pair in $R$ and check if the second element of the pair matches the first element of any pair in $S$. If they match, we create a new pair where the first element is from $R$, and the second element is from $S$.

1. Pairs in $R$:

   • $(1, 1)$, $(1, 4)$, $(2, 3)$, $(3, 1)$, $(3, 4)$.

2. Pairs in $S$:

   • $(1, 0)$, $(2, 0)$, $(3, 1)$, $(3, 2)$, $(4, 2)$.

3. Finding Matches:

   • For $(1, 1) \in R$: The second element is $1$. Look for pairs in $S$ where the first element is $1$. The pair $(1, 0) \in S$ matches. Result: $(1, 0)$.
   • For $(1, 4) \in R$: The second element is $4$. Look for pairs in $S$ where the first element is $4$. The pair $(4, 2) \in S$ matches. Result: $(1, 2)$.
   • For $(2, 3) \in R$: The second element is $3$. Look for pairs in $S$ where the first element is $3$. The pairs $(3, 1)$ and $(3, 2) \in S$ match. Results: $(2, 1)$, $(2, 2)$.
   • For $(3, 1) \in R$: The second element is $1$. Look for pairs in $S$ where the first element is $1$. The pair $(1, 0) \in S$ matches. Result: $(3, 0)$.
   • For $(3, 4) \in R$: The second element is $4$. Look for pairs in $S$ where the first element is $4$. The pair $(4, 2) \in S$ matches. Result: $(3, 2)$.

Final Result:

The composition $S \circ R$ is the set of pairs: $S \circ R = \{(1, 0), (1, 2), (2, 1), (2, 2), (3, 0), (3, 2)\}.$

Explanation of the Diagram:

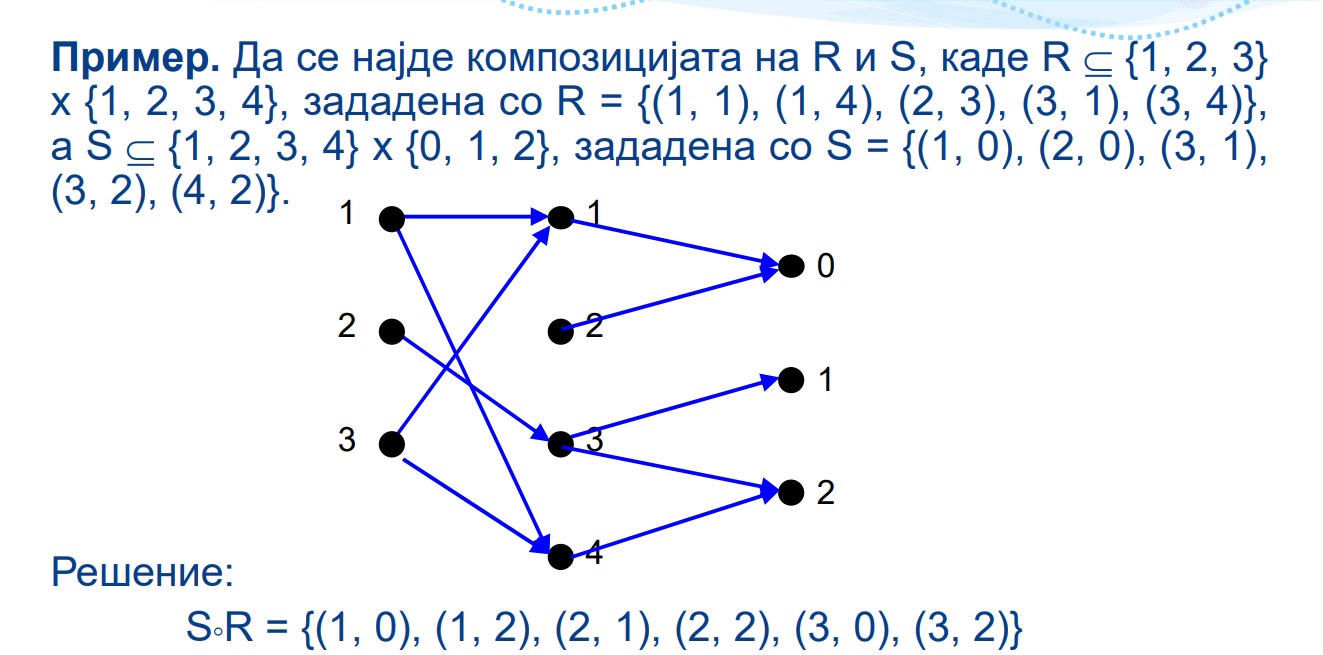

The diagram visually represents the relations:

1. The nodes labeled $1, 2, 3, 4$ and the arrows between them represent the relation $R$.
2. The nodes labeled $0, 1, 2$ and their connections represent the relation $S$.
3. The combined connections (paths from $R$ to $S$ via intermediate elements) represent the composition $S \circ R$.

Do you want further clarification or details about this explanation?
