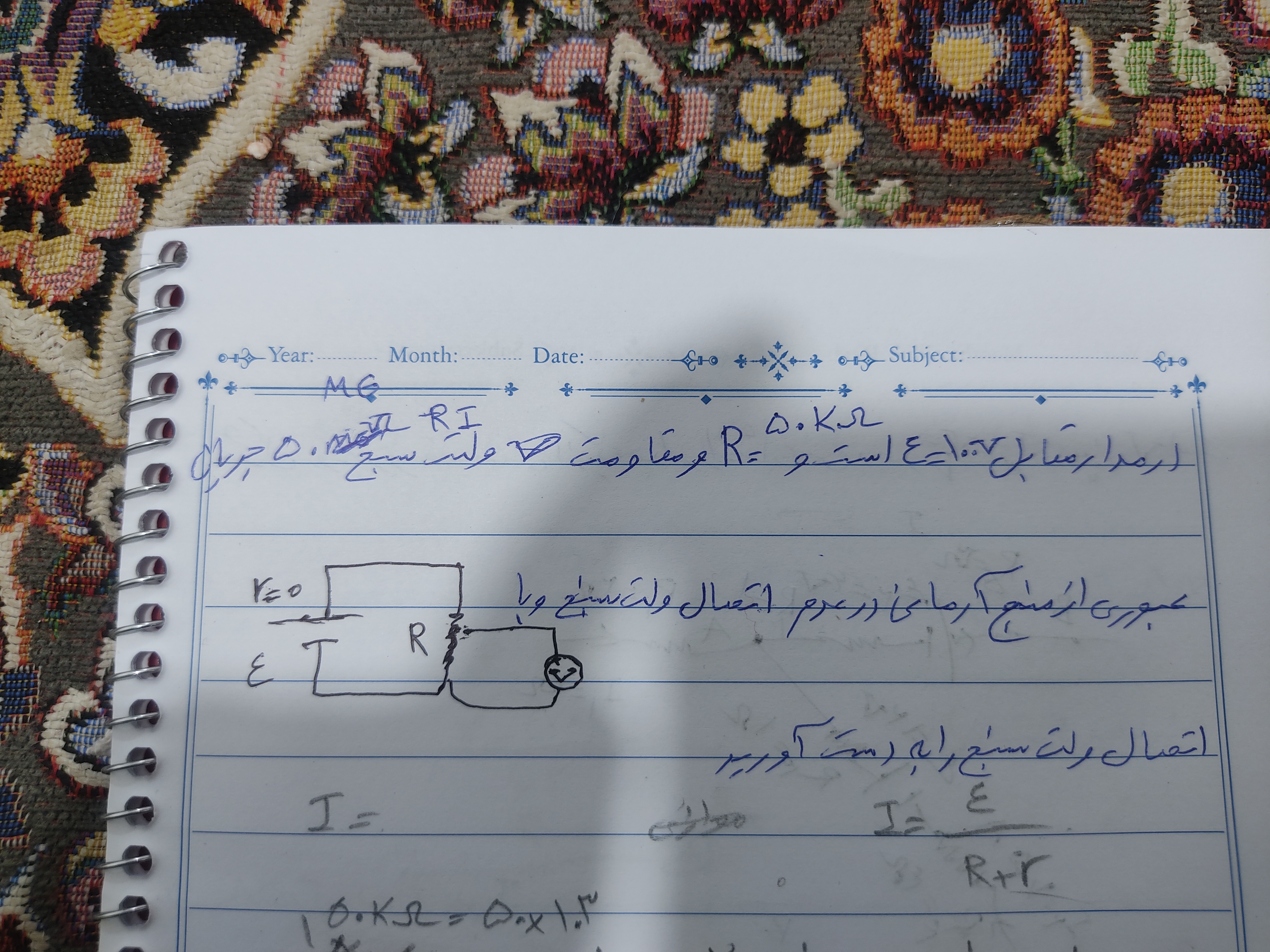

It appears that the uploaded image contains a circuit diagram along with related equations or analysis. Let me process the content and provide a detailed explanation of the circuit and the equations involved. Please wait a moment.The image contains a circuit and some equations that seem to analyze the behavior of the circuit.

Observations from the image:

1. Circuit Diagram:

   • The circuit has:
     • An electromotive force (E or $\mathcal{E}$),
     • Internal resistance $r$,
     • An external resistor $R$.
   • The circuit forms a closed loop.

2. Equations in the Image:

   • The image derives the current in the circuit using Ohm’s Law and Kirchhoff’s Voltage Law (KVL): $I = \frac{\mathcal{E}}{R + r}$

   • KVL is used to write the voltage drop around the loop: $\mathcal{E} = I \cdot R + I \cdot r$

   • Solving for $I$, the equation becomes: $I = \frac{\mathcal{E}}{R + r}$

Explanation of the Concepts:

1. Kirchhoff’s Voltage Law (KVL):

   • In a closed circuit, the sum of all voltage sources is equal to the sum of all voltage drops. Here: $\mathcal{E} = I \cdot R + I \cdot r$

2. Ohm’s Law:

   • Voltage ($V$) across a resistor is the product of the current ($I$) and resistance ($R$): $V = I \cdot R$

3. Internal Resistance:

   • Real batteries have an internal resistance $r$, which affects the total resistance of the circuit. The total resistance in this circuit is $R + r$.

4. Current in the Circuit:

   • Using Ohm’s Law for the entire loop: $I = \frac{\text{Total EMF}}{\text{Total Resistance}}$
   • Substituting the total resistance $R + r$: $I = \frac{\mathcal{E}}{R + r}$

Would you like a deeper explanation of:

1. Internal resistance and its effects on circuit performance?
2. Kirchhoff’s Voltage Law in detail with examples?
3. How the equation $I = \frac{\mathcal{E}}{R + r}$ is derived?
4. The concept of maximum power transfer and its relation to internal resistance?
5. Practical applications of such circuits in real-world scenarios?

Tip: Always account for internal resistance when designing circuits with batteries, as it reduces the actual output voltage and current.
