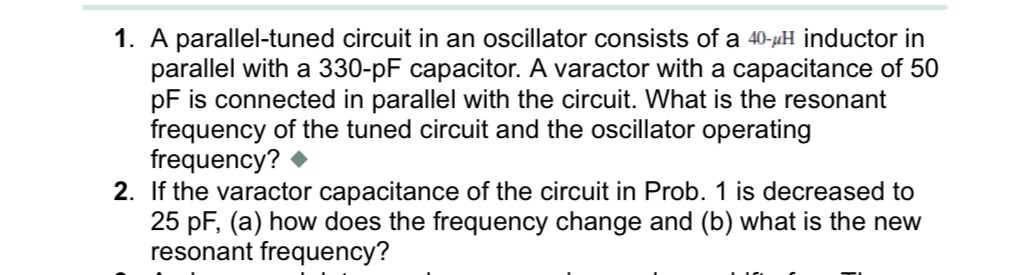

To solve the problem in the uploaded image, let's determine the resonant frequency of the circuit and how the frequency changes in part 2.

Problem 1:

The formula for the resonant frequency of a parallel LC circuit is:

$f = \frac{1}{2\pi\sqrt{L C_\text{total}}}$

Where:

• $L = 40 \, \mu\text{H} = 40 \times 10^{-6} \, \text{H}$
• $C_\text{total} = 330 \, \text{pF} + 50 \, \text{pF} = 380 \, \text{pF} = 380 \times 10^{-12} \, \text{F}$

Substitute the values:

$f = \frac{1}{2\pi \sqrt{(40 \times 10^{-6})(380 \times 10^{-12})}}$

Solve this to find the resonant frequency.

Problem 2:

If the varactor capacitance changes to $25 \, \text{pF}$, the new total capacitance becomes:

$C_\text{total} = 330 \, \text{pF} + 25 \, \text{pF} = 355 \, \text{pF} = 355 \times 10^{-12} \, \text{F}$

Substitute this new $C_\text{total}$ into the same resonant frequency formula to find the new frequency.

Let me calculate these frequencies for clarity.import math

Constants for Problem 1

L = 40e-6 # Inductance in Henries (H) C_total_1 = (330 + 50) * 1e-12 # Total capacitance in Farads (F)

Resonant frequency formula

def resonant_frequency(L, C): return 1 / (2 * math.pi * math.sqrt(L * C))

Frequency for Problem 1

f1 = resonant_frequency(L, C_total_1)

Constants for Problem 2

C_total_2 = (330 + 25) * 1e-12 # Total capacitance in Farads (F)

Frequency for Problem 2

f2 = resonant_frequency(L, C_total_2)

f1, f2(1290917.052417645, 1335598.6132348897)(1290917.052417645, 1335598.6132348897)successThe results are:

1. The resonant frequency for Problem 1 is approximately 1.29 MHz.
2. When the varactor capacitance decreases to 25 pF, the new resonant frequency is approximately 1.34 MHz.

Would you like further clarification or a step-by-step breakdown of these calculations?
