Math Problem Statement
Solution

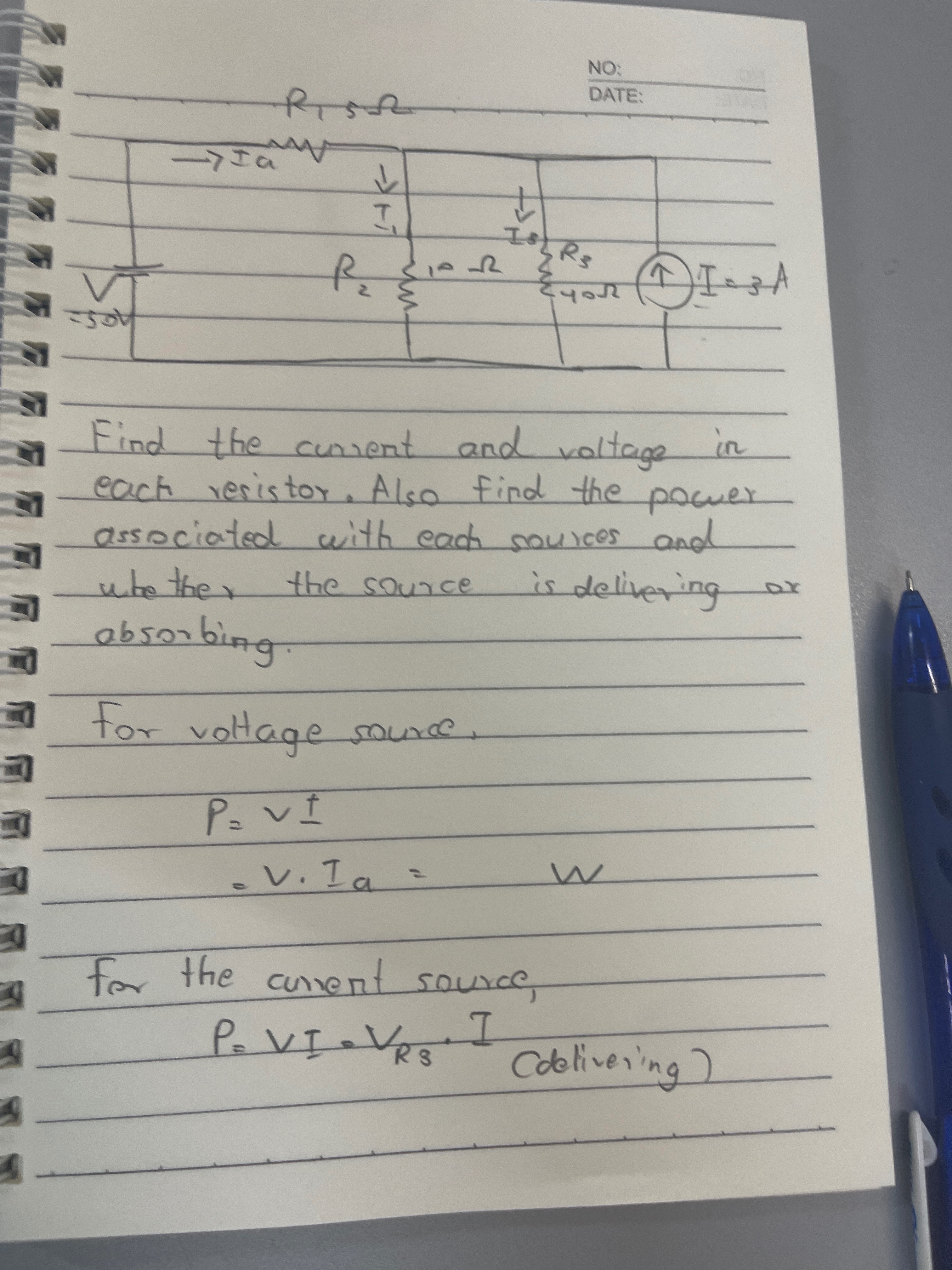

The image you've uploaded appears to be a circuit problem where you're tasked with finding the current and voltage in each resistor, as well as the power associated with each source. Let's break it down:
Given Information:
- Voltage Source (V): 50V
- Current Source (I): 3A
- Resistors:
- R₁ = 5Ω
- R₂ = 10Ω
- R₃ = 4Ω
Steps for Solution:
-
Voltage Source:
- Use Ohm's law and the given values to calculate the voltage and current across the resistors.
- You can find the current using Kirchhoff's Voltage Law (KVL) and the configuration of the resistors.
-
Current Source:
- Since the current source is given as 3A, the current through the resistors should be determined based on the configuration of the circuit.
-
Power Calculation:
- For the voltage source:
- For the current source: where is the voltage across the corresponding resistor.
I would need to determine how the components are connected (in series or parallel) to find the specific values of current and voltage across each element.
Would you like me to explain how to proceed step by step with these calculations?
