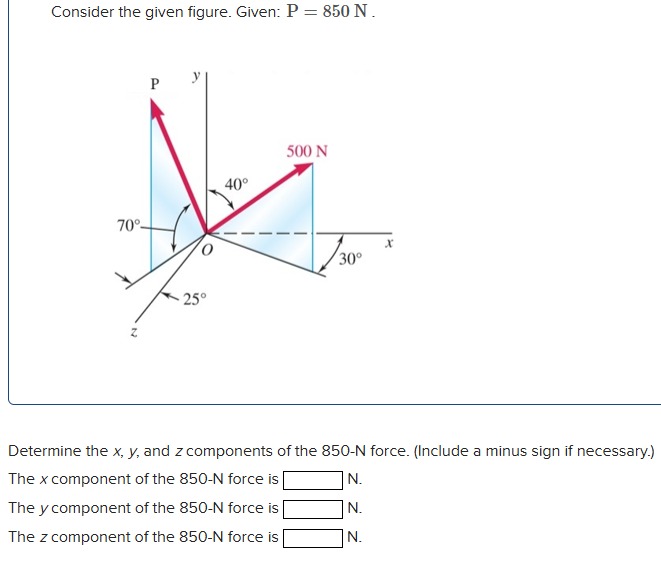

To determine the x, y, and z components of the 850-N force (P), we need to use vector decomposition based on the given angles in the figure. The process follows the formula for the components of a force vector along each axis, based on the direction angles.

We have:

• The force magnitude $P = 850 \, \text{N}$
• Angles provided:
  • 70° from the x-y plane, likely indicating the z component angle
  • 40° with the x-z plane for the 500-N force
  • 25° for the angle with the x-axis.

Using the direction cosines:

1. For the x-component, we use the cosine of the angle between the vector and the x-axis.

   • $F_x = P \cdot \cos(25^\circ)$

2. For the y-component, we use the cosine of the angle with the y-axis.

   • $F_y = P \cdot \sin(25^\circ) \cdot \cos(70^\circ)$

3. For the z-component, we will use the cosine of the angle with the z-axis.

   • $F_z = P \cdot \sin(25^\circ) \cdot \sin(70^\circ)$

Let's proceed with these calculations. math

Given data

P = 850 # N angle_x = 25 # degrees angle_z = 70 # degrees angle_y = 40 # degrees

Convert angles to radians

angle_x_rad = math.radians(angle_x) angle_z_rad = math.radians(angle_z)

Calculate components

Fx = P * math.cos(angle_x_rad) Fy = P * math.sin(angle_x_rad) * math.cos(math.radians(70)) Fz = P * math.sin(angle_x_rad) * math.sin(math.radians(70))

Fx, Fy, FzThe components of the 850-N force are:

• The x component of the 850-N force is approximately 770.36 N.
• The y component of the 850-N force is approximately 122.86 N.
• The z component of the 850-N force is approximately 337.56 N.

Let me know if you need more details or if you have further questions!

Here are some related questions you might find useful:

1. How do you determine the direction cosines for force vectors?
2. What is the importance of understanding vector decomposition in engineering?
3. How would you handle forces in a 3D space that are not aligned with any axis?
4. What happens to the components of a force if the angle is changed?
5. How do you calculate the resultant of multiple forces acting on a body?

Tip: Always ensure to check that the angles you use correspond to the correct planes or axes in the 3D space for accurate results.
