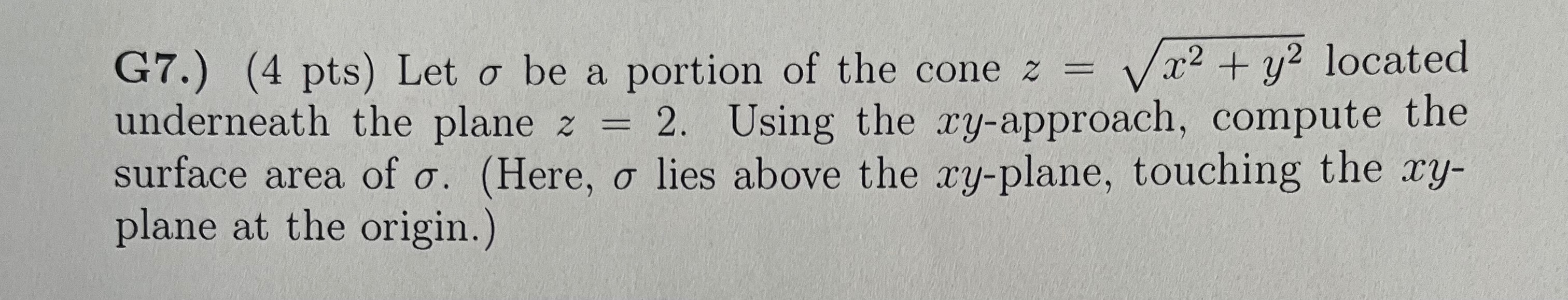

To solve this problem, we aim to compute the surface area of the portion $\sigma$ of the cone $z = \sqrt{x^2 + y^2}$ located below the plane $z = 2$. Using the surface area formula with the $xy$-approach, we proceed as follows:

Surface Area Formula

The surface area of a surface $z = f(x, y)$ is given by: $\text{Surface Area} = \iint_R \sqrt{1 + \left( \frac{\partial z}{\partial x} \right)^2 + \left( \frac{\partial z}{\partial y} \right)^2} \, dA,$ where $R$ is the region of projection in the $xy$-plane.

Here, $z = \sqrt{x^2 + y^2}$, and the plane $z = 2$ intersects the cone when: $\sqrt{x^2 + y^2} = 2 \implies x^2 + y^2 = 4.$ Thus, $R$ is the disk $x^2 + y^2 \leq 4$ in the $xy$-plane.

Step 1: Compute Partial Derivatives

The partial derivatives of $z = \sqrt{x^2 + y^2}$ are: $\frac{\partial z}{\partial x} = \frac{x}{\sqrt{x^2 + y^2}}, \quad \frac{\partial z}{\partial y} = \frac{y}{\sqrt{x^2 + y^2}}.$ Their squares are: $\left( \frac{\partial z}{\partial x} \right)^2 = \frac{x^2}{x^2 + y^2}, \quad \left( \frac{\partial z}{\partial y} \right)^2 = \frac{y^2}{x^2 + y^2}.$ Adding these: $\left( \frac{\partial z}{\partial x} \right)^2 + \left( \frac{\partial z}{\partial y} \right)^2 = \frac{x^2 + y^2}{x^2 + y^2} = 1.$

Step 2: Surface Area Integrand

The integrand becomes: $\sqrt{1 + \left( \frac{\partial z}{\partial x} \right)^2 + \left( \frac{\partial z}{\partial y} \right)^2} = \sqrt{1 + 1} = \sqrt{2}.$

Thus, the surface area is: $\text{Surface Area} = \sqrt{2} \iint_R 1 \, dA.$

Step 3: Compute $\iint_R 1 \, dA$

The region $R$ is a disk of radius 2. In polar coordinates: $x = r\cos\theta, \quad y = r\sin\theta, \quad dA = r \, dr \, d\theta,$ with $0 \leq r \leq 2$ and $0 \leq \theta \leq 2\pi$. The integral becomes: $\iint_R 1 \, dA = \int_0^{2\pi} \int_0^2 r \, dr \, d\theta.$ Compute the inner integral: $\int_0^2 r \, dr = \left[\frac{r^2}{2}\right]_0^2 = \frac{2^2}{2} - 0 = 2.$ Now compute the outer integral: $\int_0^{2\pi} 2 \, d\theta = 2 \cdot 2\pi = 4\pi.$

Step 4: Final Surface Area

Multiply by $\sqrt{2}$: $\text{Surface Area} = \sqrt{2} \cdot 4\pi = 4\pi\sqrt{2}.$

Final Answer:

The surface area of $\sigma$ is: $\boxed{4\pi\sqrt{2}}$
