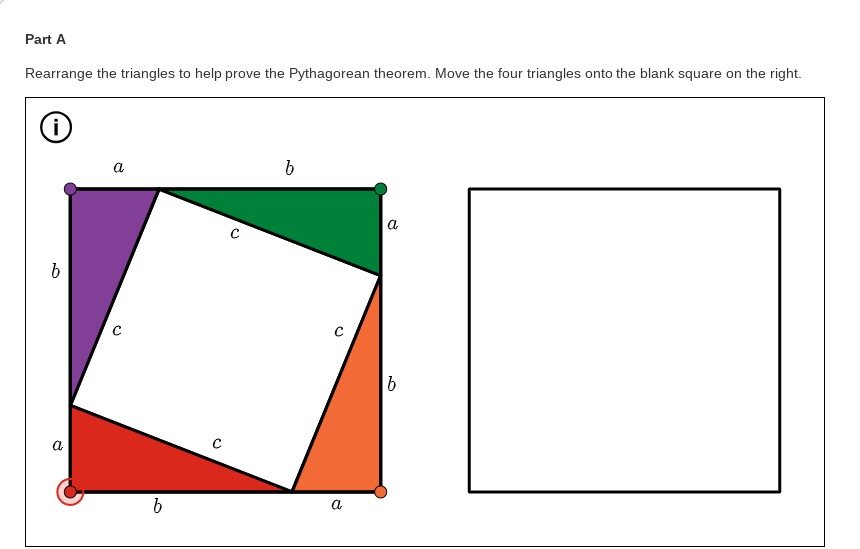

The diagram represents a visual proof of the Pythagorean theorem. The goal is to rearrange the four triangles on the left into the square on the right, demonstrating that the areas of the squares on the legs $a$ and $b$ sum up to the area of the square on the hypotenuse $c$.

Steps to Prove Pythagoras’ Theorem Using Rearrangement:

1. Original Configuration (Left Square):

   • The large square has a side length $a + b$, so its area is $(a + b)^2$.
   • It consists of four right triangles and a smaller square in the center with side length $c$. The area of the center square is $c^2$.
   • Total area equation: $(a + b)^2 = 4\left(\frac{1}{2}ab\right) + c^2$

2. Rearranged Configuration (Right Square):

   • When rearranging, the four triangles fit into the blank square along with the central square of side $c$, but the total area of the blank square does not change.

3. Area Proof: Simplifying the area relationships:

   • Expanding $(a + b)^2$: $a^2 + 2ab + b^2 = 2ab + c^2$
   • Subtracting $2ab$ from both sides: $a^2 + b^2 = c^2$

Thus, the rearrangement visually and algebraically demonstrates that the sum of the areas of the squares on the two legs equals the area of the square on the hypotenuse.

Let me know if you'd like to see a step-by-step illustration or ask any of these questions for deeper exploration:

1. Why do we use the rearrangement method in proving Pythagoras' theorem?
2. How can you calculate the total area of the square after rearranging the triangles?
3. Could the Pythagorean theorem be demonstrated without geometric rearrangement?
4. How does this visual proof compare with algebraic proofs of the Pythagorean theorem?
5. How can the Pythagorean theorem be extended to three-dimensional problems?

Tip: When solving geometry problems, visual aids often help clarify complex concepts, such as area relationships and congruence.
