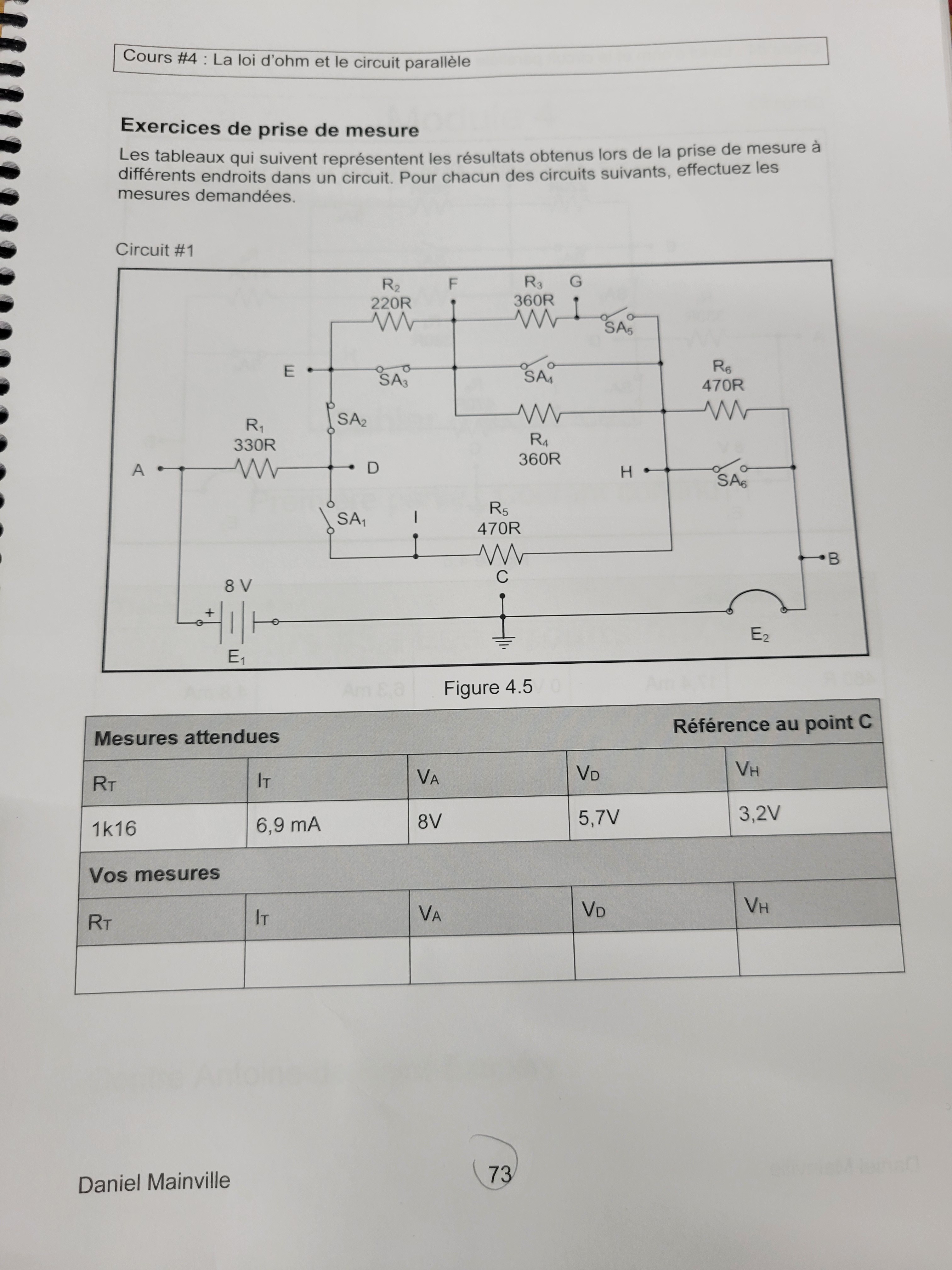

The image shows a circuit labeled as "Circuit #1" with a series of resistors and measurement points, as well as a table for expected and actual measurements. The circuit is used to practice Ohm's law and parallel circuit analysis. Here's a summary of the key components and expected measurements:

Circuit Analysis and Expected Measurements

1. Circuit Components:

   • Several resistors (R1 through R6) with various resistance values.
   • Multiple measurement points (A, C, D, F, G, H, and I) for observing voltage drops.
   • A voltage source labeled with 8V.

2. Expected Measurements (Table):

   • Total Resistance (RT): 1.16 kΩ (or 1160 Ω).
   • Total Current (IT): 6.9 mA.
   • Voltage at Points:
     • $V_A = 8 \text{ V}$
     • $V_D = 5.7 \text{ V}$
     • $V_H = 3.2 \text{ V}$

3. Your Measurements:

   • The lower table is intended for students to fill in their measured values for RT, IT, VA, VD, and VH after completing the experiment.

This exercise likely involves measuring voltages at various points in the circuit and comparing the results with the expected values to verify Ohm’s law and behavior in parallel and series connections.

Would you like an analysis on calculating these values or verifying the expected measurements?

Related Questions:

1. How is the total resistance $RT$ calculated in a mixed series-parallel circuit?
2. What is the significance of the reference point at $C$ in measuring voltages?
3. How does one calculate the expected current $IT$ in the circuit given $RT$ and the voltage source?
4. Why do the voltages $V_A$, $V_D$, and $V_H$ differ, and what does that indicate about the circuit layout?
5. How can one verify that the expected and measured values align with Ohm’s Law?

Tip:

When working with parallel circuits, remember that the total resistance is always less than the smallest resistance in any parallel network.
