Math Problem Statement
Solve
What is the truth table and logic gate represented in the image?
Solution

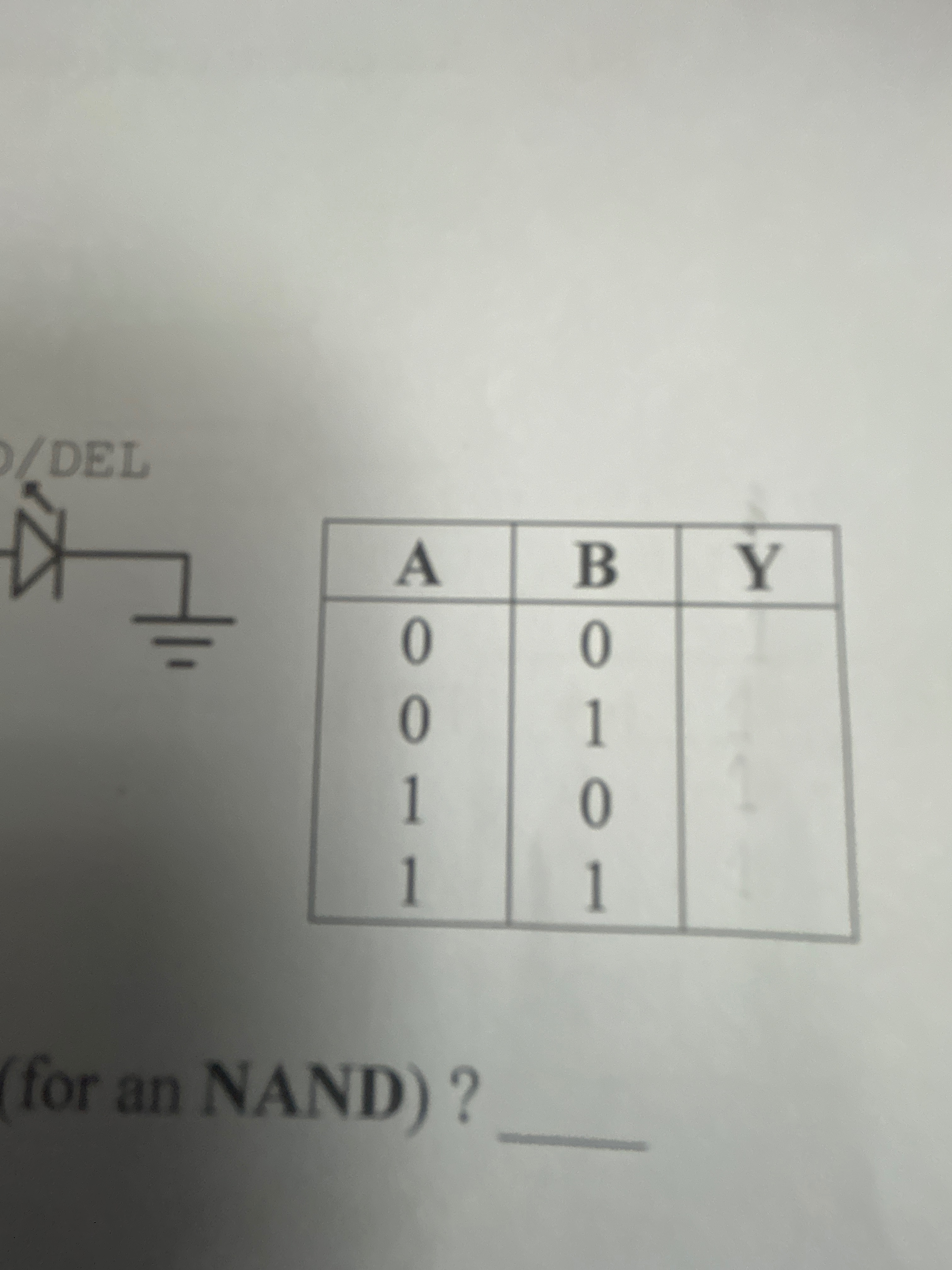

The image provided shows a truth table with two inputs, A and B, and one output, Y. Here's how the table looks based on the provided image:
| A | B | Y |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
This is the truth table for a NAND gate. A NAND gate provides an output of 1 except when both inputs are 1, in which case the output is 0. The given table matches this behavior.
Would you like further explanation or any more details?
Here are 5 questions to expand on this information:
- How does a NAND gate differ from an AND gate?
- What are the practical applications of a NAND gate in digital circuits?
- Can you explain De Morgan's laws and how they relate to NAND gates?
- How would you construct a NOR gate using only NAND gates?
- What is the significance of universal gates like NAND in digital logic design?
Tip: NAND gates are considered universal gates because you can build any other gate (AND, OR, NOT, etc.) using only NAND gates!
Ask a new question for Free
By Image
Drop file here or Click Here to upload
Math Problem Analysis
Mathematical Concepts
Digital Logic
Truth Tables
Logic Gates
Formulas
NAND Gate Logic: Y = NOT(A AND B)
Theorems
De Morgan's Laws
Suitable Grade Level
Grades 9-12
