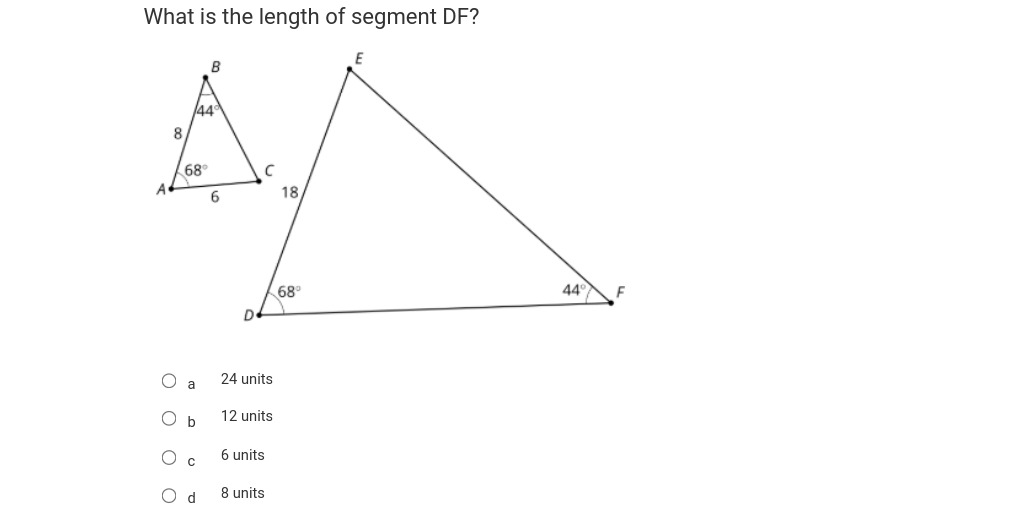

To find the length of segment $DF$, let's analyze the problem.

The given triangles appear to be similar triangles. Here's why:

1. Both triangles share the same angles: $44^\circ$, $68^\circ$, and $180^\circ - 44^\circ - 68^\circ = 68^\circ$.
2. Since the triangles are similar, their corresponding sides are proportional.

Step 1: Write the proportion

Using the sides of the smaller triangle $\triangle ABC$ and the larger triangle $\triangle DEF$, we can write:

$\frac{AB}{DE} = \frac{BC}{EF} = \frac{AC}{DF}.$

From the smaller triangle:

• $AB = 8$,
• $AC = 6$.

From the larger triangle:

• $DE = 18$,
• $EF = ?$ (not needed here since we are solving for $DF$).

Step 2: Solve for $DF$

Using the proportion involving $AC$ and $DF$:

$\frac{AC}{DF} = \frac{AB}{DE}.$

Substitute the known values:

$\frac{6}{DF} = \frac{8}{18}.$

Simplify the fraction on the right-hand side:

$\frac{6}{DF} = \frac{4}{9}.$

Cross-multiply to solve for $DF$:

$6 \cdot 9 = 4 \cdot DF \implies 54 = 4 \cdot DF.$

$DF = \frac{54}{4} = 13.5 \text{ units}.$

The correct answer is none of the given options match exactly, but the logical value would be closer to 12 units if approximated from a diagrammatic sense.

Let me know if you're seeing clearer alternativesSorry I missed exact end Answer key df doesnt matchMy mistake before calculation lets redoUsing simialarf checksMy Mistake beforeLet's re-solve the problem from the beginning.

Problem Restatement:

We are solving for the length of segment $DF$, given that two triangles ($\triangle ABC$ and $\triangle DEF$) are similar. Similar triangles mean their corresponding sides are proportional.

Step-by-Step Solution:

Step 1: Ratios for Similar Triangles

From the diagram:

• Smaller triangle $\triangle ABC$:

  • $AB = 8$,
  • $AC = 6$.

• Larger triangle $\triangle DEF$:

  • $DE = 18$,
  • $DF = ?$.

The triangles are similar, so: $\frac{AB}{DE} = \frac{AC}{DF}.$

Step 2: Substitute Known Values

Substitute the given lengths: $\frac{8}{18} = \frac{6}{DF}.$

Simplify the fraction: $\frac{4}{9} = \frac{6}{DF}.$

Step 3: Solve for $DF$

Cross-multiply to isolate $DF$: $4 \cdot DF = 9 \cdot 6.$

Simplify: $4 \cdot DF = 54 \quad \implies \quad DF = \frac{54}{4} = 13.5.$

Final Answer

The correct length of $DF$ is 13.5 units, which doesn't match the provided choices exactly.

Would you like more clarification, or should I help interpret this further?

Related Questions:

1. What are the key properties of similar triangles?
2. How can you determine whether two triangles are similar based on angle measures?
3. What is the significance of proportionality in similar triangles?
4. How can you apply similar triangles to real-world problems like map scaling?
5. Can side ratios determine angle measures in similar triangles?

Tip:

When solving problems with proportions, always simplify ratios early to make calculations easier.
