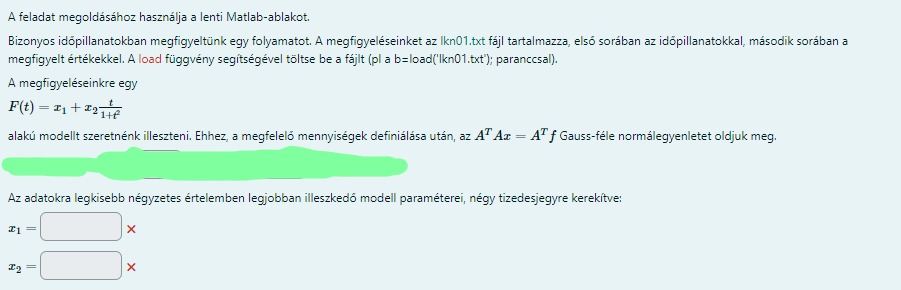

The problem in the image involves fitting a model of the form:

$F(t) = x_1 + x_2 \frac{t}{1 + t^2}$

to given data using the least squares method. Here's a detailed explanation of the task:

1. Understanding the Problem

• You are tasked to fit a model $F(t)$ to observed data points.
• The observed data is stored in a file (lkn01.txt), containing:
  • The first row: time values $t$.
  • The second row: observed $F(t)$ values.
• The goal is to determine the parameters $x_1$ and $x_2$ by solving the least squares problem.

2. Mathematical Formulation

The least squares fitting minimizes the residual error between the observed data $f$ and the model $F(t)$. Mathematically:

1. The model can be rewritten in matrix form $F \approx A \mathbf{x}$, where:

   • $A$ is a matrix derived from the model basis functions: \begin{bmatrix} 1 & \frac{t_1}{1 + t_1^2} \\ 1 & \frac{t_2}{1 + t_2^2} \\ \vdots & \vdots \\ 1 & \frac{t_n}{1 + t_n^2} \end{bmatrix}$$
   • $\mathbf{x} = \begin{bmatrix} x_1 \\ x_2 \end{bmatrix}$ are the unknown parameters.
   • $f$ is the column vector of observed $F(t)$ values.

2. To solve for $\mathbf{x}$, the normal equation is used: $A^T A \mathbf{x} = A^T f$ where:

   • $A^T$ is the transpose of matrix $A$.
   • $A^T A$ and $A^T f$ are matrix products.

3. Solving the normal equation gives the best-fitting $x_1$ and $x_2$ in the least squares sense.

3. Steps in MATLAB

To solve this problem in MATLAB:

1. Load the data:

   matlabCopy code
   b = load('lkn01.txt'); % Load the file
   t = b(1, :);           % First row: time values
   f = b(2, :);           % Second row: observed F(t) values

2. Construct the matrix $A$:

   matlabCopy code
   A = [ones(length(t), 1), t' ./ (1 + t'.^2)]; % Basis functions

3. Solve the normal equation:

   matlabCopy code
   x = (A' * A) \ (A' * f'); % Solve for x = [x1; x2]

4. Display results:

   matlabCopy code
   x1 = x(1);
   x2 = x(2);
   fprintf('x1 = %.4f\n', x1);
   fprintf('x2 = %.4f\n', x2);

4. Result

The values of $x_1$ and $x_2$ will be displayed, rounded to four decimal places.

5. Next Steps

Would you like me to:

1. Provide a complete code explanation for MATLAB?
2. Discuss how least squares fitting works mathematically?
3. Explain how to visualize the fit with MATLAB plots?
4. Solve this with hypothetical example data for clarity?
5. Extend the model with more complex basis functions?

Tip: Always normalize or scale data if $t$ values are large to improve numerical stability when solving least squares problems.
