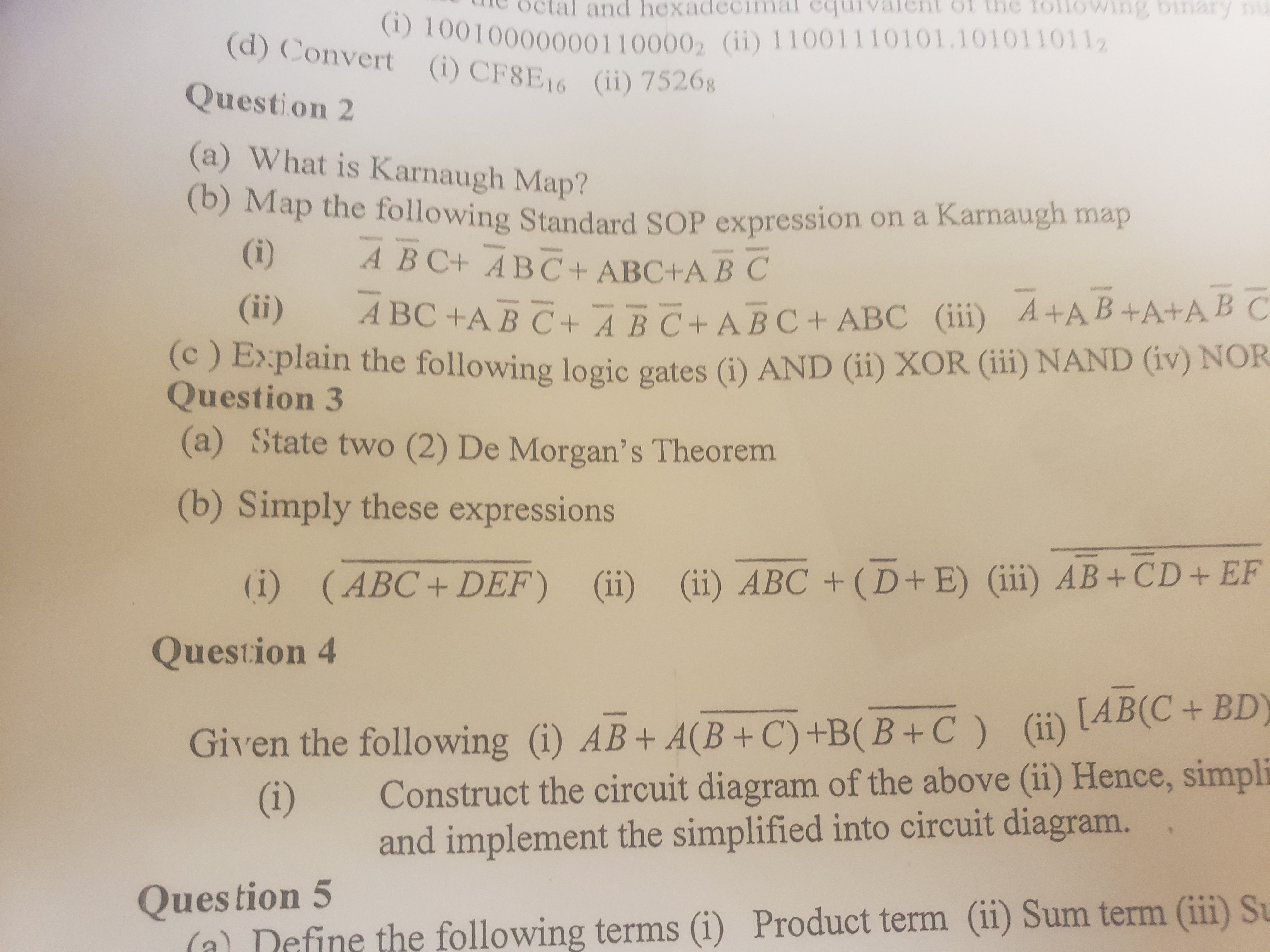

Let's go through the questions step-by-step. I will start with Question 2 as you requested help with it. Here is a breakdown and explanation of each part of Question 2:

Question 2(a): What is Karnaugh Map?

A Karnaugh map (K-map) is a diagram used in Boolean algebra and digital logic design to simplify Boolean expressions. It helps visualize and minimize complex logic functions by organizing the truth table values in a grid format. This grid layout enables us to find patterns of grouping that represent simpler expressions, making it easier to reduce the number of terms in a logic function, ultimately leading to simpler circuit design.

Question 2(b): Map the following Standard SOP expression on a Karnaugh map

In this question, we need to map each given Sum of Products (SOP) expression on a Karnaugh map. Let’s break down each expression and see how to place them on a K-map.

1. Expression (i): $\overline{A}BC + A\overline{B}C + AB\overline{C}$

   This SOP form includes three terms, where each term represents a minterm in the K-map:

   • $\overline{A}BC$: This minterm corresponds to $A = 0, B = 1, C = 1$.
   • $A\overline{B}C$: This minterm corresponds to $A = 1, B = 0, C = 1$.
   • $AB\overline{C}$: This minterm corresponds to $A = 1, B = 1, C = 0$.

   You can place each of these terms in a 3-variable K-map and simplify it if possible.

2. Expression (ii): $\overline{A}BC + A\overline{B}C + ABC + A\overline{B}\overline{C}$

   • $\overline{A}BC$: $A = 0, B = 1, C = 1$
   • $A\overline{B}C$: $A = 1, B = 0, C = 1$
   • $ABC$: $A = 1, B = 1, C = 1$
   • $A\overline{B}\overline{C}$: $A = 1, B = 0, C = 0$

   Again, place each term on a K-map and look for groups to simplify the expression.

3. Expression (iii): $\overline{A} + A\overline{B} + A\overline{C}$

   Here, this expression uses OR operations with three terms:

   • $\overline{A}$: Represents rows or cells where $A = 0$ regardless of $B$ or $C$.
   • $A\overline{B}$: Represents $A = 1, B = 0$ with any value of $C$.
   • $A\overline{C}$: Represents $A = 1, C = 0$ with any value of $B$.

   This expression can also be represented on a K-map by marking the relevant cells and looking for simplifications.

Question 2(c): Explain the following logic gates

1. AND Gate: This gate outputs true (1) only when all its inputs are true (1). In Boolean algebra, it's represented by multiplication (e.g., $A \cdot B$).

2. XOR Gate: The XOR (Exclusive OR) gate outputs true only when the inputs are different. It is represented by $A \oplus B$ and gives 1 when either $A$ or $B$ is 1, but not both.

3. NAND Gate: The NAND (Not AND) gate is the complement of the AND gate. It outputs true unless all inputs are true, represented by $\overline{A \cdot B}$.

4. NOR Gate: The NOR (Not OR) gate is the complement of the OR gate. It outputs true only when all inputs are false, represented by $\overline{A + B}$.

Would you like me to go through the remaining questions as well, or provide more detailed steps for any part above?

Additional Questions to Explore

1. How can Karnaugh maps be used to simplify Boolean expressions?
2. What are the advantages of using K-maps in digital circuit design?
3. What real-world applications involve the use of NAND and NOR gates?
4. How does the XOR gate differ in functionality compared to the AND gate?
5. What are the common simplification techniques for multi-variable Boolean expressions?

Tip

When filling out a Karnaugh map, remember that adjacent cells (horizontal or vertical) differ by only one variable. This adjacency helps in grouping and simplifying terms effectively.
