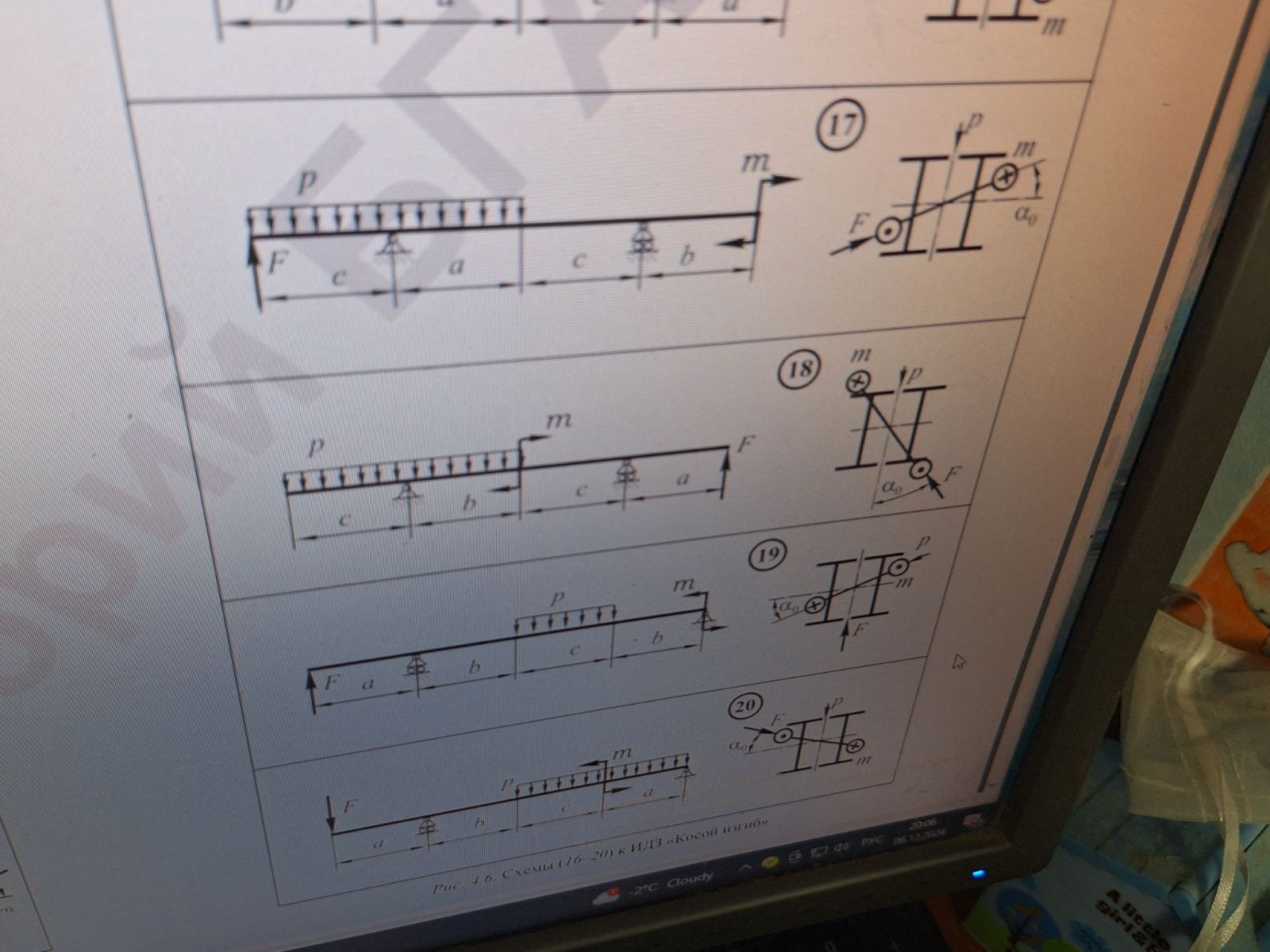

The task involves solving for the neutral axis inclination, normal stresses, and stress distribution diagrams for a beam subject to inclined bending as described in Scheme 17, Variant 10.

The problem consists of the following details:

1. The beam has a rectangular cross-section with dimensions $h = 0.3 \, \text{m}, b = 0.2 \, \text{m}$.
2. The beam is subject to:
   • A concentrated force $F$,
   • A uniformly distributed load $p$,
   • A bending moment $m$ due to a couple.
3. Key Objectives:
   • Determine the critical cross-section where stresses are maximal (dangerous section).
   • Locate the neutral axis and calculate its inclination.
   • Find normal stresses at critical points, including edge and corner points.
   • Draw the stress distribution diagrams for three sections of the beam.

1. Analysis Procedure

Step 1: Determine the dangerous section

The critical section (dangerous section) is where the resultant bending moment is maximum. To calculate:

• Combine bending moments from $F$, $p$, and $m$.
• Apply the principle of superposition to determine where the total moment is maximized.

Step 2: Neutral axis inclination

For inclined bending:

• The neutral axis inclination depends on the ratio of bending moments around the principal axes.
• Formula:
  $\tan \alpha_0 = \frac{M_y}{M_x}$
  where $M_x$ and $M_y$ are the bending moments about the $x$-axis and $y$-axis, respectively.

Step 3: Normal stress calculations

Normal stress at a point on the cross-section: $\sigma = \frac{M_x y}{I_x} + \frac{M_y x}{I_y}$ where:

• $M_x, M_y$: Bending moments about axes,
• $I_x, I_y$: Second moments of area,
• $x, y$: Coordinates of the point.

Step 4: Stress distribution diagrams

Using the calculated stresses at key points (edges, corners):

• Plot stress distribution diagrams for three beam segments.

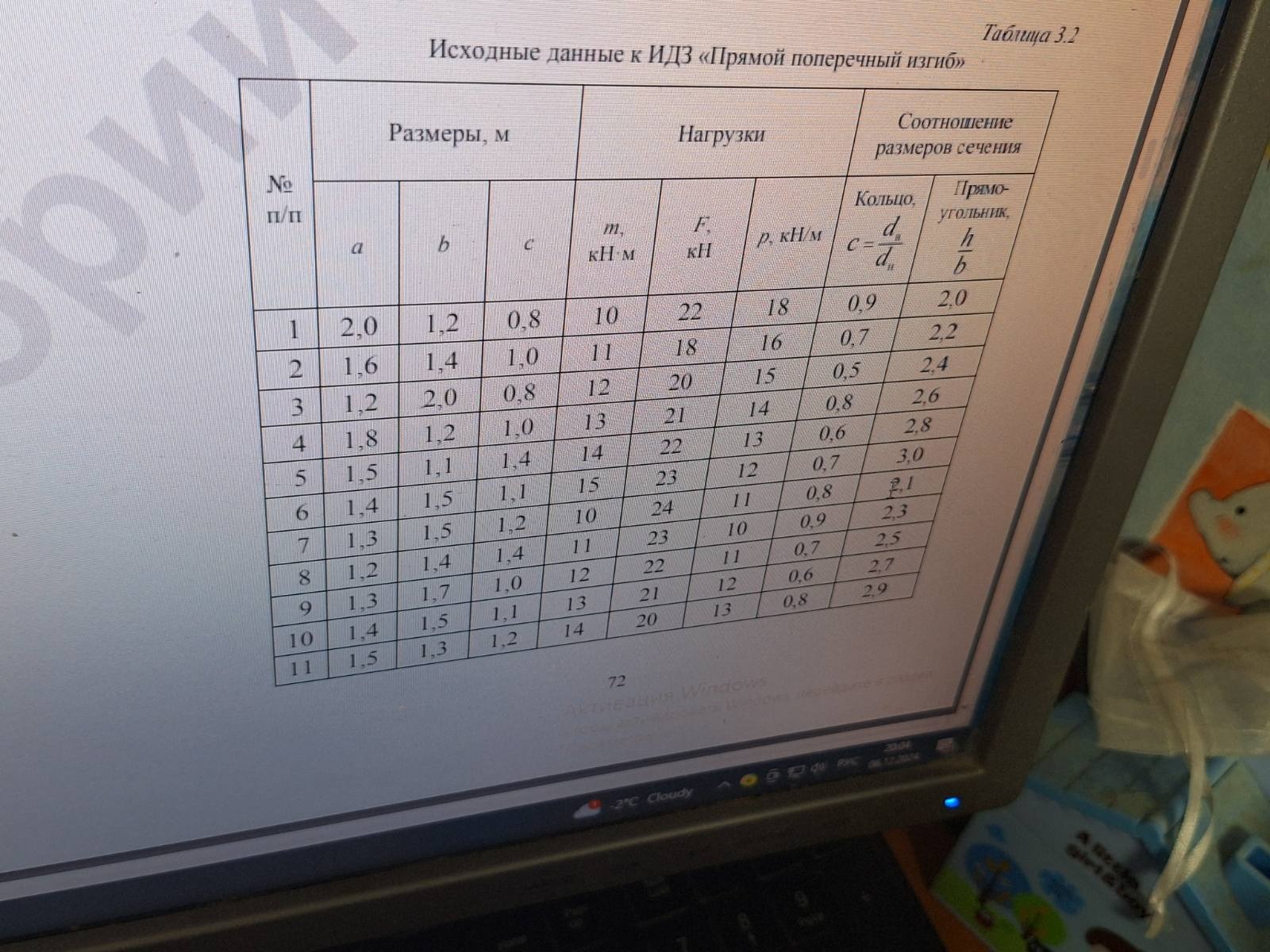

2. Input Data (from Table and Problem Statement)

For Variant 10:

• $a = 1.5 \, \text{m}, b = 1.3 \, \text{m}, c = 1.2 \, \text{m}$,
• $F = 20 \, \text{kN}, p = 12 \, \text{kN/m}, m = 20 \, \text{kN} \cdot \text{m}$,
• Rectangular cross-section: $h = 0.3 \, \text{m}, b = 0.2 \, \text{m}$.

3. Next Steps for Solution

Let me know if you'd like me to calculate:

1. Maximum bending moment (dangerous section),
2. Neutral axis inclination ($\tan \alpha_0$),
3. Normal stresses at critical points,
4. Stress diagrams for three sections,
5. A step-by-step explanation for clarity.

Would you like a detailed walkthrough of any specific step?

5 Related Questions:

1. What is the significance of the neutral axis in bending analysis?
2. How is the bending moment affected by different load types (e.g., point vs. distributed)?
3. Why do we need to calculate normal stresses at specific points?
4. How do rectangular vs. circular cross-sections affect bending analysis?
5. What role does superposition play in beam loading analysis?

Tip: For inclined bending, always resolve loads into perpendicular axes to calculate stresses effectively!
