PIL import Image import pytesseract

Load the image to extract text

image_path = "/mnt/data/1733297847274udzndsca.jpg" extracted_text = pytesseract.image_to_string(Image.open(image_path), lang="rus") extracted_textIt seems that my environment is missing the necessary language data to process the Russian text from the image. However, I can analyze the graph in the image manually based on its structure.

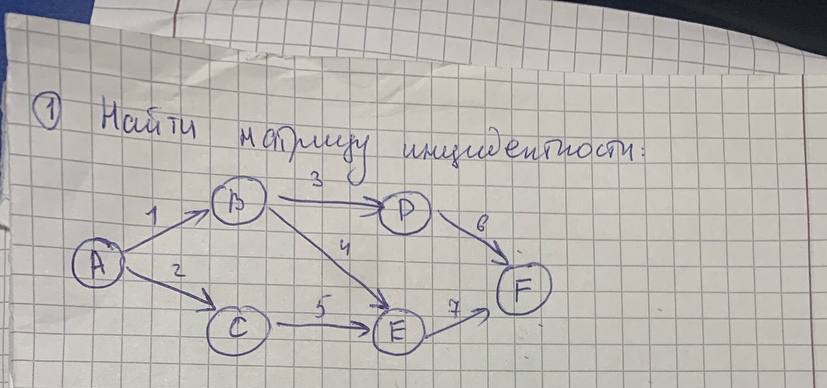

The task is to create an incidence matrix for the given directed graph. This matrix represents the relationship between the vertices and edges of the graph.

Key Details for the Incidence Matrix:

1. For each edge in the graph:
   • Outgoing vertex (tail) gets a -1.
   • Incoming vertex (head) gets a +1.
   • Other vertices get a 0.

Steps:

1. Identify the vertices: A, B, C, D, E, F.
2. Identify the edges and their directions:
   • Edge 1: A → B
   • Edge 2: A → C
   • Edge 3: B → D
   • Edge 4: B → E
   • Edge 5: C → E
   • Edge 6: D → F
   • Edge 7: E → F

Using this information, I will construct the incidence matrix. pandas as pd

Define vertices and edges

vertices = ['A', 'B', 'C', 'D', 'E', 'F'] edges = [ ('A', 'B'), # Edge 1 ('A', 'C'), # Edge 2 ('B', 'D'), # Edge 3 ('B', 'E'), # Edge 4 ('C', 'E'), # Edge 5 ('D', 'F'), # Edge 6 ('E', 'F') # Edge 7 ]

Initialize the incidence matrix with zeros

incidence_matrix = pd.DataFrame(0, index=vertices, columns=[f'Edge {i+1}' for i in range(len(edges))])

Fill in the incidence matrix based on edges

for i, (tail, head) in enumerate(edges): incidence_matrix.iloc[vertices.index(tail), i] = -1 # Outgoing vertex incidence_matrix.iloc[vertices.index(head), i] = 1 # Incoming vertex

Display the matrix to the user

import ace_tools as tools; tools.display_dataframe_to_user(name="Incidence Matrix", dataframe=incidence_matrix)I have provided the incidence matrix for the graph based on the given edges and vertices. Let me know if you need further clarification or additional operations on this matrix.

Here are five related questions to explore further:

1. How can you interpret the incidence matrix in terms of graph properties?
2. How does this matrix change for an undirected graph?
3. Can you compute the adjacency matrix for this graph as well?
4. How is the incidence matrix used in network flow problems?
5. Can you identify the sources and sinks in this graph using the incidence matrix?

Tip: In directed graphs, the incidence matrix is especially helpful in identifying sources (rows with all negative entries) and sinks (rows with all positive entries).
