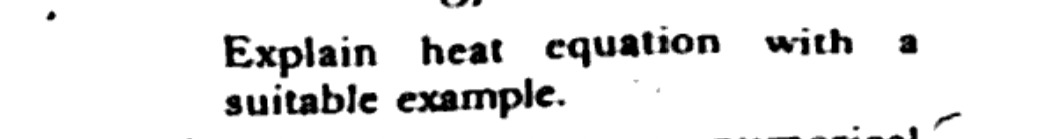

The heat equation is a partial differential equation that describes the distribution of heat (or variation in temperature) in a given region over time. Mathematically, it is expressed as:

$\frac{\partial u}{\partial t} = \alpha \nabla^2 u$

Here:

• $u(x, t)$ represents the temperature at position $x$ and time $t$,
• $\alpha$ is the thermal diffusivity constant, which depends on the material properties,
• $\nabla^2 u$ is the Laplacian of $u$, which represents the spatial variation of the temperature.

Example: Heat Flow in a Thin Rod

Consider a thin, insulated metal rod of length $L$ with the following conditions:

1. The temperature at the ends of the rod is maintained constant ($u(0, t) = u(L, t) = 0$).
2. The initial temperature distribution along the rod is given ($u(x, 0) = f(x)$).
3. Heat only flows along the length of the rod.

The heat equation for this system is:

$\frac{\partial u}{\partial t} = \alpha \frac{\partial^2 u}{\partial x^2},$

where $x$ is the position along the rod.

Solving for a Specific Case:

Suppose the rod has length $L = 1$, thermal diffusivity $\alpha = 1$, and initial temperature distribution $f(x) = \sin(\pi x)$.

The solution to the heat equation in this case is:

$u(x, t) = e^{-\pi^2 t} \sin(\pi x),$

where $e^{-\pi^2 t}$ represents the decay of heat over time due to diffusion.

This means that the temperature distribution will reduce exponentially as time progresses, eventually stabilizing to zero.

Would you like to see a detailed solution process for this equation or explore more examples?

Relative Questions:

1. What are the real-world applications of the heat equation?
2. How does the thermal diffusivity ($\alpha$) affect the solution to the heat equation?
3. Can the heat equation handle scenarios with non-constant boundary conditions?
4. How is the heat equation extended to three-dimensional cases?
5. What numerical methods are commonly used to solve the heat equation?

Tip:

When solving heat equations, carefully consider boundary and initial conditions, as they significantly
