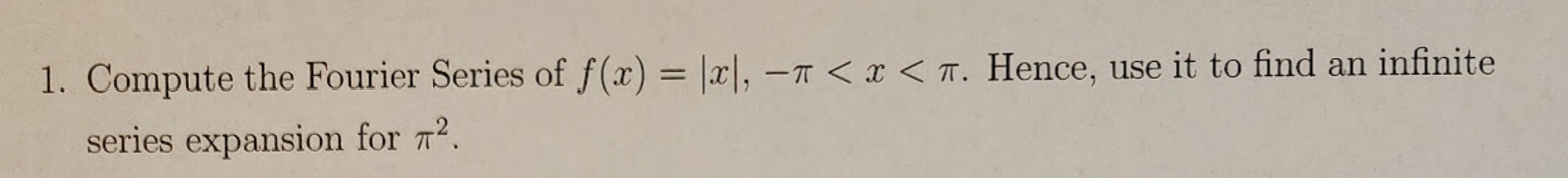

extracted_textThe problem asks to compute the Fourier Series of the function $f(x) = |x|$ over the interval $-\pi < x < \pi$, and then use the Fourier Series to find an infinite series expansion for $\pi^2$.

Solution Approach

To solve this, we will:

1. Find the Fourier Series of $f(x) = |x|$ on $-\pi < x < \pi$.
2. Use the Fourier coefficients to derive an infinite series expansion for $\pi^2$.

Step 1: Fourier Series for $f(x) = |x|$

The Fourier Series of a function $f(x)$ on the interval $-L < x < L$ is given by:

$f(x) = \frac{a_0}{2} + \sum_{n=1}^{\infty} \left( a_n \cos \left( \frac{n\pi x}{L} \right) + b_n \sin \left( \frac{n\pi x}{L} \right) \right)$

Where the coefficients are:

$a_0 = \frac{1}{L} \int_{-L}^{L} f(x) \, dx$ $a_n = \frac{2}{L} \int_{-L}^{L} f(x) \cos \left( \frac{n\pi x}{L} \right) \, dx$ $b_n = \frac{2}{L} \int_{-L}^{L} f(x) \sin \left( \frac{n\pi x}{L} \right) \, dx$

For $f(x) = |x|$ and $L = \pi$, the Fourier Series becomes:

$f(x) = \frac{a_0}{2} + \sum_{n=1}^{\infty} a_n \cos(nx) + \sum_{n=1}^{\infty} b_n \sin(nx)$

Step 2: Computing the Fourier Coefficients

• $a_0$ (Average value):

  $a_0 = \frac{1}{\pi} \int_{-\pi}^{\pi} |x| \, dx$

  This integral can be split as:

  $a_0 = \frac{1}{\pi} \left( 2 \int_0^{\pi} x \, dx \right) = \frac{2}{\pi} \left[ \frac{x^2}{2} \right]_0^{\pi} = \frac{2}{\pi} \cdot \frac{\pi^2}{2} = \pi$

• $a_n$ (Cosine coefficients):

  $a_n = \frac{2}{\pi} \int_{-\pi}^{\pi} |x| \cos(nx) \, dx$

  Because $|x|$ is an even function and $\cos(nx)$ is also even, the integral simplifies to:

  $a_n = \frac{4}{\pi} \int_0^{\pi} x \cos(nx) \, dx$

  This integral can be solved using integration by parts.

• $b_n$ (Sine coefficients):

  $b_n = \frac{2}{\pi} \int_{-\pi}^{\pi} |x| \sin(nx) \, dx$

  Since $|x|$ is even and $\sin(nx)$ is odd, the integral over the symmetric interval results in zero:

  $b_n = 0$

Step 3: Using the Fourier Series to Find $\pi^2$

After calculating the Fourier coefficients, we can use the series to find an infinite series for $\pi^2$.
