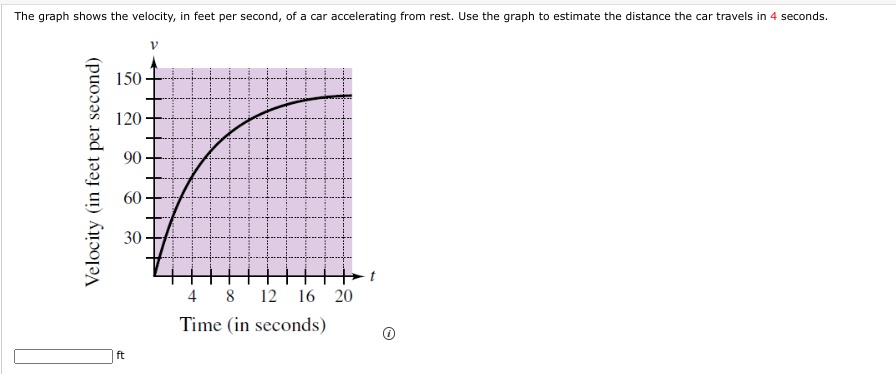

To estimate the distance the car travels in 4 seconds using the velocity-time graph, we can use the area under the curve from $t = 0$ to $t = 4$ seconds. The area under the velocity-time graph represents the distance traveled by the car.

Here's a step-by-step approach to solve this:

1. Identify the Shape and Units: The graph appears to show a curved line that we can approximate as a triangle or trapezoid in the first 4 seconds.

2. Estimate Velocity at 4 Seconds: From the graph, it looks like the velocity at $t = 4$ seconds is around 60 feet per second.

3. Calculate the Area Under the Curve (0 to 4 seconds):

   • Since the graph is roughly triangular in shape up to 4 seconds, we can approximate the area using the formula for the area of a triangle: $\text{Area} = \frac{1}{2} \times \text{base} \times \text{height}$
   • Here, the base (time interval) is 4 seconds, and the height (velocity at $t = 4$) is approximately 60 feet per second.
   • Plugging in the values: $\text{Distance} \approx \frac{1}{2} \times 4 \times 60 = 120 \text{ feet}$

Answer

The estimated distance the car travels in 4 seconds is approximately 120 feet.

Would you like a more detailed breakdown of the steps or have any questions?

Here are some related questions that expand on this topic:

1. How can we improve the accuracy of this estimate using more advanced techniques?
2. What if the graph represented a different unit, like meters instead of feet?
3. How does the shape of the graph affect the estimation process?
4. What is the significance of calculating the area under a velocity-time graph?
5. How would we calculate the distance if the graph followed a different curve?

Tip: For better accuracy with curves, consider dividing the area into smaller parts or using numerical integration methods like the trapezoidal rule.
