It seems you've uploaded an image with a physics problem involving electric fields, potential differences, and charges. I will help you break it down and solve the problem step by step.

Let's begin by looking at the first part of the question:

1. **Magnitude of the Electric Field between Disks 1 and 2:**
   We need to compute the electric field between two charged disks. The formula to calculate the electric field from a uniformly charged disk is given by:

   \[
   E = \frac{\sigma}{2 \epsilon_0} \left( 1 - \frac{z}{\sqrt{z^2 + R^2}} \right)
   \]

   where:
   - \(\sigma\) is the surface charge density,
   - \(\epsilon_0\) is the permittivity of free space,
   - \(z\) is the distance from the center of the disk to the point where the electric field is being calculated, and
   - \(R\) is the radius of the disk.

2. **Electric Field Direction:**
   The electric field between the disks will be directed from the positive to the negative charge, so we need to determine that direction in relation to the configuration of the disks.

3. **Potential Difference (V):**
   The potential difference can be found using the relationship between electric field and potential:

   \[
   V = - \int \vec{E} \cdot d\vec{r}
   \]

   where the electric field \(\vec{E}\) and the path \(d\vec{r}\) are integrated along the path between the points (in this case, from one disk to another).

4. **Choosing Paths for Potential Calculation:**
   The path for calculating the potential difference depends on the direction of the electric field and the configuration of the disks. We can compare the paths to understand which would result in the correct potential difference.

Would you like to begin solving one of these parts step by step or have a specific question about the problem? Let me know how you'd like to proceed!

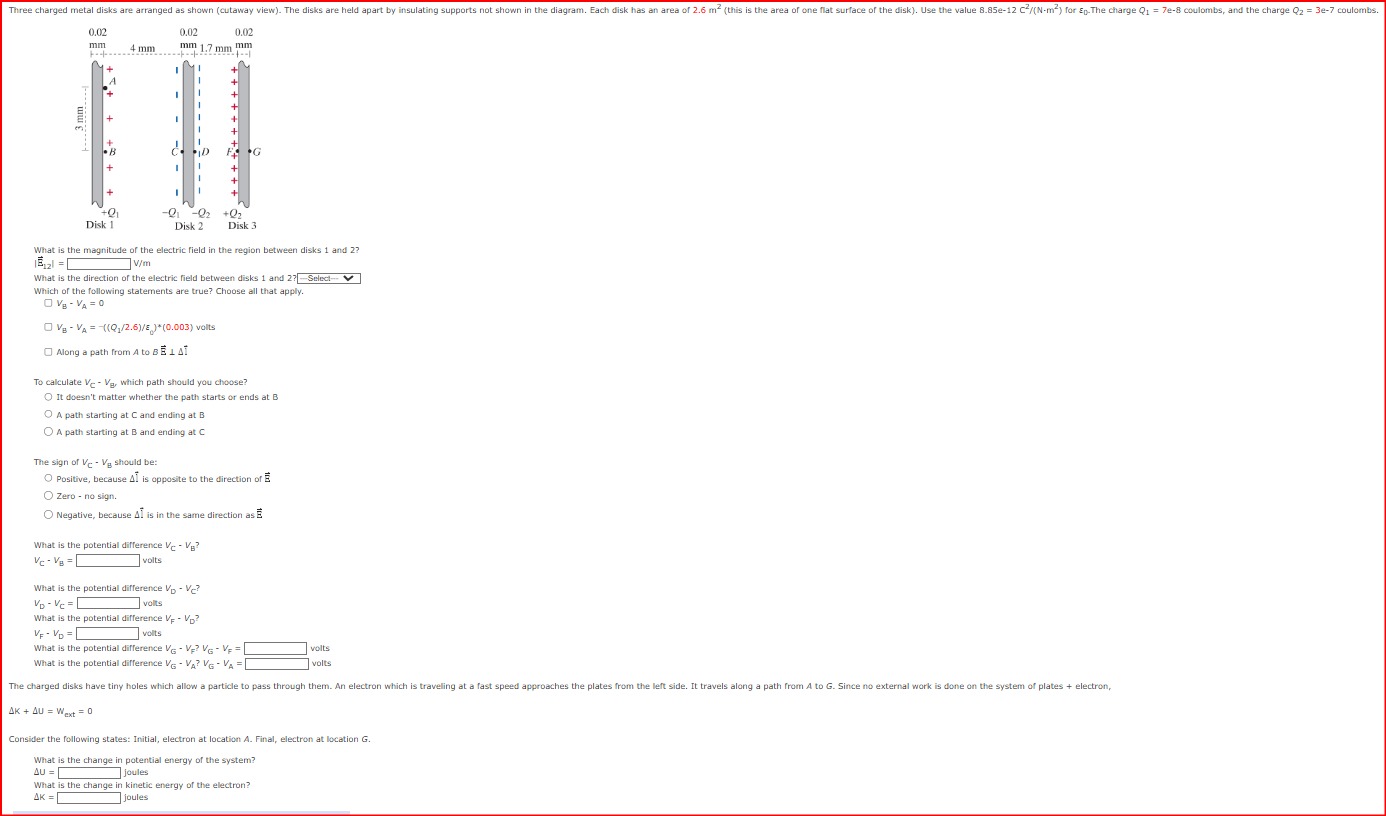

Three charged metal disks are arranged as shown in the diagram. The disks are held apart by insulating supports not shown in the diagram. Each disk has an area of 2.6 m². Given charge values: Q1 = 7e-8 C, Q2 = 3e-7 C. Calculate the magnitude and direction of the electric field between disks 1 and 2. Compute the potential differences between various points and analyze the motion of an electron traveling through the system.

Learn how to calculate the electric field and potential differences between three charged disks using electrostatic principles. This problem involves Gauss’s Law, integration for potential difference, and conservation of energy for electron motion. Suitable for advanced high school and undergraduate physics students.
