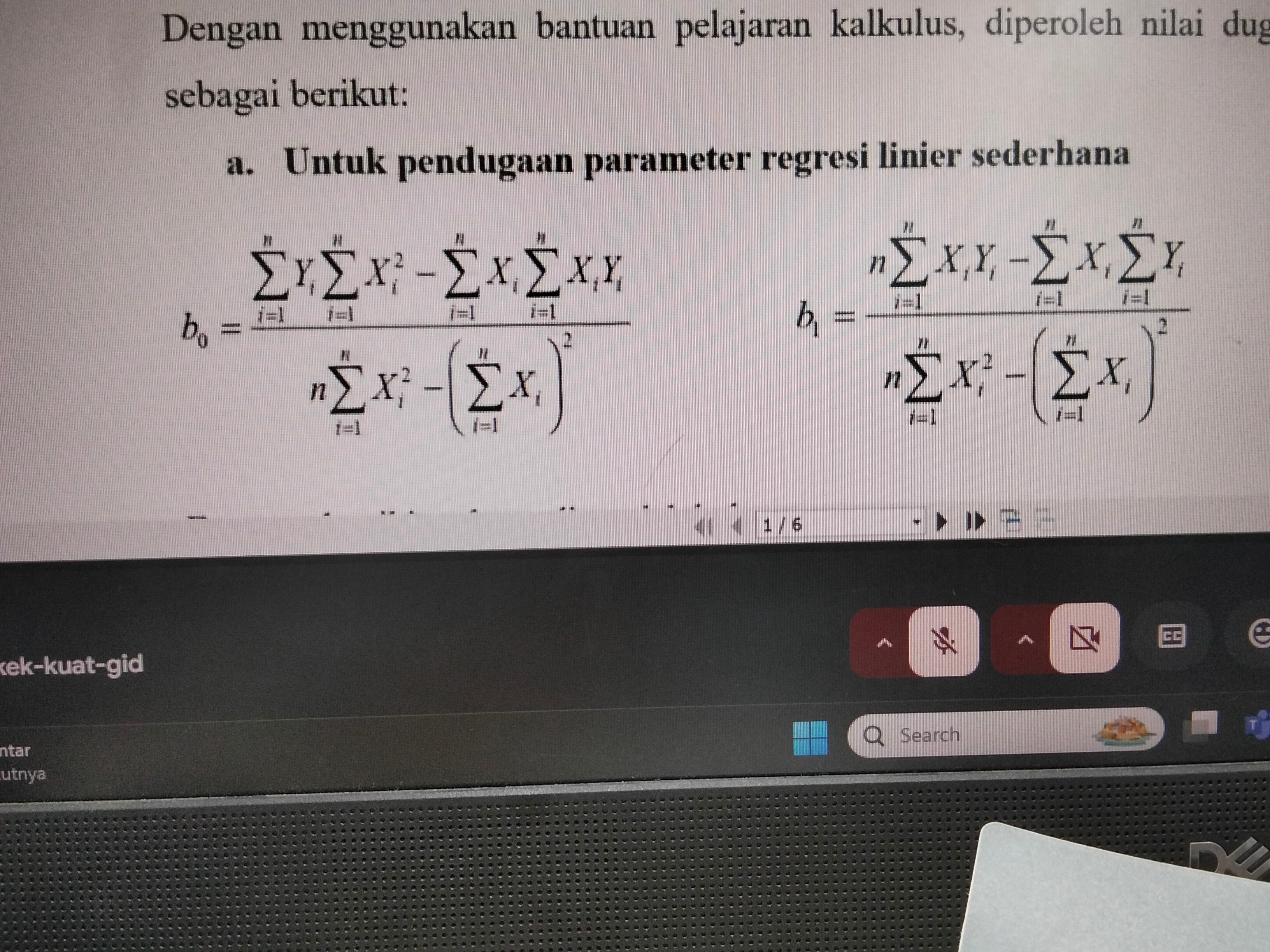

The formulas provided in your image represent the estimation formulas for the parameters $b_0$ (the intercept) and $b_1$ (the slope) in simple linear regression, derived using the least squares method. I will demonstrate the derivation for these formulas.

Derivation for Simple Linear Regression Parameters

In simple linear regression, we aim to fit a line: $y = b_0 + b_1 x$ where:

• $y$ is the dependent variable,
• $x$ is the independent variable,
• $b_0$ is the intercept, and
• $b_1$ is the slope.

To find the values of $b_0$ and $b_1$ that minimize the sum of squared residuals, we use the least squares method.

1. Define the Sum of Squared Residuals (S): $S = \sum_{i=1}^n \left( y_i - b_0 - b_1 x_i \right)^2$ where $y_i$ and $x_i$ are the observed data points.

2. Partial Derivatives with Respect to $b_0$ and $b_1$: To minimize $S$, we take the partial derivatives with respect to $b_0$ and $b_1$, set them to zero, and solve for $b_0$ and $b_1$.

   • Partial derivative with respect to $b_0$: $\frac{\partial S}{\partial b_0} = -2 \sum_{i=1}^n \left( y_i - b_0 - b_1 x_i \right) = 0$

   • Partial derivative with respect to $b_1$: $\frac{\partial S}{\partial b_1} = -2 \sum_{i=1}^n x_i \left( y_i - b_0 - b_1 x_i \right) = 0$

3. Solving the System of Equations: The two equations can be simplified as follows:

   • From the derivative with respect to $b_0$: $\sum_{i=1}^n y_i = n b_0 + b_1 \sum_{i=1}^n x_i$

   • From the derivative with respect to $b_1$: $\sum_{i=1}^n x_i y_i = b_0 \sum_{i=1}^n x_i + b_1 \sum_{i=1}^n x_i^2$

   We can rearrange these equations to solve for $b_0$ and $b_1$.

4. Solution for $b_1$: Solving the two equations simultaneously, we get: $b_1 = \frac{n \sum_{i=1}^n x_i y_i - \sum_{i=1}^n x_i \sum_{i=1}^n y_i}{n \sum_{i=1}^n x_i^2 - \left( \sum_{i=1}^n x_i \right)^2}$

5. Solution for $b_0$: Once $b_1$ is known, $b_0$ can be calculated as: $b_0 = \frac{\sum_{i=1}^n y_i \sum_{i=1}^n x_i^2 - \sum_{i=1}^n x_i \sum_{i=1}^n x_i y_i}{n \sum_{i=1}^n x_i^2 - \left( \sum_{i=1}^n x_i \right)^2}$

These equations give us the best-fitting line for the data points in terms of minimizing the squared residuals between the observed values and the predicted values on the line.

Would you like further details on any specific part of this derivation, or do you have any other questions?

Related Questions

1. How does the least squares method ensure the best fit for the line?
2. What are the assumptions underlying simple linear regression?
3. Can these formulas be extended to multiple linear regression?
4. How does changing one data point affect the values of $b_0$ and $b_1$?
5. Why is the slope ($b_1$) crucial in determining the relationship between $x$ and $y$?

Tip

When working with regression analysis, always check the assumptions of linearity, independence, homoscedasticity, and normality to validate the reliability of your model.
