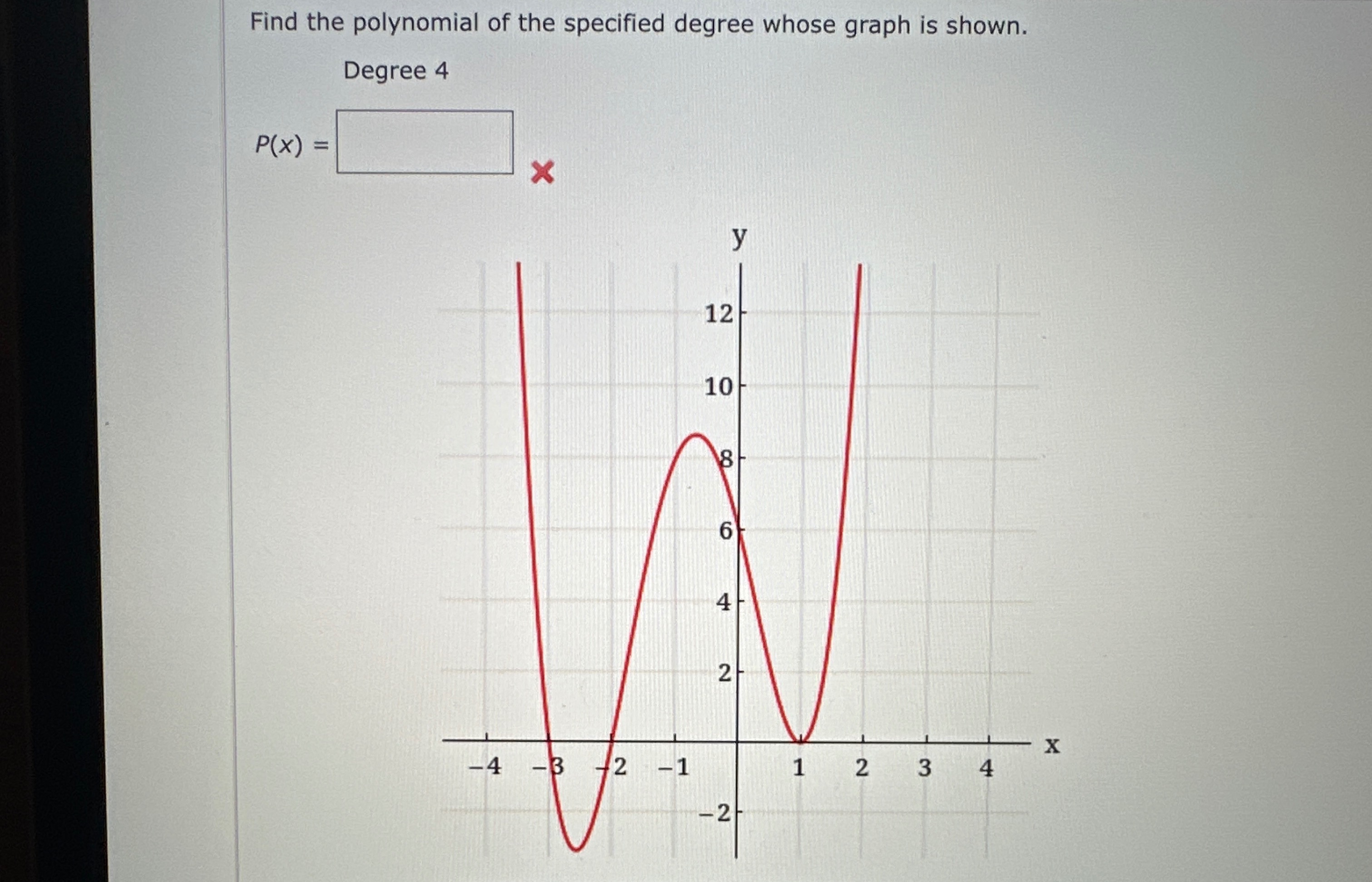

The graph provided shows a degree 4 polynomial with certain characteristics, such as intercepts and turning points. To determine the equation of the polynomial, we can use the x-intercepts (roots) and general structure of a degree 4 polynomial.

Observations:

1. Degree: The polynomial is of degree 4, meaning its general form will be: $P(x) = a(x - r_1)(x - r_2)(x - r_3)(x - r_4)$ where $r_1, r_2, r_3, r_4$ are the roots and $a$ is a constant scaling factor.

2. Roots (x-intercepts): From the graph, the polynomial crosses the x-axis at $x = -3$, $x = 1$, and touches (but doesn't cross) at $x = 0$ (indicating a double root).

   • The roots are $x = -3$, $x = 0$ (with multiplicity 2), and $x = 1$.

Thus, the polynomial can be written as: $P(x) = a(x + 3)(x)^2(x - 1)$

3. Coefficient $a$: To find the scaling factor $a$, we can use a point on the graph, such as the y-intercept, which is given at $P(0) = 0$, so we need a different point. For example, at $x = -2$, the approximate value of $y$ seems to be about $P(-2) \approx 8$.

Let's solve using this approximation: $P(-2) = a(-2 + 3)(-2)^2(-2 - 1) = a(1)(4)(-3) = -12a$ Given that $P(-2) \approx 8$, we set up the equation: $-12a = 8 \implies a = -\frac{2}{3}$

Final Polynomial:

$P(x) = -\frac{2}{3}(x + 3)x^2(x - 1)$

Let me know if you'd like to go into more detail, check the calculation, or if you have other questions.

Follow-up questions:

1. How do the multiplicities of roots affect the graph's behavior at intercepts?
2. Why does the graph touch the x-axis at $x = 0$ but crosses it at other points?
3. How can we use more precise points on the graph to improve accuracy in the constant $a$?
4. What would happen to the shape of the graph if the polynomial degree increased or decreased?
5. Could we use another method, such as fitting a polynomial through points, to verify this equation?

Tip:

Whenever determining polynomials from graphs, always observe the roots, behavior at intercepts, and use known points to determine the leading coefficient for accurate modeling.
