Math Problem Statement

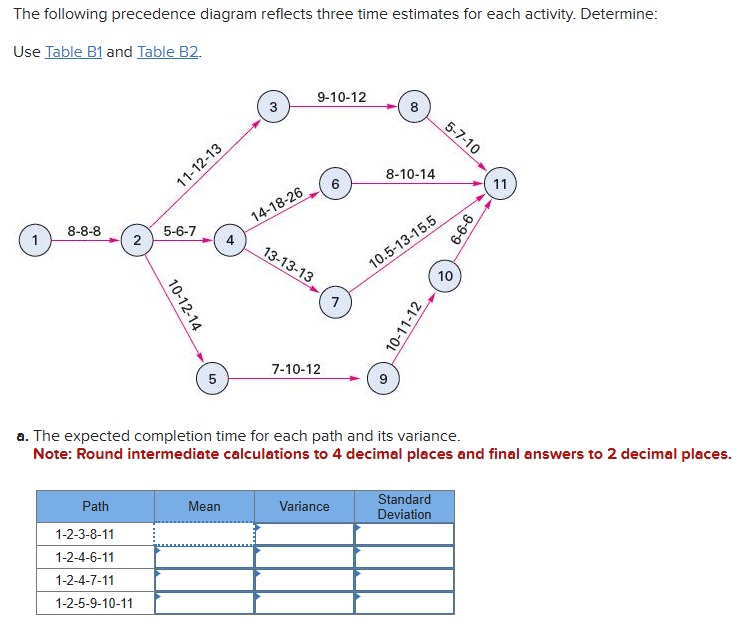

The provided precedence diagram requires determining the expected completion time for each path and its variance using three time estimates for each activity.

Solution


Load the image to inspect it

image_path = '/mnt/data/1732679319639jav58lnq.jpg' img = Image.open(image_path)

Display the image to analyze its content

I've opened the image, but I'll need to analyze its content to help you with any specific details or questions related to it. Could you clarify what you're looking for or

Ask a new question for Free

By Image

Drop file here or Click Here to upload

Math Problem Analysis

Mathematical Concepts

Project Management
Critical Path Analysis
Probability and Statistics

Formulas

Expected time (TE) = (a + 4m + b) / 6
Variance = [(b - a) / 6]^2

Theorems

Central Limit Theorem (implied in aggregating variances)

Suitable Grade Level

Undergraduate/Professional
