To find the mode of the given data, we need to analyze the grouped frequency distribution. The data is cumulative, and we must first convert it into a frequency distribution table before finding the modal class and applying the formula for the mode.

Step 1: Convert cumulative frequency to frequency

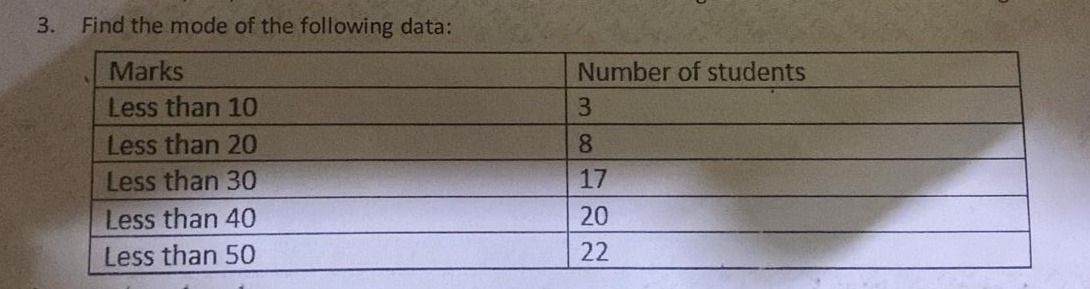

The given data is cumulative frequency:

To calculate frequency, subtract the cumulative frequency of the previous class from the current cumulative frequency:

Step 2: Identify the modal class

The modal class is the class interval with the highest frequency. From the frequency table, the class interval 20 - 30 has the highest frequency of 9. Therefore, the modal class is 20 - 30.

Step 3: Use the mode formula

The formula to find the mode is:

$\text{Mode} = L + \left( \frac{f_m - f_{1}}{2f_m - f_{1} - f_{2}} \right) \cdot h$

Where:

• $L$ = lower boundary of the modal class
• $f_m$ = frequency of the modal class
• $f_{1}$ = frequency of the class before the modal class
• $f_{2}$ = frequency of the class after the modal class
• $h$ = class width

From the table:

• $L = 20$ (lower boundary of the class 20 - 30)
• $f_m = 9$
• $f_{1} = 5$ (frequency of the class 10 - 20)
• $f_{2} = 3$ (frequency of the class 30 - 40)
• $h = 10$ (class width)

Step 4: Substitute values into the formula

$\text{Mode} = 20 + \left( \frac{9 - 5}{2(9) - 5 - 3} \right) \cdot 10$

Simplify the terms: $\text{Mode} = 20 + \left( \frac{4}{18 - 8} \right) \cdot 10$

$\text{Mode} = 20 + \left( \frac{4}{10} \right) \cdot 10$

$\text{Mode} = 20 + 4 = 24$

Final Answer:

The mode of the given data is 24.
