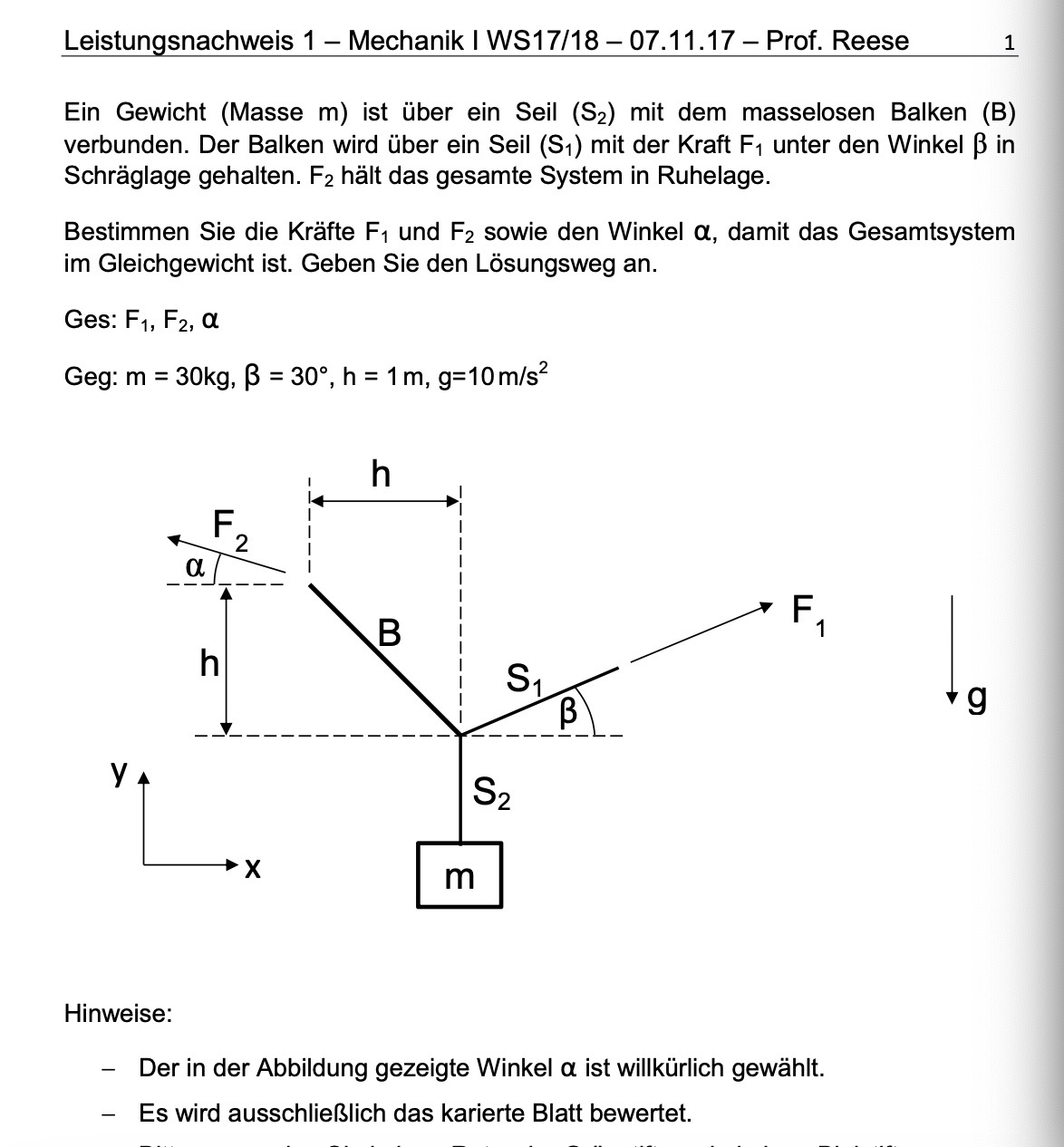

The problem presented here involves analyzing a static equilibrium situation with a weight $m$ connected by a massless beam $B$ and two tension forces $F_1$ and $F_2$ in a system of cables $S_1$ and $S_2$. The goal is to determine the forces $F_1$ and $F_2$ as well as the angle $\alpha$, given that the system is in equilibrium.

Given Data:

• Mass $m = 30 \, \text{kg}$
• Angle $\beta = 30^\circ$ (angle between the beam $B$ and $S_1$)
• Height $h = 1 \, \text{m}$
• Gravitational acceleration $g = 10 \, \text{m/s}^2$

Solution Approach:

1. Calculate the Weight Force (Gravitational Force): $F_{\text{gravity}} = m \cdot g = 30 \, \text{kg} \times 10 \, \text{m/s}^2 = 300 \, \text{N}$

2. Decompose Forces in the $x$- and $y$-Directions: Since the system is in static equilibrium, the sum of forces in both $x$- and $y$-directions must be zero.

3. Establish Force Equilibrium Equations:

   • For the $y$-axis: $F_1 \sin(\beta) + F_2 \sin(\alpha) = F_{\text{gravity}}$
   • For the $x$-axis: $F_1 \cos(\beta) = F_2 \cos(\alpha)$

4. Solve for $F_1$, $F_2$, and $\alpha$: By using trigonometric identities and substituting values, you can set up a system of equations to solve for $F_1$, $F_2$, and $\alpha$. This involves isolating each variable and solving iteratively or using substitution.

Would you like me to go through the algebraic steps in detail to derive $F_1$, $F_2$, and $\alpha$ explicitly?

Additional Questions

1. What happens to $F_1$ and $F_2$ if the angle $\beta$ changes?
2. How does changing the height $h$ affect the equilibrium conditions?
3. What would be the result if the mass $m$ were doubled?
4. How would the equilibrium equations change if the gravitational force were different (e.g., on another planet)?
5. How does the length of the beam $B$ affect the angle $\alpha$?

Tip:

When working with equilibrium problems, breaking down forces into components is essential.
