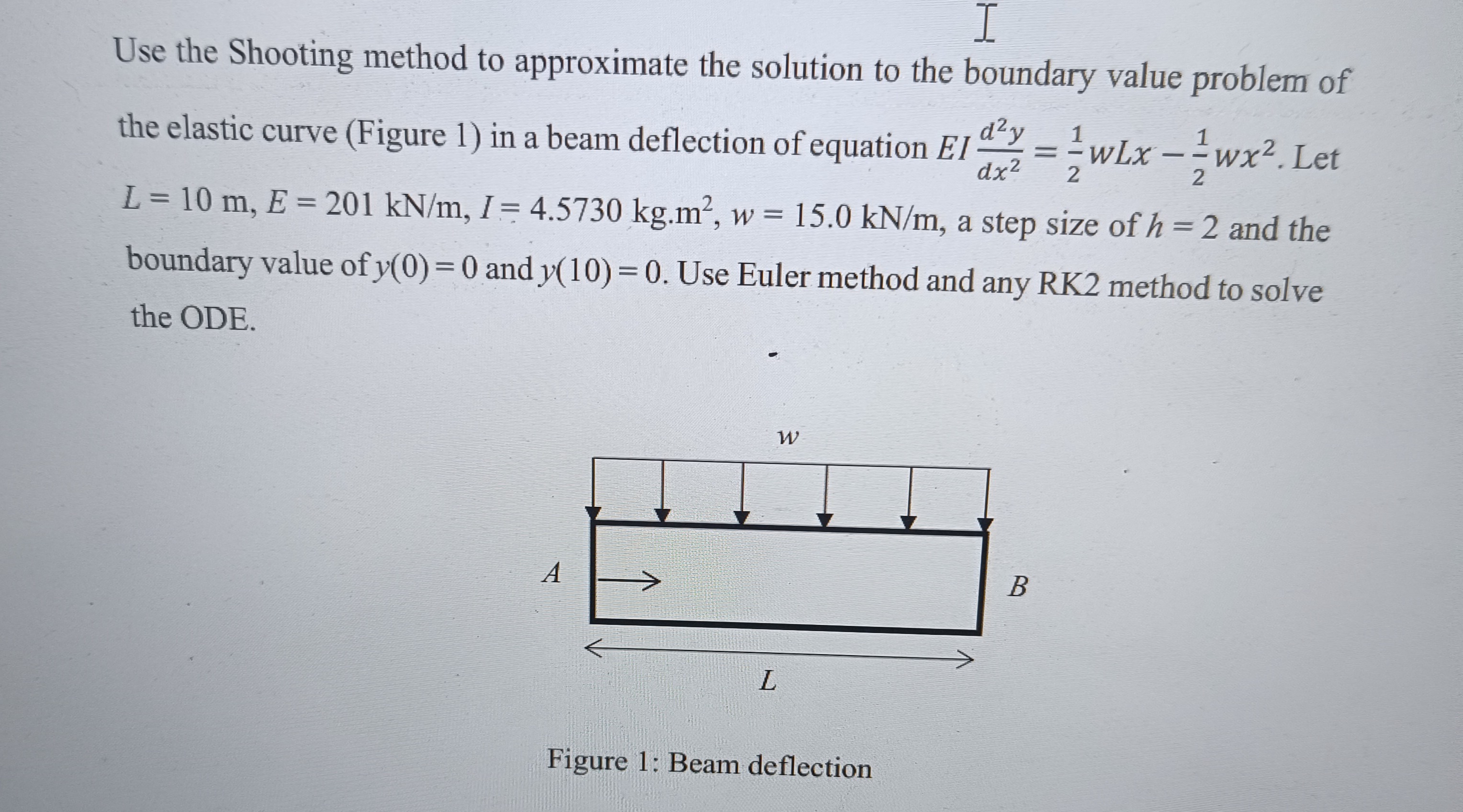

This problem involves solving a boundary value problem for the beam deflection equation using the shooting method. The deflection of a beam subjected to a distributed load is described by the equation:

$EI \frac{d^2y}{dx^2} = \frac{1}{2} wLx - \frac{1}{2} wx^2$

Where:

• $E$ is the Young's modulus (201 kN/m²),
• $I$ is the moment of inertia (4.5730 kg.m²),
• $w$ is the uniform load (15.0 kN/m),
• $L$ is the length of the beam (10 m),
• $y(0) = 0$ and $y(10) = 0$ are the boundary conditions.

Step 1: Reformulate the equation

To apply the shooting method, we first rewrite the second-order differential equation as a system of first-order ODEs. We introduce a new variable $v(x)$ such that:

$v(x) = \frac{dy}{dx}$

Thus, the system becomes:

• $\frac{dy}{dx} = v(x)$,
• $\frac{dv}{dx} = \frac{1}{2} \frac{wLx - wx^2}{EI}$.

This gives us two equations:

1. $\frac{dy}{dx} = v(x)$,
2. $\frac{dv}{dx} = \frac{1}{2} \frac{wLx - wx^2}{EI}$.

Step 2: Boundary conditions

The boundary conditions are:

• $y(0) = 0$,
• $y(10) = 0$.

For the shooting method, we need to guess an initial value for $v(0)$, solve the system, and adjust the guess until we get $y(10) = 0$.

Step 3: Euler method

To numerically solve the system, we use the Euler method, which approximates the solution using the following iterative scheme:

$y_{n+1} = y_n + h v_n$ $v_{n+1} = v_n + h \frac{1}{2EI} (wLx_n - wx_n^2)$

Where $h = 2$ m is the step size, and $x_n$ is the point at each iteration.

Step 4: Applying the RK2 method (Runge-Kutta 2nd order)

We also need to use a second-order Runge-Kutta method (RK2) for better accuracy. The RK2 method updates the values of $y$ and $v$ as follows:

1. Intermediate slopes: $k_1 = h f(x_n, y_n, v_n)$ $k_2 = h f(x_n + h, y_n + k_1, v_n + k_1)$

2. Update: $y_{n+1} = y_n + \frac{1}{2}(k_1 + k_2)$ $v_{n+1} = v_n + \frac{1}{2}(k_1 + k_2)$

This allows for better approximation than the simple Euler method.

Step 5: Iteration and shooting method

Now, using an initial guess for $v(0)$, you would:

1. Apply Euler or RK2 method to the system,
2. Check the value of $y(10)$,
3. Adjust the guess for $v(0)$ if necessary, and repeat the process until $y(10)$ is close to 0.
