Math Problem Statement

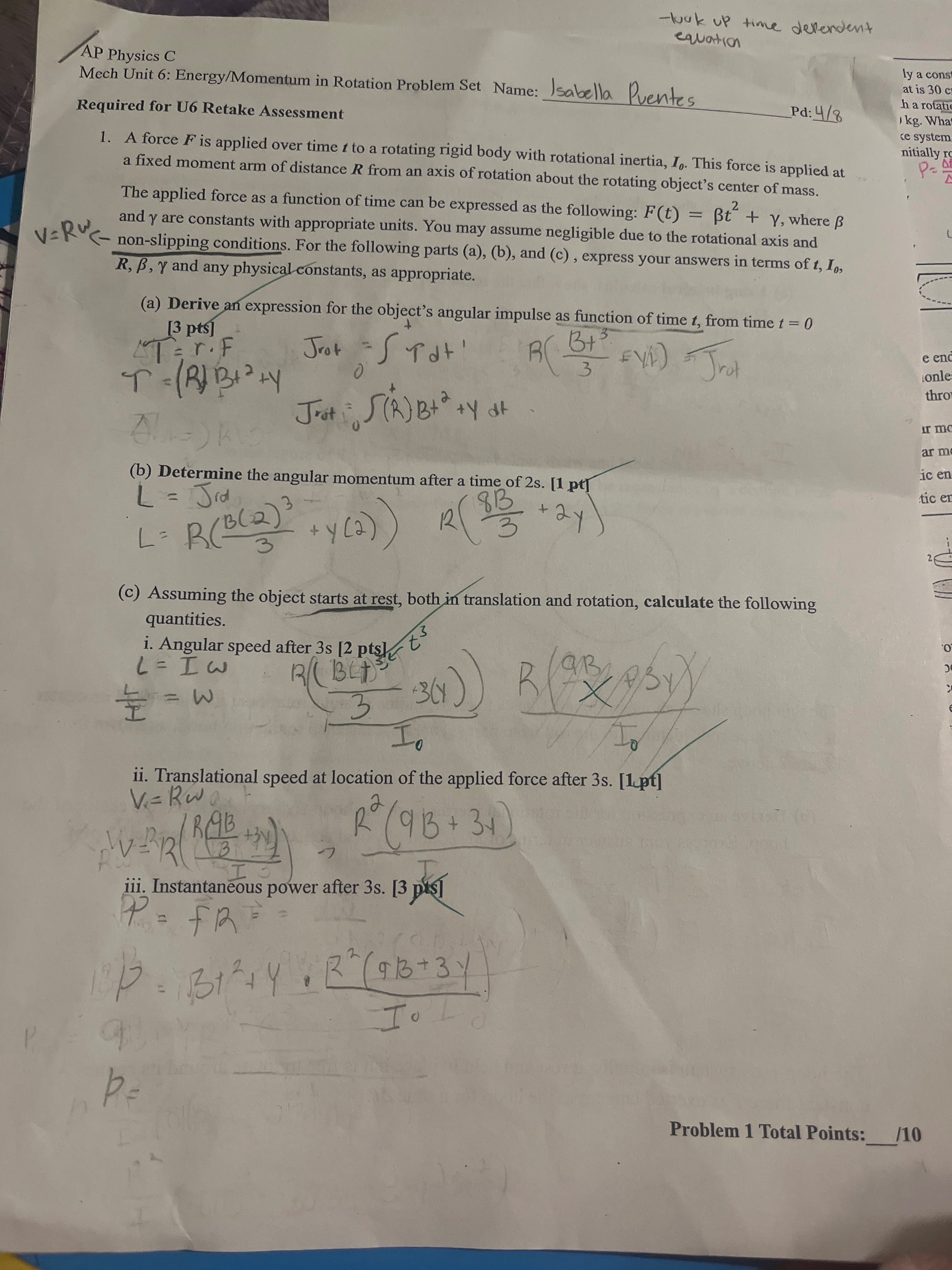

A force F is applied over time t to a rotating rigid body with rotational inertia I0, at a fixed moment arm of distance R from the axis of rotation. Given the force function F(t) = βt^2 + γ, determine (a) the angular impulse as a function of time, (b) the angular momentum at t = 2 seconds, and (c) the angular speed, translational speed, and instantaneous power at specified times.

Solution

It looks like you have an AP Physics C problem set on rotational motion, involving angular impulse, angular momentum, angular speed, and power. Here’s an outline of each part in case you'd like any clarifications or details on solving each:

  1. Angular Impulse (Part a):

    • This involves integrating the applied force function over time to get an expression for the angular impulse JrotJ_{\text{rot}}.
    • The applied force is F(t)=βt2+γF(t) = \beta t^2 + \gamma, and by integrating this force with respect to time from t=0t = 0 to tt, you should find JrotJ_{\text{rot}} as a function of tt, β\beta, and γ\gamma.
  2. Angular Momentum at t=2t = 2 seconds (Part b):

    • Using the angular impulse found in part (a), you can determine the angular momentum LL at t=2t = 2 seconds.
    • Since the object starts from rest, the angular momentum should equal the angular impulse up to that time.
  3. Angular Speed After 3 Seconds (Part c.i):

    • Angular speed ω\omega can be found by using L=IωL = I \omega, where LL is the angular momentum derived in previous steps and II is the rotational inertia.
  4. Translational Speed (Part c.ii):

    • For this, you'll use v=Rωv = R \omega, where RR is the distance from the axis to the point where the force is applied.
  5. Instantaneous Power at t=3t = 3 seconds (Part c.iii):

    • Instantaneous power can be calculated with P=τωP = \tau \omega, where τ\tau is the torque at t=3t = 3 seconds and ω\omega is the angular velocity at that time.

Would you like more detailed solutions or explanations for any specific part of this problem set?


Here are five related questions for further exploration:

  1. How would the angular impulse change if the force was applied at a constant rate instead of a time-dependent one?
  2. How does the rotational inertia II affect the angular speed after a given time?
  3. What additional steps would be required if the object had an initial angular velocity?
  4. How would frictional torque impact the instantaneous power calculation at t=3t = 3 seconds?
  5. How could you calculate the total work done by the applied force over a specified time interval?

Tip: Remember to check units consistently, especially when dealing with time-dependent forces, to ensure the dimensional accuracy of your solutions.

Ask a new question for Free

By Image

Drop file here or Click Here to upload

Math Problem Analysis

Mathematical Concepts

Calculus
Physics - Rotational Dynamics
Impulse and Momentum
Angular Kinematics
Torque and Power

Formulas

Angular impulse: J_rot = ∫ F(t) * R dt
Angular momentum: L = I0 * ω
Angular speed: ω = L / I0
Translational speed: v = R * ω
Instantaneous power: P = τ * ω

Theorems

Impulse-Momentum Theorem
Rotational Kinematics

Suitable Grade Level

Grades 11-12 (AP Physics C level)
