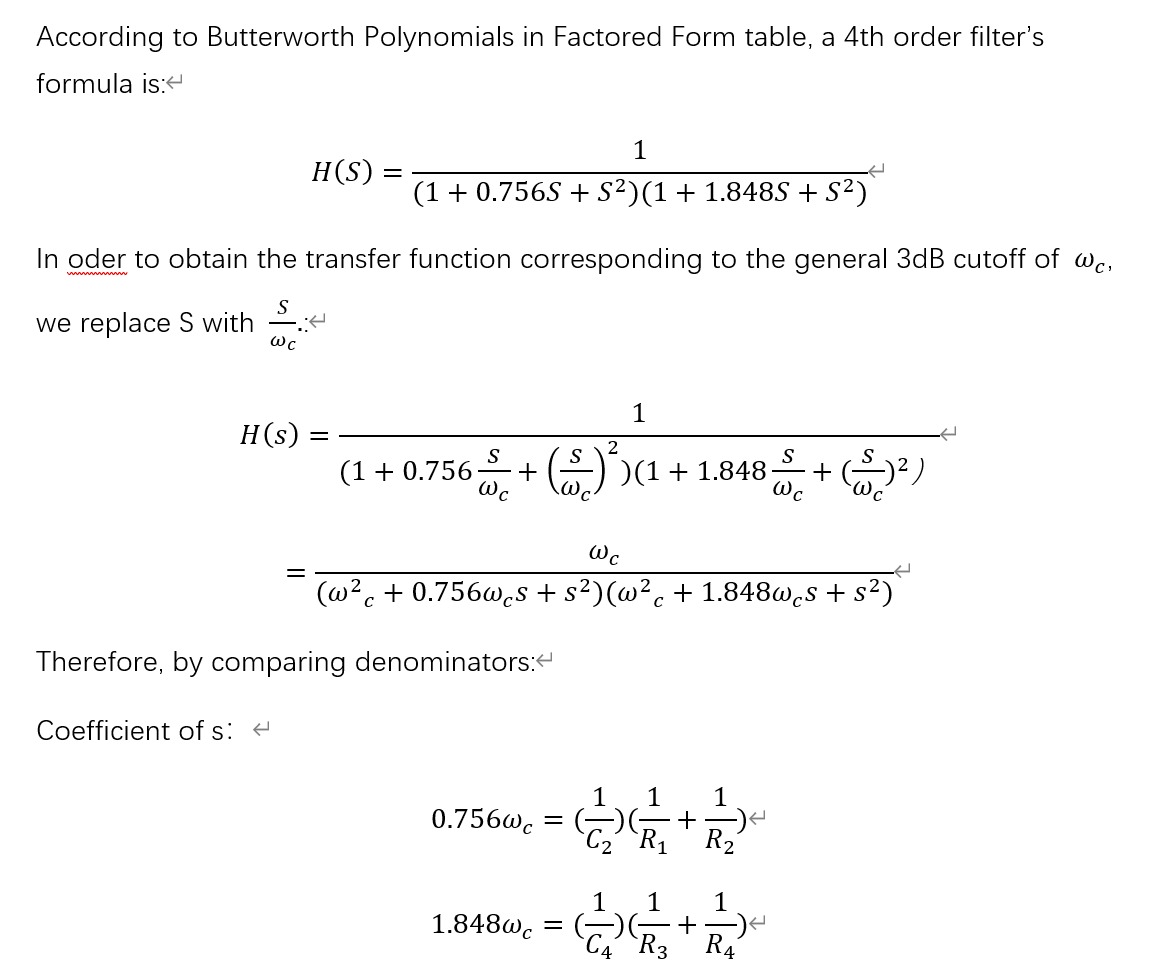

Yes, I can analyze and summarize this method for calculating the component values of a 4th-order Butterworth filter. The process described involves:

1. Starting from the Butterworth polynomial in factored form.
2. Modifying the formula to generalize it for a 3dB cutoff frequency $\omega_c$ by substituting $S$ with $\frac{S}{\omega_c}$.
3. Expanding the equation to determine the transfer function $H(S)$ for the desired cutoff frequency.
4. Comparing the coefficients in the denominator to relate the values of $\omega_c$ to the filter's components (capacitors and resistors) using the equations:
   • $0.756\omega_c = \frac{1}{C_2}( \frac{1}{R_1} + \frac{1}{R_2} )$
   • $1.848\omega_c = \frac{1}{C_4}( \frac{1}{R_3} + \frac{1}{R_4} )$

This approach ensures the proper component values are selected to meet the 4th-order Butterworth filter design requirements.

Would you like me to go into further detail about any step, verify this with examples, or discuss practical implementation?

Here are 5 related questions for further exploration:

1. How do you calculate the actual component values given specific $\omega_c$?
2. What are the practical implications of using ideal versus real components in this design?
3. How does the Butterworth filter compare to other filter types (e.g., Chebyshev, elliptic)?
4. Can this design be implemented with active components, and how would it differ?
5. What are the effects of tolerances in resistors and capacitors on the filter's performance?

Tip: Always double-check component tolerances and verify the final design using a simulation tool to ensure the desired cutoff frequency and filter behavior are achieved.
