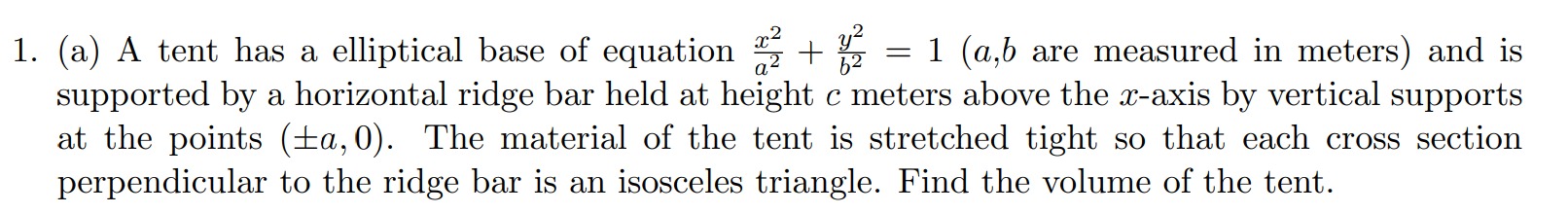

This problem requires us to calculate the volume of the tent described.

Problem Breakdown:

1. The tent has an elliptical base described by the equation:
   $\frac{x^2}{a^2} + \frac{y^2}{b^2} = 1$ where $a$ and $b$ are the semi-major and semi-minor axes of the ellipse, respectively.

2. A horizontal ridge bar is at a height $c$ meters above the x-axis, passing through points $(\pm a, 0, c)$.

3. Each vertical cross-section perpendicular to the ridge bar is an isosceles triangle with its base on the ellipse and vertex at the ridge bar.

Volume of the Tent:

The volume of the tent can be found by integrating the area of the cross-sectional isosceles triangles along the length of the ridge bar.

Cross-Sectional Area:

1. At a point $x$ on the ridge bar, the base of the isosceles triangle lies on the ellipse at height $y$: $y = b \sqrt{1 - \frac{x^2}{a^2}}.$ Thus, the length of the base of the triangle is $2y$:
   $\text{Base length} = 2b \sqrt{1 - \frac{x^2}{a^2}}.$

2. The height of the triangle is the distance from the ridge bar (at $z = c$) to the base (at $z = 0$), which is simply $c$.

3. The area of the cross-sectional triangle is: $A(x) = \frac{1}{2} \cdot \text{Base} \cdot \text{Height} = \frac{1}{2} \cdot 2b \sqrt{1 - \frac{x^2}{a^2}} \cdot c = bc \sqrt{1 - \frac{x^2}{a^2}}.$

Volume Integration:

To find the total volume of the tent, integrate the cross-sectional area along the ridge bar, from $-a$ to $a$: $V = \int_{-a}^{a} A(x) \, dx = \int_{-a}^{a} bc \sqrt{1 - \frac{x^2}{a^2}} \, dx.$

1. Factor out constants $bc$: $V = bc \int_{-a}^{a} \sqrt{1 - \frac{x^2}{a^2}} \, dx.$

2. Use a substitution to simplify the integral: Let $x = a\sin\theta$, so $dx = a\cos\theta \, d\theta$, and when $x = \pm a$, $\theta = \pm \frac{\pi}{2}$. The integral becomes: $V = bc \int_{-\frac{\pi}{2}}^{\frac{\pi}{2}} \sqrt{1 - \sin^2\theta} \cdot a\cos\theta \, d\theta.$

3. Simplify using $\sqrt{1 - \sin^2\theta} = \cos\theta$: $V = bc \int_{-\frac{\pi}{2}}^{\frac{\pi}{2}} a\cos^2\theta \, d\theta.$

4. Factor out $a$: $V = abc \int_{-\frac{\pi}{2}}^{\frac{\pi}{2}} \cos^2\theta \, d\theta.$

5. Use the identity $\cos^2\theta = \frac{1 + \cos(2\theta)}{2}$: $V = abc \int_{-\frac{\pi}{2}}^{\frac{\pi}{2}} \frac{1 + \cos(2\theta)}{2} \, d\theta.$

6. Split the integral: $V = \frac{abc}{2} \left[ \int_{-\frac{\pi}{2}}^{\frac{\pi}{2}} 1 \, d\theta + \int_{-\frac{\pi}{2}}^{\frac{\pi}{2}} \cos(2\theta) \, d\theta \right].$

7. Compute the integrals:

   • $\int_{-\frac{\pi}{2}}^{\frac{\pi}{2}} 1 \, d\theta = \pi$,
   • $\int_{-\frac{\pi}{2}}^{\frac{\pi}{2}} \cos(2\theta) \, d\theta = 0$ (since $\cos(2\theta)$ is symmetric about the origin).

   Thus: $V = \frac{abc}{2} \cdot \pi = \frac{\pi abc}{2}.$

Final Answer:

The volume of the tent is: $V = \frac{\pi abc}{2}.$

Would you like me to clarify any part or expand on this explanation?

Related Questions:

1. What is the equation of an ellipse, and how are $a$ and $b$ defined?
2. How is the area of a triangle determined given its base and height?
3. Why is $\cos^2\theta = \frac{1 + \cos(2\theta)}{2}$ useful in integration?
4. How does symmetry simplify integral calculations in this problem?
5. What is the physical significance of the parameter $c$ in this scenario?

Tip:

Always verify units when calculating volumes, especially when integrating over geometric shapes!
