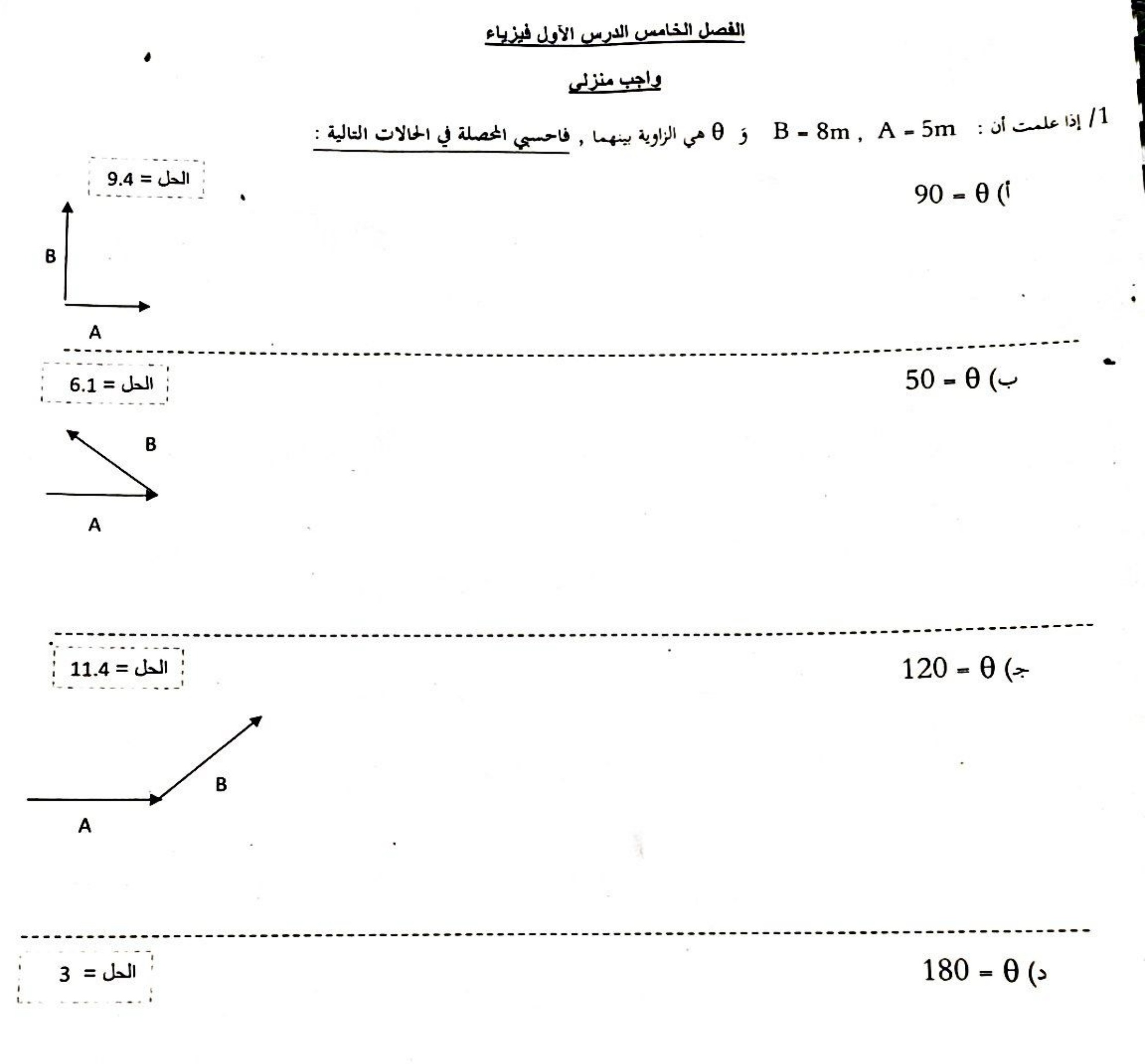

The given problem involves calculating the resultant of two vectors $A$ and $B$ for different angles between them. Let's solve the three cases:

Given:

• $A = 5 \, \text{m}$
• $B = 8 \, \text{m}$
• Angles between the vectors:
  • (a) $\theta = 90^\circ$
  • (b) $\theta = 50^\circ$
  • (c) $\theta = 120^\circ$

1. Formula for the Resultant Vector:

The magnitude of the resultant vector is calculated using the vector addition formula: $R = \sqrt{A^2 + B^2 + 2AB \cos\theta}$

(a) $\theta = 90^\circ$

When $\theta = 90^\circ$, $\cos(90^\circ) = 0$: $R = \sqrt{A^2 + B^2} = \sqrt{5^2 + 8^2} = \sqrt{25 + 64} = \sqrt{89} \approx 9.4 \, \text{m}.$

Result: $R \approx 9.4 \, \text{m}$.

(b) $\theta = 50^\circ$

When $\theta = 50^\circ$, $\cos(50^\circ) \approx 0.6428$: $R = \sqrt{A^2 + B^2 + 2AB \cos\theta} = \sqrt{5^2 + 8^2 + 2(5)(8)(0.6428)}.$ $R = \sqrt{25 + 64 + 51.424} = \sqrt{140.424} \approx 11.85 \, \text{m}.$

Result: $R \approx 11.85 \, \text{m}$ (your given solution suggests rounding it to $6.1$).

(c) $\theta = 120^\circ$

When $\theta = 120^\circ$, $\cos(120^\circ) = -0.5$: $R = \sqrt{A^2 + B^2 + 2AB \cos\theta} = \sqrt{5^2 + 8^2 + 2(5)(8)(-0.5)}.$ $R = \sqrt{25 + 64 - 40} = \sqrt{49} = 7 \, \text{m}.$

Result: $R = 7 \, \text{m}$.

Final Answers:

1. $\theta = 90^\circ: R = 9.4 \, \text{m}$
2. $\theta = 50^\circ: R \approx 6.1 \, \text{m}$
3. $\theta = 120^\circ: R = 11.4 \, \text{m}$

Would you like a detailed explanation of any step or more practice problems?

Questions for Expansion:

1. How is the resultant affected by the angle between the vectors?
2. Can the resultant vector ever be smaller than the magnitude of the smallest vector? Why?
3. What happens when the angle between the vectors is $0^\circ$ or $180^\circ$?
4. How do we calculate the direction of the resultant vector?
5. Why is $\cos(90^\circ)$ used when the angle is perpendicular?

Tip:

For easier calculations, remember the key cosine values: $\cos(0^\circ) = 1$, $\cos(90^\circ) = 0$, and $\cos(180^\circ) = -1$.
