Math Problem Statement

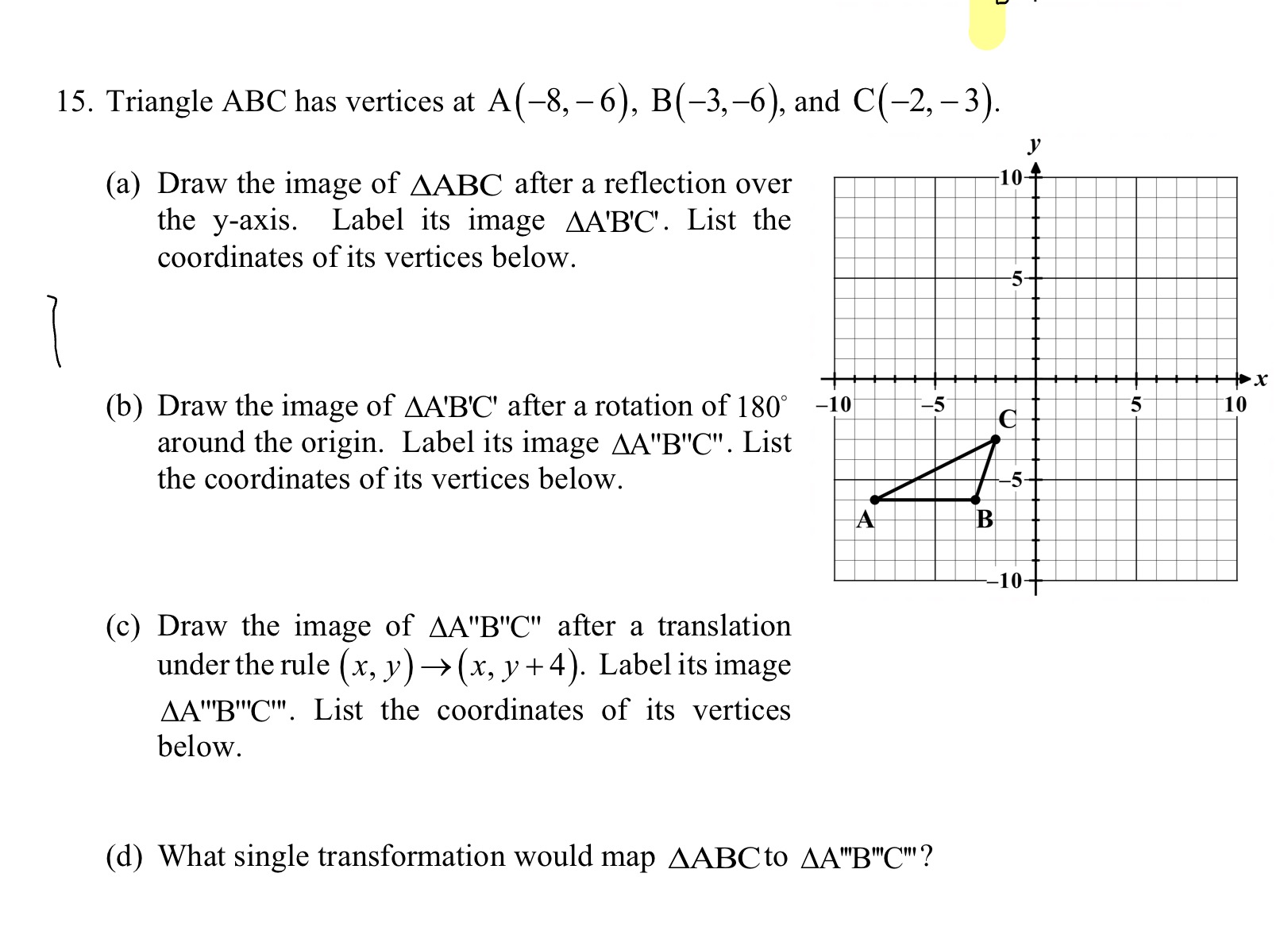

Triangle ABC has vertices at A(-8, -6), B(-3, -6), and C(-2, -3). (a) Draw the image of ΔABC after a reflection over the y-axis. Label its image ΔA'B'C'. List the coordinates of its vertices below. (b) Draw the image of ΔA'B'C' after a rotation of 180° around the origin. Label its image ΔA"B"C". List the coordinates of its vertices below. (c) Draw the image of ΔA"B"C" after a translation under the rule (x, y) → (x, y+4). Label its image ΔA""B""C"". List the coordinates of its vertices below. (d) What single transformation would map ΔABC to ΔA""B""C""?

Solution

Let's work through the transformations step by step.

Given:

  • Triangle ABCABC with vertices:
    A(8,6),B(3,6),C(2,3)A(-8, -6), B(-3, -6), C(-2, -3).

(a) Reflection over the yy-axis

For a reflection over the yy-axis, the rule is:
(x,y)(x,y)(x, y) \to (-x, y)
Applying this to each vertex:

  1. A(8,6)A(8,6)A(-8, -6) \to A' (8, -6)
  2. B(3,6)B(3,6)B(-3, -6) \to B' (3, -6)
  3. C(2,3)C(2,3)C(-2, -3) \to C' (2, -3)

Coordinates of ABC\triangle A'B'C':

  • A(8,6),B(3,6),C(2,3)A'(8, -6), B'(3, -6), C'(2, -3).

(b) Rotation of 180180^\circ about the origin

The rule for 180180^\circ rotation about the origin is:
(x,y)(x,y)(x, y) \to (-x, -y)
Applying this to ABCA'B'C':

  1. A(8,6)A(8,6)A'(8, -6) \to A'' (-8, 6)
  2. B(3,6)B(3,6)B'(3, -6) \to B'' (-3, 6)
  3. C(2,3)C(2,3)C'(2, -3) \to C'' (-2, 3)

Coordinates of ABC\triangle A''B''C'':

  • A(8,6),B(3,6),C(2,3)A''(-8, 6), B''(-3, 6), C''(-2, 3).

(c) Translation under the rule (x,y)(x,y+4)(x, y) \to (x, y+4)

This rule shifts each vertex 4 units up.
Applying this to ABCA''B''C'':

  1. A(8,6)A(8,10)A''(-8, 6) \to A''' (-8, 10)
  2. B(3,6)B(3,10)B''(-3, 6) \to B''' (-3, 10)
  3. C(2,3)C(2,7)C''(-2, 3) \to C''' (-2, 7)

Coordinates of ABC\triangle A'''B'''C''':

  • A(8,10),B(3,10),C(2,7)A'''(-8, 10), B'''(-3, 10), C'''(-2, 7).

(d) Single transformation to map ABCABC\triangle ABC \to \triangle A'''B'''C'''

From the transformations:

  1. Reflection over the yy-axis
  2. 180180^\circ rotation
  3. Translation up by 4 units

These three steps suggest the single transformation is a reflection combined with vertical translation, which ultimately maps ABC\triangle ABC to ABC\triangle A'''B'''C'''.


Final Summary:

  1. (a): A(8,6),B(3,6),C(2,3)A'(8, -6), B'(3, -6), C'(2, -3)
  2. (b): A(8,6),B(3,6),C(2,3)A''(-8, 6), B''(-3, 6), C''(-2, 3)
  3. (c): A(8,10),B(3,10),C(2,7)A'''(-8, 10), B'''(-3, 10), C'''(-2, 7)
  4. (d): The single transformation combines a reflection and translation.

Questions for Further Practice:

  1. What are the rules for reflections over the xx-axis and origin?
  2. How would a 9090^\circ rotation about the origin affect the coordinates?
  3. Can you determine the distance between AA and AA''' after all transformations?
  4. What happens if we reflect ABC\triangle ABC across y=xy = x?
  5. How do you describe the single transformation algebraically?

Tip: Always apply transformations step by step and verify using coordinate rules.
