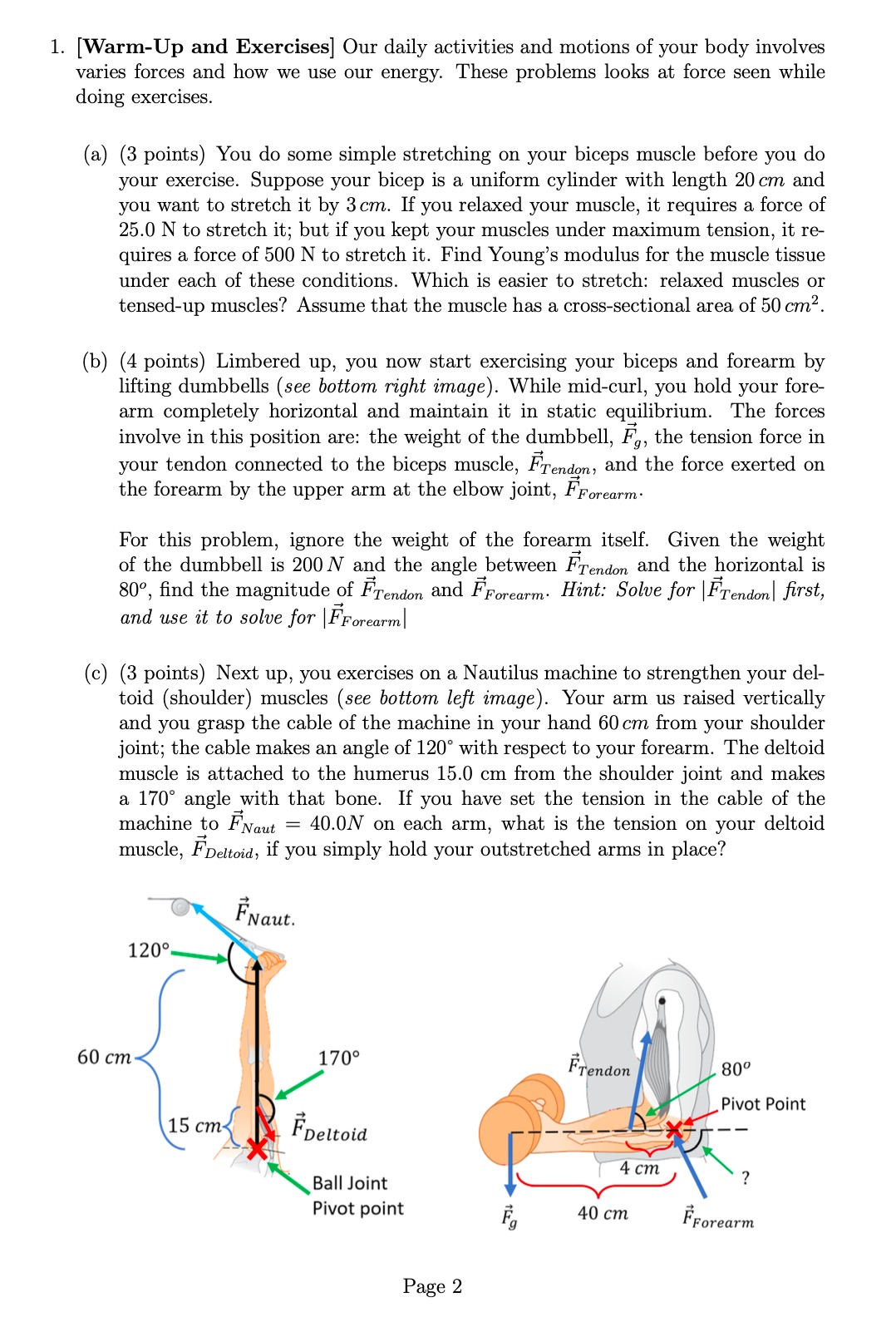

To solve part (b) of the problem, we calculate the forces involved in the scenario where the forearm is held in static equilibrium. Here’s how:

Problem Setup:

The system is in static equilibrium, meaning the sum of torques and forces acting on the forearm must be zero. The forces involved are:

1. $\mathbf{F}_g = 200 \, \text{N}$, acting vertically downward at a distance of $40 \, \text{cm}$ from the elbow joint (pivot).
2. $\mathbf{F}_{\text{Tendon}}$, at an angle of $80^\circ$ from the horizontal, located $4 \, \text{cm}$ from the elbow joint.
3. $\mathbf{F}_{\text{Forearm}}$, exerted by the upper arm at the elbow joint, acts to balance the forces horizontally and vertically.

Key assumptions:

• Ignore the weight of the forearm.
• Solve first for $\mathbf{F}_{\text{Tendon}}$ using the torque equilibrium equation.

Step 1: Torque Equilibrium

The torques are calculated about the elbow joint (pivot point). For equilibrium: $\sum \tau = 0$ $\mathbf{F}_g \cdot d_g = \mathbf{F}_{\text{Tendon}} \cdot d_{\text{Tendon}} \cdot \sin(80^\circ)$ Substitute known values: $200 \cdot 40 = \mathbf{F}_{\text{Tendon}} \cdot 4 \cdot \sin(80^\circ)$ $8000 = \mathbf{F}_{\text{Tendon}} \cdot 4 \cdot 0.9848$ $\mathbf{F}_{\text{Tendon}} = \frac{8000}{4 \cdot 0.9848} = 2030.2 \, \text{N}$

Step 2: Force Equilibrium

The forearm is in static equilibrium, so: $\sum F_x = 0 \quad \text{and} \quad \sum F_y = 0$

Horizontal force equilibrium:

$F_{\text{Forearm}, x} = F_{\text{Tendon}} \cdot \cos(80^\circ)$ $F_{\text{Forearm}, x} = 2030.2 \cdot \cos(80^\circ) = 2030.2 \cdot 0.1736 = 352.3 \, \text{N}$

Vertical force equilibrium:

$F_{\text{Forearm}, y} + F_{\text{Tendon}} \cdot \sin(80^\circ) = F_g$ $F_{\text{Forearm}, y} + 2030.2 \cdot 0.9848 = 200$ $F_{\text{Forearm}, y} = 200 - 1998.5 = -1798.5 \, \text{N}$

The total magnitude of $\mathbf{F}_{\text{Forearm}}$ is: $\mathbf{F}_{\text{Forearm}} = \sqrt{F_{\text{Forearm}, x}^2 + F_{\text{Forearm}, y}^2}$ $\mathbf{F}_{\text{Forearm}} = \sqrt{352.3^2 + (-1798.5)^2}$ $\mathbf{F}_{\text{Forearm}} = \sqrt{124113.3 + 3234572.25} = \sqrt{3358685.6}$ $\mathbf{F}_{\text{Forearm}} = 1833.8 \, \text{N}$

Final Answers:

1. $\mathbf{F}_{\text{Tendon}} = 2030.2 \, \text{N}$
2. $\mathbf{F}_{\text{Forearm}} = 1833.8 \, \text{N}$
