Math Problem Statement

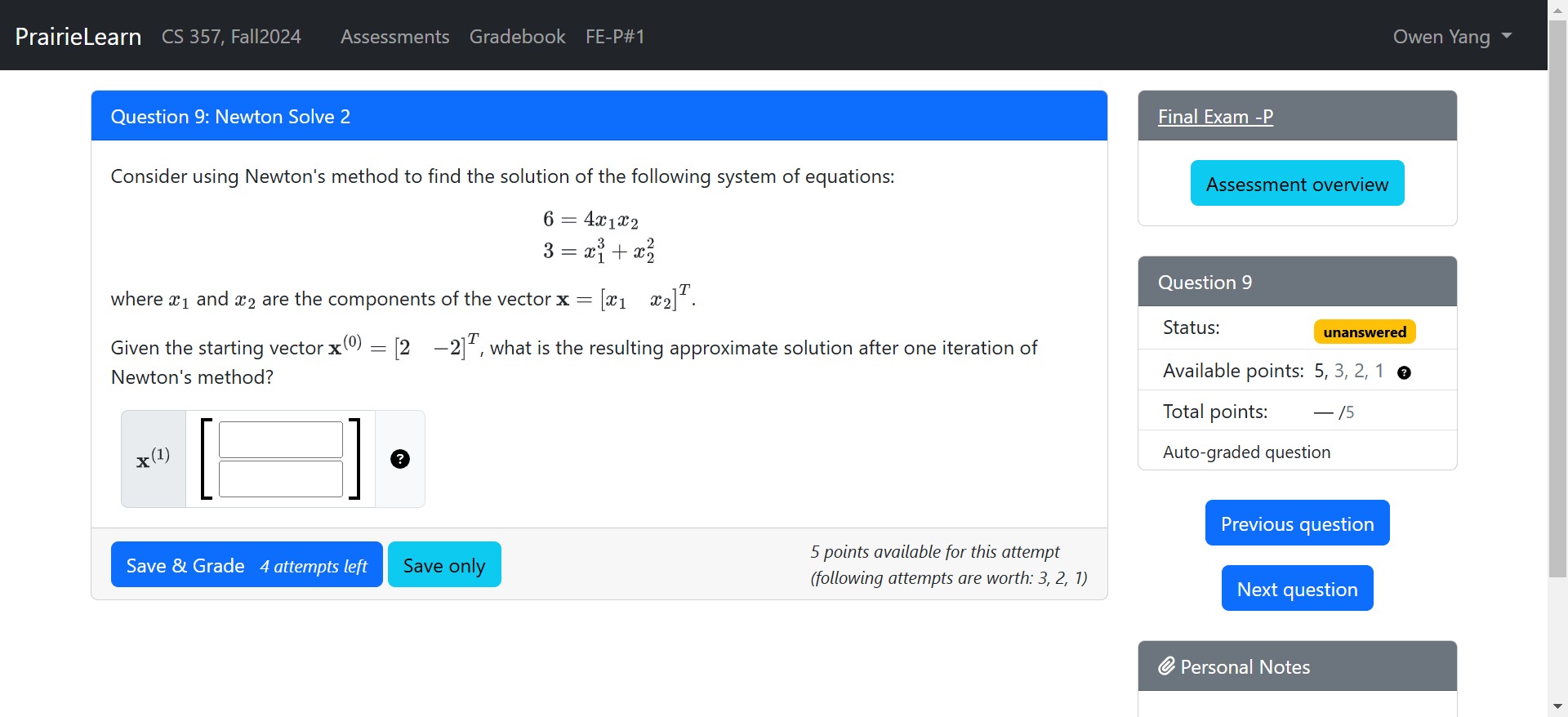

Solve system of equations using Newton's method

Solve system of equations using Newton's method

Solution

To solve this system of equations using Newton's method, follow these steps:

Step 1: Define the system of equations

The given equations are:

  1. f1(x1,x2)=6−4x1x2f_1(x_1, x_2) = 6 - 4x_1x_2
  2. f2(x1,x2)=3−x13−x22f_2(x_1, x_2) = 3 - x_1^3 - x_2^2

We aim to solve F(x)=0F(\mathbf{x}) = \mathbf{0}, where: F(x)=[f1(x1,x2)f2(x1,x2)].F(\mathbf{x}) = \begin{bmatrix} f_1(x_1, x_2) \\ f_2(x_1, x_2) \end{bmatrix}.

Step 2: Compute the Jacobian matrix

The Jacobian matrix JJ is:

\frac{\partial f_1}{\partial x_1} & \frac{\partial f_1}{\partial x_2} \\ \frac{\partial f_2}{\partial x_1} & \frac{\partial f_2}{\partial x_2} \end{bmatrix}.$$ Compute the partial derivatives: - $$\frac{\partial f_1}{\partial x_1} = -4x_2$$ - $$\frac{\partial f_1}{\partial x_2} = -4x_1$$ - $$\frac{\partial f_2}{\partial x_1} = -3x_1^2$$ - $$\frac{\partial f_2}{\partial x_2} = -2x_2$$ Thus: $$J(\mathbf{x}) = \begin{bmatrix} -4x_2 & -4x_1 \\ -3x_1^2 & -2x_2 \end{bmatrix}.$$ ### Step 3: Apply Newton's iteration formula The Newton's method update is: $$\mathbf{x}^{(k+1)} = \mathbf{x}^{(k)} - J(\mathbf{x}^{(k)})^{-1} F(\mathbf{x}^{(k)}).$$ Given the starting point $$\mathbf{x}^{(0)} = \begin{bmatrix} 2 \\ -2 \end{bmatrix}$$, compute one iteration. ### Step 4: Evaluate $$F(\mathbf{x}^{(0)})$$ $$F(\mathbf{x}^{(0)}) = \begin{bmatrix} 6 - 4(2)(-2) \\ 3 - 2^3 - (-2)^2 \end{bmatrix} = \begin{bmatrix} 6 - (-16) \\ 3 - 8 - 4 \end{bmatrix} = \begin{bmatrix} 22 \\ -9 \end{bmatrix}.$$ ### Step 5: Evaluate $$J(\mathbf{x}^{(0)})$$ $$J(\mathbf{x}^{(0)}) = \begin{bmatrix} -4(-2) & -4(2) \\ -3(2)^2 & -2(-2) \end{bmatrix} = \begin{bmatrix} 8 & -8 \\ -12 & 4 \end{bmatrix}.$$ ### Step 6: Solve for $$\Delta \mathbf{x} = J^{-1} F(\mathbf{x}^{(0)})$$ The inverse of $$J(\mathbf{x}^{(0)})$$ is computed as: $$J^{-1} = \frac{1}{\text{det}(J)} \begin{bmatrix} 4 & 8 \\ 12 & 8 \end{bmatrix},$$ where \( \text{det}(J) = (8)(8)-(3*

Ask a new question for Free

By Image

Drop file here or Click Here to upload

Math Problem Analysis

Mathematical Concepts

Newton's method
Nonlinear equations
Linear algebra
Jacobian matrix

Formulas

Newton's iteration formula: x^(k+1) = x^(k) - J(x^(k))^-1 * F(x^(k))
Jacobian matrix: J(x) = [[∂f1/∂x1, ∂f1/∂x2], [∂f2/∂x1, ∂f2/∂x2]]
Determinant and inverse of 2x2 matrix

Theorems

Newton's method for solving nonlinear systems

Suitable Grade Level

Undergraduate - Junior/Senior (CS/Mathematics/Engineering students)
