Math Problem Statement

pivot the 3 to obtain a new tableau and corresponding solutions

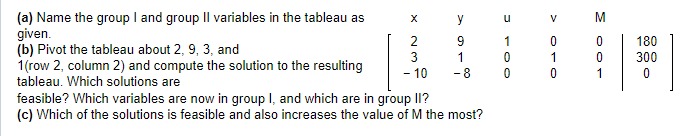

Pivot the tableau about 2, 9, 3, and 1 (row 2, column 2) and compute the solution to the resulting tableau. Identify feasible solutions, the new group I and group II variables, and determine which feasible solution maximizes M.

Solution

Let's go through the question step by step:

(a) Identify Group I and Group II Variables

The tableau provided is a standard form in a linear programming problem setup. In this context:

  • Group I variables (basic variables) are those currently in the basis and have corresponding columns that act as identity matrix columns.
  • Group II variables (non-basic variables) are those that are currently out of the basis and usually have zero entries in their columns for the basic variable rows.

From the tableau:

x & y & u & v & M & \text{RHS} \\ \hline 2 & 9 & 1 & 0 & 0 & 180 \\ 3 & 1 & 0 & 1 & 0 & 300 \\ -10 & -8 & 0 & 0 & 1 & 0 \\ \end{array}$$ In this setup: - **Basic variables (Group I)**: `u`, `v`, and `M` (since they each have a column that resembles part of the identity matrix). - **Non-basic variables (Group II)**: `x` and `y`. ### (b) Pivoting the Tableau To perform a pivot, we need to: 1. Identify the pivot element, which is the element we want to make the new basis variable. 2. Adjust the tableau to reflect this new basis. #### Step 1: Choosing the Pivot Element We are instructed to pivot about the entry `3` in row 2, column 2 (associated with variable `x`). This means we will bring `x` into the basis, replacing `v`. #### Step 2: Performing Row Operations To make `x` a basic variable, we perform the following row operations: 1. **Make the pivot element (3) into 1** by dividing row 2 by 3. $$R_2 = \frac{1}{3}R_2 = \left[1, \frac{1}{3}, 0, \frac{1}{3}, 0, 100\right]$$ 2. **Zero out the other entries in the x-column** by adjusting rows 1 and 3. - For row 1: $$R_1 = R_1 - 2 \times R_2$$ - For row 3: $$R_3 = R_3 + 10 \times R_2$$ Let's calculate these adjustments: **Row 1 Adjustment**: \[ R_1 = [2, 9, 1, 0, 0, 180] - 2 \times \left[1, \frac{1}{3}, 0, \frac{1}{3}, 0, 100\right] \] $$R_1 = [0, 8\frac{2}{3}, 1, -\frac{2}{3}, 0, -20]$$ **Row 3 Adjustment**: \[ R_3 = [-10, -8, 0, 0, 1, 0] + 10 \times \left[1, \frac{1}{3}, 0, \frac{1}{3}, 0, 100\right] \] $$R_3 = [0, -\frac{2}{3}, 0, \frac{10}{3}, 1, 1000]$$ The new tableau is: \[ \begin{array}{ccccc|c} x & y & u & v & M & \text{RHS} \\ \hline 0 & 8\frac{2}{3} & 1 & -\frac{2}{3} & 0 & -20 \\ 1 & \frac{1}{3} & 0 & \frac{1}{3} & 0 & 100 \\ 0 & -\frac{2}{3} & 0 & \frac{10}{3} & 1 & 1000
