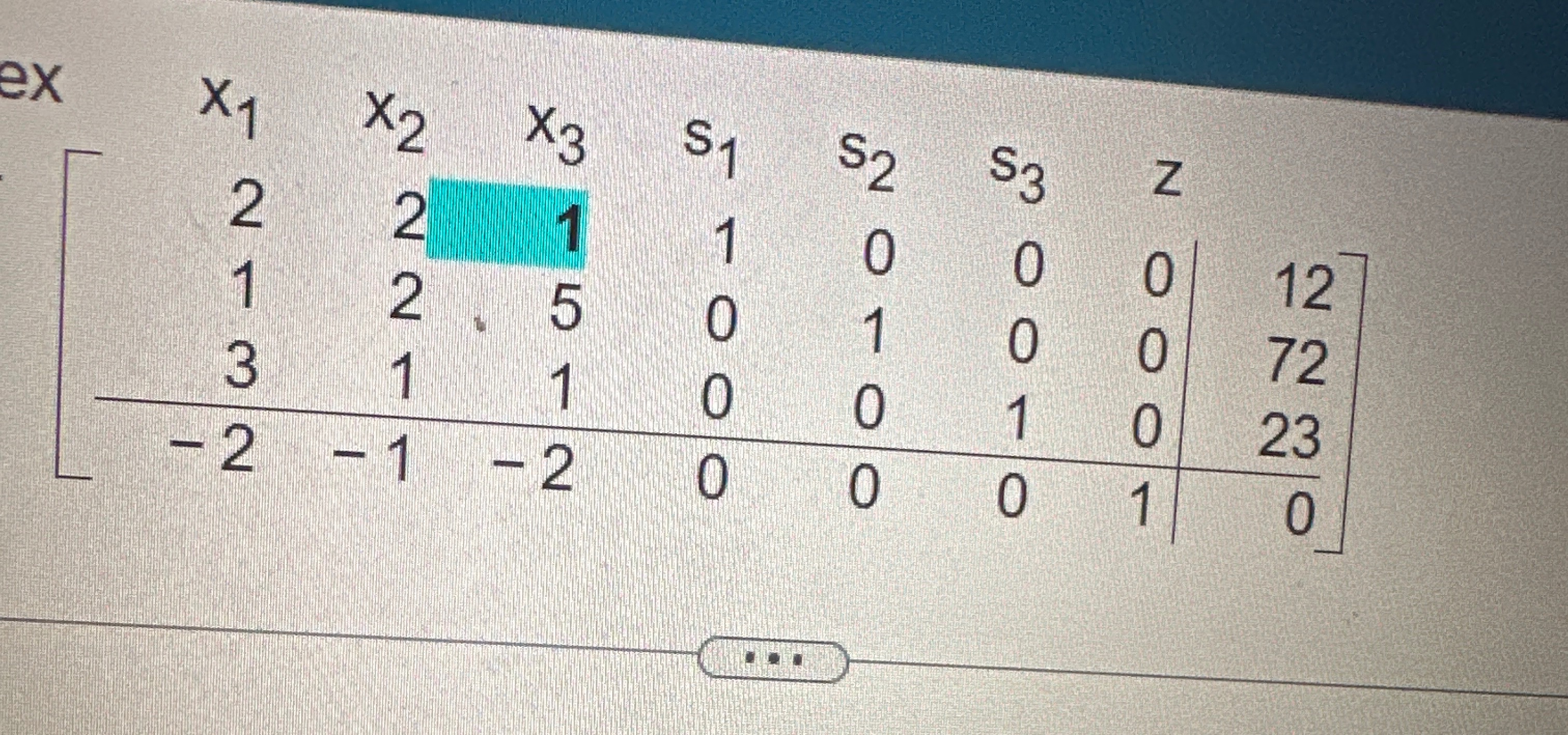

The image you provided shows a simplex tableau, typically used for solving linear programming problems. Here's an interpretation of the tableau:

1. Basic Variables:

   • The basic variables are likely $x_1, x_2, x_3, s_1, s_2, s_3$ and their values (which would be in the last column of the tableau) are 12, 72, and 23, respectively.

2. Non-Basic Variables:

   • The row at the bottom (with coefficients of $x_1, x_2, x_3$) shows the reduced costs, which are negative for $x_1$, $x_2$, and $x_3$, indicating that further improvement is possible.

3. Entering Variable:

   • To improve the objective function, the variable with the most negative reduced cost should enter the basis. In this case, $x_1$ with a reduced cost of -2 appears to be a good candidate.

4. Leaving Variable:

   • To determine the leaving variable, you calculate the ratio of the constants (last column) to the corresponding coefficients in the entering variable’s column (first column for $x_1$).
   • The ratios are $12/2 = 6$, $72/1 = 72$, and $23/3 \approx 7.67$. The smallest ratio is 6, so the variable in the first row (possibly $s_1$) will leave the basis.

Would you like further details or help with the next steps of the simplex method?

Here are 5 relevant questions to expand on this information:

1. Would you like me to explain the pivoting process for this simplex tableau?
2. Should I clarify the role of basic and non-basic variables in this tableau?
3. Do you want me to go over how to identify the entering and leaving variables?
4. Do you need help with setting up the initial linear programming problem?
5. Would you like to know how to interpret the solution after all iterations?

Tip: Always check the reduced costs row carefully in each iteration of the simplex method to determine whether the current solution is optimal or if further improvement is possible.
