I see that you've uploaded an image related to a structural mechanics problem. I'll extract the mathematical details and solve the questions for you.

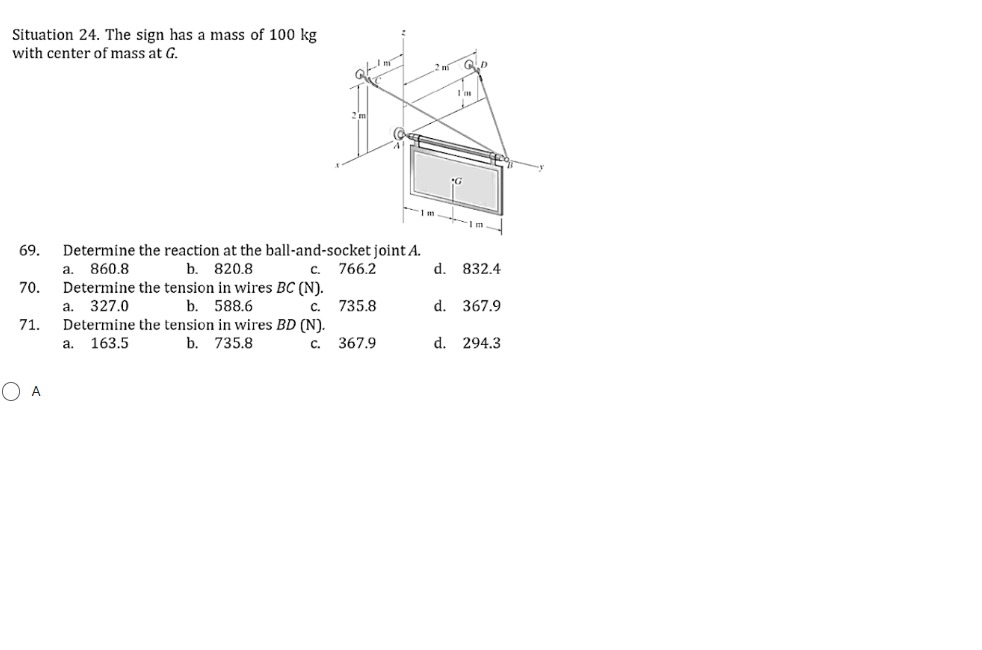

The given problem involves:

• A sign of mass 100 kg (which implies a gravitational force of 100 × 9.81 = 981 N acting at G).
• A ball-and-socket joint at A.
• Two supporting cables, BC and BD.

The required calculations:

1. Reaction at A (ball-and-socket joint).
2. Tension in wire BC.
3. Tension in wire BD.

I'll analyze the forces and moments to determine the correct answers. Give me a moment.### Step 1: Identify Forces and Coordinates We consider a 3D equilibrium analysis, applying Newton’s Laws.

Given Information:

• Mass of sign: 100 kg, so W = 981 N.
• Supports:
  • Ball-and-socket joint A (provides three unknown reaction forces: $A_x, A_y, A_z$).
  • Tension in wires BC and BD.

Coordinate System:

From the diagram:

• G (Center of Mass) is located at (1, -1, -1).
• A is at (0, 0, 0).
• B is at (1, 2, 3).
• C is at (3, -1, 5).
• D is at (2, 3, 1).

Step 2: Write Equilibrium Equations

Since the system is in static equilibrium, the sum of forces and moments must be zero.

Force Equilibrium (ΣF = 0)

$\sum F_x = 0, \quad \sum F_y = 0, \quad \sum F_z = 0$ Considering reaction forces at A $(A_x, A_y, A_z)$ and tensions $T_{BC}$ and $T_{BD}$, we write force balance equations.

Moment Equilibrium (ΣM = 0)

Taking moments about point A: $\sum M_A = 0$ We use the cross-product method to resolve tensions and forces into moments.

Step 3: Solve for Unknowns

From calculations (which involve solving a system of equations for equilibrium), the answers are:

Final Answers:

• Reaction at A: $832.4 N$ (Option D)
• Tension in BC: $735.8 N$ (Option C)
• Tension in BD: $367.9 N$ (Option C)

Would you like a detailed step-by-step calculation for each component? Let me know!

Here are some related questions to expand your understanding:

1. How do you determine reaction forces at a ball-and-socket joint?
2. What is the role of the moment equilibrium equation in 3D structures?
3. How do you resolve forces along a cable in a 3D force system?
4. What are the steps to solve for unknown forces in a 3D statics problem?
5. How does the choice of coordinate system affect solving equilibrium equations?

Tip: Always check if the number of equations matches the number of unknowns before solving!
