Math Problem Statement

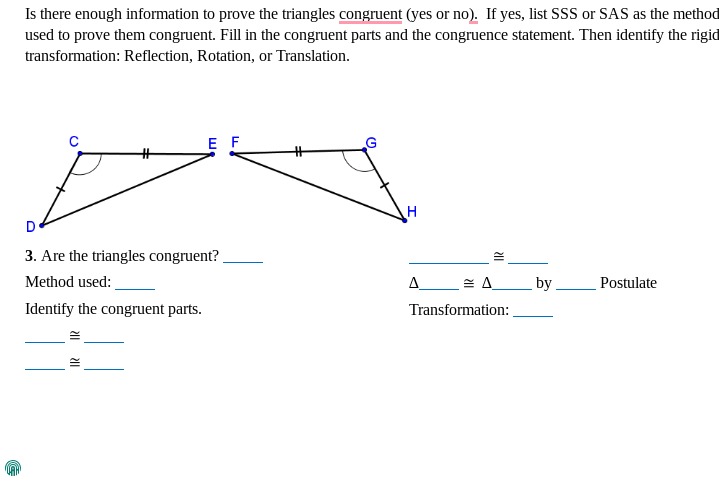

Is there enough information to prove the triangles are congruent? If yes, identify the method, congruent parts, and transformation type.

Solution

To analyze and solve this problem, let's go through the details visible in the image.

  1. Determine if the triangles are congruent: We have two triangles, CDE\triangle CDE and FGH\triangle FGH, which need to be checked for congruency.

  2. Identify the method for congruency:

    • From the diagram, we can see that:
      • Segment CE\overline{CE} is marked congruent to FG\overline{FG}.
      • Angle DCE\angle DCE is marked congruent to HFG\angle HFG.
      • Segment DE\overline{DE} is marked congruent to GH\overline{GH}.
    • Based on these congruent parts (two sides and the included angle), we can use the SAS (Side-Angle-Side) postulate to prove the triangles are congruent.
  3. Complete the congruency statement:

    • The congruent parts can be listed as:
      • CEFG\overline{CE} \cong \overline{FG}
      • DEGH\overline{DE} \cong \overline{GH}
      • DCEHFG\angle DCE \cong \angle HFG
    • Therefore, we can conclude CDEFGH\triangle CDE \cong \triangle FGH by the SAS Postulate.
  4. Identify the transformation: Since the triangles appear to be mirror images across the line between points EE and FF, the transformation that maps CDE\triangle CDE onto FGH\triangle FGH is a Reflection.

Final Answers:

  • Are the triangles congruent? Yes
  • Method used: SAS
  • Congruent parts:
    • CEFG\overline{CE} \cong \overline{FG}
    • DEGH\overline{DE} \cong \overline{GH}
    • DCEHFG\angle DCE \cong \angle HFG
  • Congruence statement: CDEFGH\triangle CDE \cong \triangle FGH
  • Transformation: Reflection

Would you like more detailed explanations on each step or have any questions?


Here are five related questions that might expand on this content:

  1. What are the other triangle congruence postulates besides SAS, and when are they used?
  2. How can you determine if a transformation is a rotation, reflection, or translation based on a figure?
  3. Can triangles still be congruent if only two sides and a non-included angle are known to be equal?
  4. How would the answer change if the marked angles were not included between the two congruent sides?
  5. In which situations would a translation be the correct transformation for congruent figures?

Tip: Always verify the location of the angle in congruency statements; the included angle is essential for the SAS postulate.
