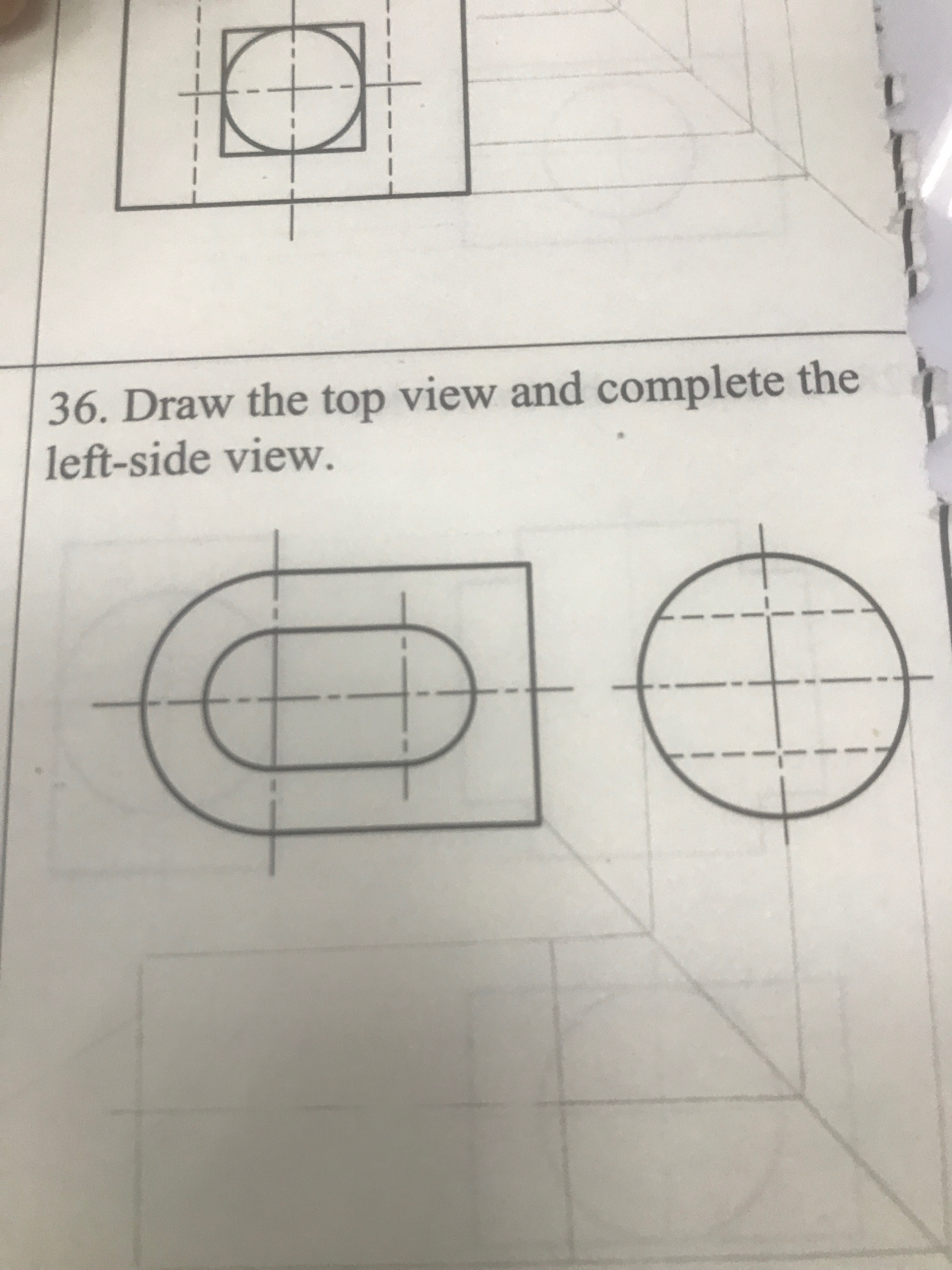

The task in this problem is to create the top view and complete the left-side view based on the given front view. Here is how to approach it:

Step-by-Step Solution

1. Identify the Shapes and Projections:

   • The front view shows an outline with a combination of a rectangle and two semi-circles. This indicates a shape resembling a capsule or rounded rectangle.
   • The dashed lines suggest hidden edges or surfaces in the three-dimensional object.

2. Top View:

   • For the top view, imagine looking directly down on the object. You will likely see an oval shape, as the front view suggests a rounded rectangular structure.
   • Draw a rectangle with semi-circular ends from a top perspective, matching the overall width and length suggested by the front view.

3. Left-Side View:

   • The left-side view should show the circular profile since you would be looking from the side.
   • Draw a circle with the same diameter as indicated in the front view for the rounded part.
   • For the straight sections, draw vertical lines to indicate the flat sides of the object if visible.

Would you like a more detailed explanation or specific illustrations?

Follow-Up Questions

1. What are the steps to visualize different views from a 3D shape?
2. How do dashed lines help in interpreting hidden features in engineering drawings?
3. How can we determine the dimensions of different views from a single view?
4. Why are certain views like the top, front, and side chosen in engineering drawings?
5. How does perspective change the way shapes appear in different views?

Tip: When creating technical drawings, always try to visualize the 3D shape mentally or sketch a quick 3D representation to understand all hidden and visible surfaces.
