Math Problem Statement

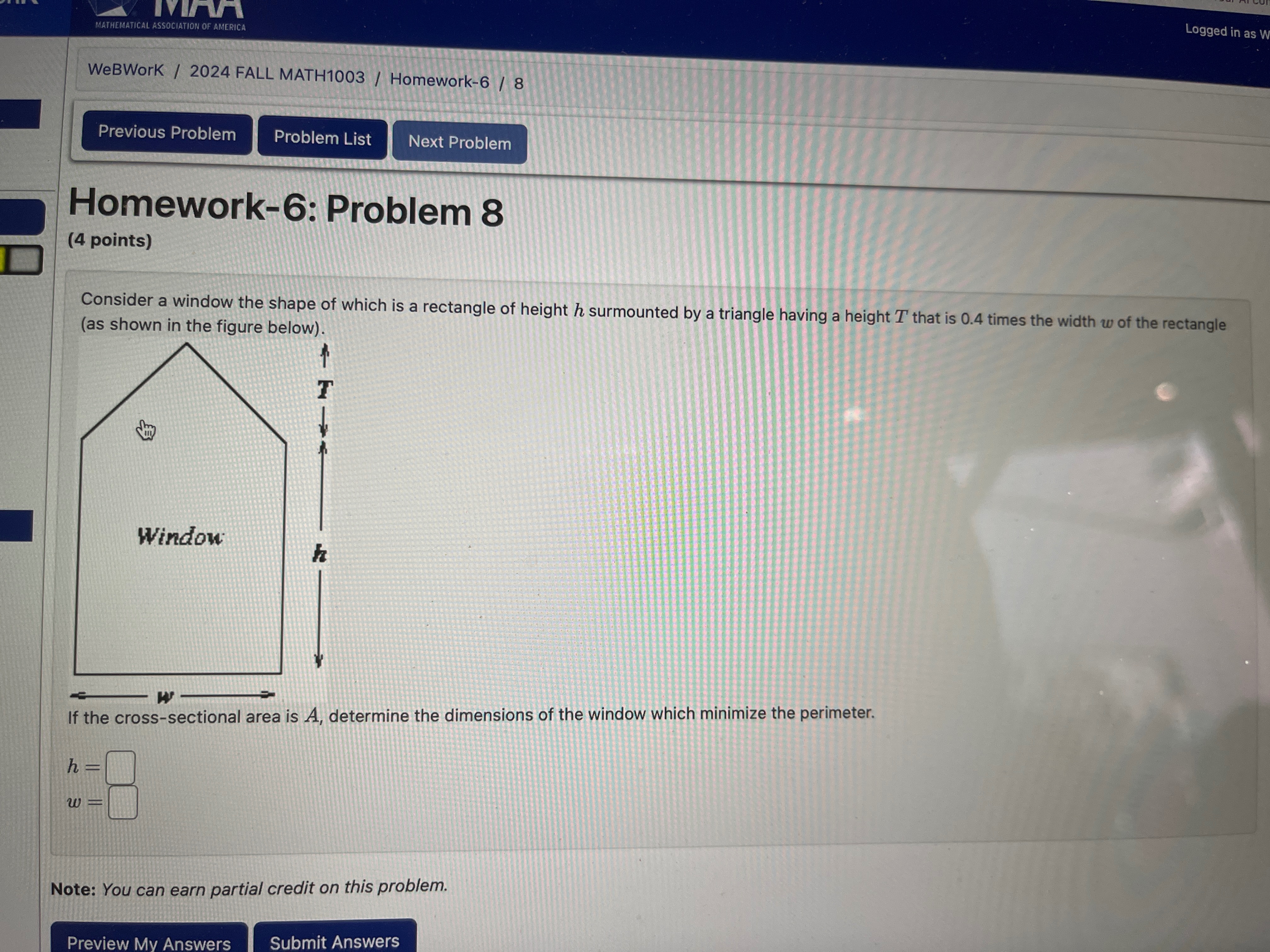

Consider a window the shape of which is a rectangle of height h surmounted by a triangle having a height T that is 0.4 times the width w of the rectangle. If the cross-sectional area is A, determine the dimensions of the window which minimize the perimeter.

Solution

This problem requires finding the dimensions hh (height of the rectangle) and ww (width of the rectangle) that minimize the perimeter of the window, given that:

  1. The cross-sectional area is fixed at AA.
  2. The window consists of a rectangle with height hh and width ww, surmounted by a triangle with height T=0.4wT = 0.4w (0.4 times the width of the rectangle).

Step-by-Step Solution:

Step 1: Cross-sectional Area

The total area AA consists of the rectangle's area and the triangular area: A=Area of rectangle+Area of triangleA = \text{Area of rectangle} + \text{Area of triangle} A=hw+12wTA = h \cdot w + \frac{1}{2} \cdot w \cdot T Substitute T=0.4wT = 0.4w: A=hw+12w(0.4w)A = h \cdot w + \frac{1}{2} \cdot w \cdot (0.4w) A=hw+0.2w2A = h \cdot w + 0.2w^2

Step 2: Perimeter of the Window

The perimeter consists of:

  1. Two vertical sides of length hh,
  2. The base of the rectangle ww,
  3. The two slanted sides of the triangle.

The slanted sides of the triangle are calculated using the Pythagorean theorem: Length of one slanted side=(w2)2+T2\text{Length of one slanted side} = \sqrt{\left(\frac{w}{2}\right)^2 + T^2} Substitute T=0.4wT = 0.4w: Length of one slanted side=(w2)2+(0.4w)2=w24+0.16w2=0.41w2=0.64w\text{Length of one slanted side} = \sqrt{\left(\frac{w}{2}\right)^2 + (0.4w)^2} = \sqrt{\frac{w^2}{4} + 0.16w^2} = \sqrt{0.41w^2} = 0.64w

Thus, the total perimeter PP is: P=2h+w+2(0.64w)P = 2h + w + 2(0.64w) P=2h+2.28wP = 2h + 2.28w

Step 3: Minimize Perimeter

To minimize the perimeter PP, we substitute hh in terms of ww and AA using the area equation: A=hw+0.2w2A = h \cdot w + 0.2w^2 Solve for hh: h=A0.2w2wh = \frac{A - 0.2w^2}{w}

Substitute hh into PP: P=2(A0.2w2w)+2.28wP = 2\left(\frac{A - 0.2w^2}{w}\right) + 2.28w P=2(A0.2w2)w+2.28wP = \frac{2(A - 0.2w^2)}{w} + 2.28w P=2Aw0.4w+2.28wP = \frac{2A}{w} - 0.4w + 2.28w P=2Aw+1.88wP = \frac{2A}{w} + 1.88w

Step 4: Differentiate and Solve

To find the ww that minimizes PP, take the derivative of PP with respect to ww: dPdw=2Aw2+1.88\frac{dP}{dw} = -\frac{2A}{w^2} + 1.88 Set dPdw=0\frac{dP}{dw} = 0 to find critical points: 2Aw2+1.88=0-\frac{2A}{w^2} + 1.88 = 0 2Aw2=1.88\frac{2A}{w^2} = 1.88 w2=2A1.88w^2 = \frac{2A}{1.88} w=2A1.88w = \sqrt{\frac{2A}{1.88}}

Step 5: Calculate hh

Substitute ww into the equation for hh: h=A0.2w2wh = \frac{A - 0.2w^2}{w}

Final Dimensions

  1. Compute w=2A1.88w = \sqrt{\frac{2A}{1.88}}.
  2. Compute h=A0.2w2wh = \frac{A - 0.2w^2}{w}.

Would you like me to proceed with a specific value for AA, or should I summarize the process further?
