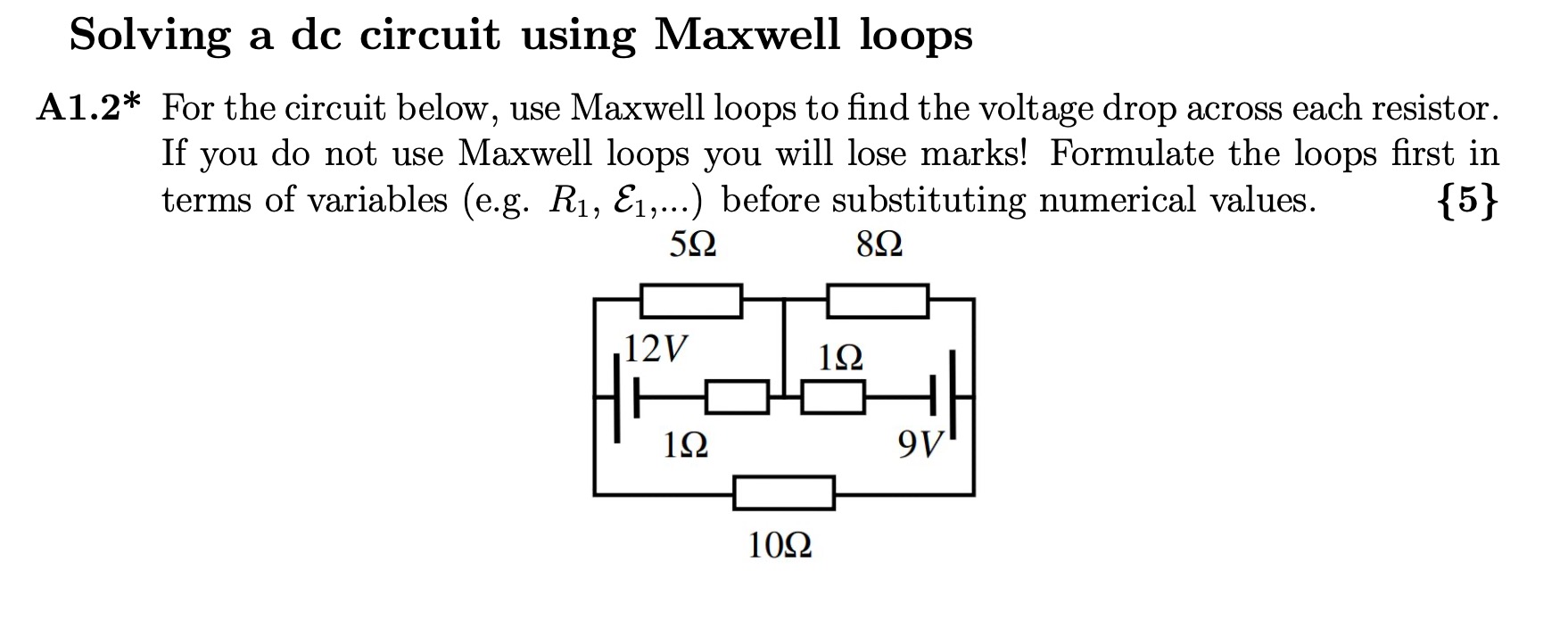

To solve this circuit using Maxwell's loop (mesh) analysis, follow these steps:

Step 1: Define Loop Currents

Let's define three loop currents:

• $I_1$ for the left loop
• $I_2$ for the right loop
• $I_3$ for the bottom loop

Step 2: Apply Kirchhoff’s Voltage Law (KVL)

Each loop equation is formed by summing voltage drops across resistors and equating it to the net voltage sources in the loop.

Loop 1 (Left loop)

• Components: $12V$ battery, $1\Omega$, $5\Omega$, shared $1\Omega$
• KVL equation: $12V - 1(I_1 - I_3) - 5I_1 - 1(I_1 - I_2) = 0$ $12 - 1I_1 + 1I_3 - 5I_1 - 1I_1 + 1I_2 = 0$ $12 - 7I_1 + I_2 + I_3 = 0$

Loop 2 (Right loop)

• Components: $9V$ battery, $1\Omega$, $8\Omega$, shared $1\Omega$
• KVL equation: $-9V + 1(I_2 - I_1) + 8I_2 + 1(I_2 - I_3) = 0$ $-9 + 1I_2 - 1I_1 + 8I_2 + 1I_2 - 1I_3 = 0$ $-9 - I_1 + 10I_2 - I_3 = 0$

Loop 3 (Bottom loop)

• Components: $1\Omega$ (shared), $10\Omega$, shared $1\Omega$
• KVL equation: $1(I_3 - I_1) + 10I_3 + 1(I_3 - I_2) = 0$ $1I_3 - 1I_1 + 10I_3 + 1I_3 - 1I_2 = 0$ $-I_1 - I_2 + 12I_3 = 0$

Step 3: Solve the System of Equations

The equations are:

$7I_1 - I_2 - I_3 = 12$

$I_1 - 10I_2 + I_3 = 9$

$I_1 + I_2 - 12I_3 = 0$

Solve this system using substitution or matrix methods to find $I_1, I_2, I_3$, then calculate the voltage drops across each resistor using Ohm's law:
$V = IR$

Would you like me to solve for the actual currents? Let me know if you need a detailed step-by-step solution!
