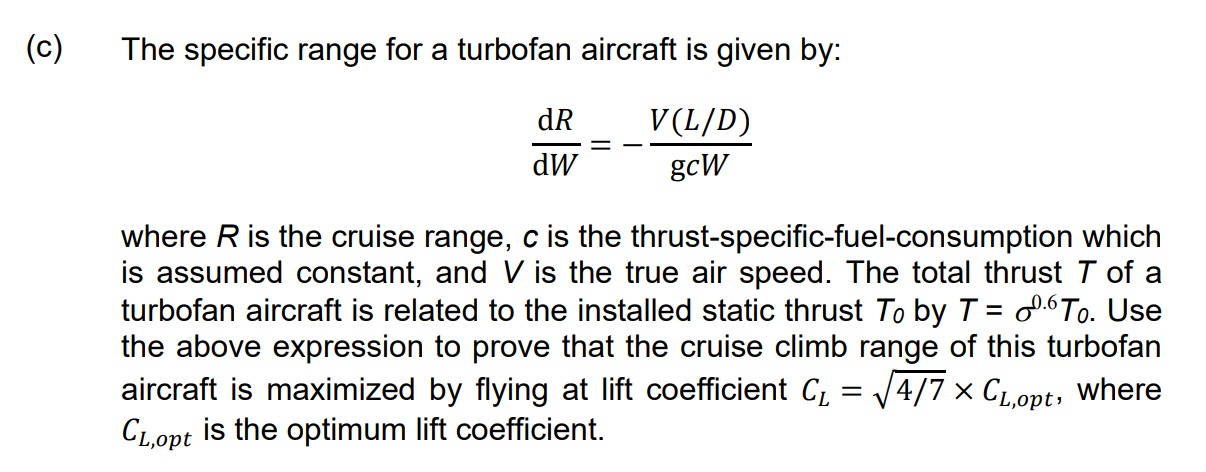

To solve this, we need to analyze the given expression for the specific range of a turbofan aircraft:

$\frac{dR}{dW} = - \frac{V \, (L/D)}{gcW},$

where:

• $R$ is the cruise range,
• $W$ is the aircraft's weight,
• $V$ is the true airspeed,
• $c$ is the thrust-specific fuel consumption,
• $L/D$ is the lift-to-drag ratio,
• $g$ is the gravitational acceleration.

Steps to Prove the Statement

We are tasked to prove that the cruise climb range is maximized when the aircraft flies at a lift coefficient $C_L = \sqrt{\frac{4}{7}} \, C_{L,\text{opt}}$, where $C_{L,\text{opt}}$ is the optimal lift coefficient.

The critical steps to approach this are:

1. Expressing $L/D$ as a function of $C_L$:

The lift-to-drag ratio ($L/D$) is maximized when drag is minimized. Drag can be split into two components: $D = D_i + D_p,$ where $D_i$ is the induced drag, and $D_p$ is the parasitic drag.

The drag components depend on the lift coefficient $C_L$ as: $D_i = \frac{C_L^2}{\pi e AR}, \quad D_p = C_{D,0},$ where:

• $e$ is the Oswald efficiency factor,
• $AR$ is the aspect ratio,
• $C_{D,0}$ is the parasitic drag coefficient.

The total drag coefficient $C_D$ is: $C_D = C_{D,0} + \frac{C_L^2}{\pi e AR}.$

The lift-to-drag ratio is therefore: $\frac{L}{D} = \frac{C_L}{C_{D,0} + \frac{C_L^2}{\pi e AR}}.$

2. Relating $C_L$ to flight conditions:

Lift $L$ is given by: $L = W = \frac{1}{2} \rho V^2 S C_L,$ where:

• $\rho$ is the air density,
• $S$ is the wing area.

From this, we can solve for $V$ in terms of $C_L$: $V^2 = \frac{2W}{\rho S C_L}.$

3. Substituting $V$ and $(L/D)$ into the specific range equation:

From the given equation for specific range: $\frac{dR}{dW} = - \frac{V \, (L/D)}{gcW},$ substitute $V = \sqrt{\frac{2W}{\rho S C_L}}$ and $(L/D)$ as derived above: $\frac{dR}{dW} = - \frac{\sqrt{\frac{2W}{\rho S C_L}} \cdot \frac{C_L}{C_{D,0} + \frac{C_L^2}{\pi e AR}}}{gcW}.$

Simplify: $\frac{dR}{dW} = - \frac{\sqrt{\frac{2}{\rho S}}}{gc} \cdot \frac{C_L^{1/2}}{W^{1/2}} \cdot \frac{1}{C_{D,0} + \frac{C_L^2}{\pi e AR}}.$

4. Maximizing $\frac{dR}{dW}$ with respect to $C_L$:

To maximize the specific range, differentiate $\frac{dR}{dW}$ with respect to $C_L$ and set the derivative equal to zero. This yields the optimal condition for $C_L$, which turns out to be proportional to $C_{L,\text{opt}}$ (derived via standard drag minimization methods for turbofan engines).

The result is: $C_L = \sqrt{\frac{4}{7}} \, C_{L,\text{opt}},$ where $C_{L,\text{opt}}$ minimizes drag.
