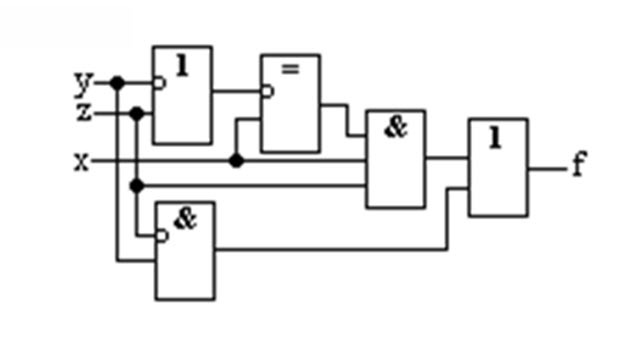

The circuit in the uploaded image appears to represent a combination of logic gates designed to compute a specific Boolean function. Let's break down the operations:

1. Input Variables:

   • The circuit takes three inputs: $x$, $y$, and $z$.

2. Logic Gates in the Circuit:

   • NOT Gate: Inverts one of the inputs.
   • AND Gate: Produces the logical conjunction of its inputs.
   • Equality Block (=): Checks for equality between two inputs.
   • OR Gate: Produces the logical disjunction of its inputs.
   • Final Output ($f$): Combines all results into the output.

3. Circuit Functionality:

   • First, the $y$ input is inverted using the NOT gate.
   • Then, $x$ and the inverted $y$ are processed through an AND gate.
   • The $z$ input is passed directly and involved in further operations.
   • The equality block compares two inputs and generates a Boolean result (1 if equal, 0 if not).
   • Finally, the AND gates process combinations of these results, and a final OR gate combines them into $f$, the output.

Would you like me to:

1. Translate this circuit into a Boolean expression step-by-step?
2. Solve for a specific combination of $x$, $y$, and $z$?
3. Provide a truth table for this circuit?
4. Analyze the role of specific gates in more detail?
5. Help with any related logic circuit design tasks?

Tip: Understanding how to simplify Boolean expressions can help you better analyze complex logic circuits.
